ENERVEX Fan for Wood/Pellet/Coal Applications
Product Images

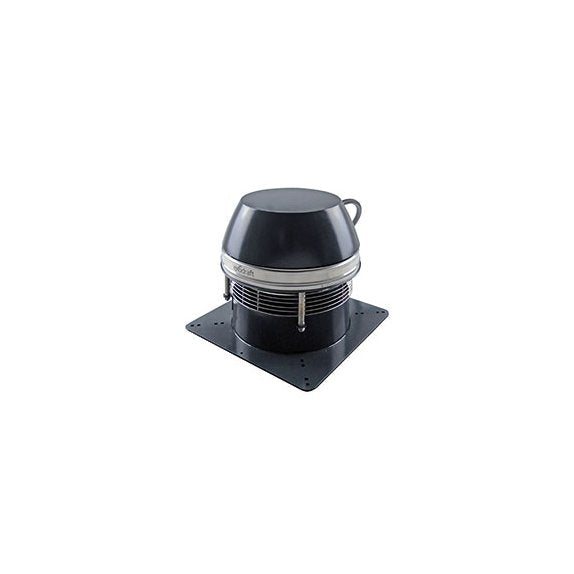

Enervex Fan for Solid Fuels

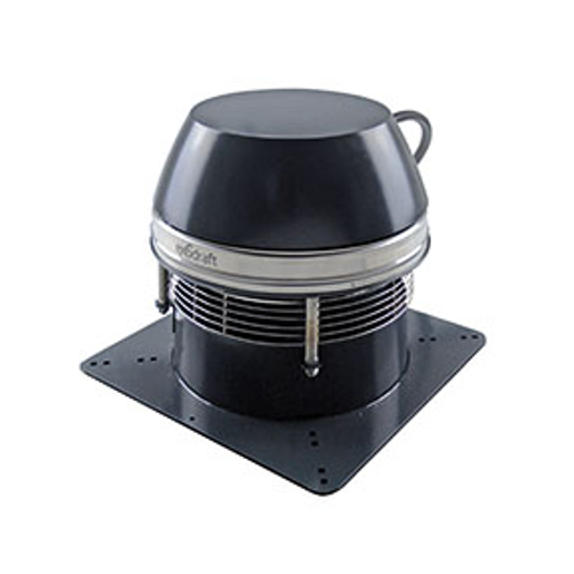

Enervex Fan for Solid Fuels
Enervex Fan Adapter
Product Details
Help & Documents
Options
Do you enjoy the ambiance and heat of a beautiful fire, but hate the smoke that fills the room? The Enervex Fan is the perfect, proven solution!
With the rising cost of energy, many homeowners are installing wood stoves or using their wood fireplace. Smoke is a common problem with stoves and fireplaces, which is the result of poor chimney ventilation. In any event, a perfect fire needs a perfect draft. Most important, the ENERVEX Fan offers the ultimate solution to fireplace smoke.
Applications: Solid fuel applications - Wood, Pellet, Coal, Etc.
How the Enervex Fan Works
Enervex Fans are specially designed to work with wood stove and fireplace chimneys, in order to pull smoke and odor from the room. The fan is mounted on top of the chimney and offers variable speed features, which provides the right amount of draft when it's needed.
The fan is mounted on top of chimney, out of sight, and it not only provides optimal airflow but also eliminates fireplace smoke forever. When the fireplace is not in use, the fan can be used as a ventilator and can control dust when removing ashes from the fireplace.
Features
Enervex Fans are UL-listed, powerful, efficient, and very quiet. Additionally, the motor is completely enclosed and maintenance free with air-cooled, pre-lubricated, sealed ball bearings. It comes with a pre-wired junction box, a bird screen, and a speed motor control.
With the motor speed control, easily adjust the speed of the fan from the room where you have the fireplace. Moreover, it also doubles as a ventilator: turn it on when you need to refresh the air in the room, and the fan will pull out stale odors and cigarette smoke.
The Enervex Fan is designed for minimum energy consumption, while using about as much energy as a regular light bulb. Made of premium cast aluminum and stainless steel.
- Quiet Operation
- Two year factory warranty; 10 year corrosion perforation warranty and a 6 month UNCONDITIONAL money back guarantee
- 110V energy efficient and maintenance free motor consumes energy equivalent to a standard light bulb.
- Easy, no-mess installation
- Use for wood, pellet or coal appliances (Gas/Oil burning model available also)
- The compact design of the fan makes it barely visible from ground level. However, recessing or hiding the fan behind caps, shrouds, cupolas is possible
- Available in four sizes
- For use where flue gas temperatures do not exceed 1400 Degrees F (intermittent) and 1000 Degrees F (continuous operation)
Sizing and Measurements
Our Enervex Fans are available in four sizes to fit most chimneys. Equally important, we make it easy to size, simply use the calculator at the top of this page to calculate which size fan to order.
Note, the Steel Chimney Adapter is recommended for Class A installations.
| Model | RSHT9 | RSHT12 | RSHT14 | RSHT16 |
|---|---|---|---|---|
| Width | 11.7" | 14.3" | 16.6" | 18.8" |
| Length | 11.7" | 14.3" | 16.6" | 18.8" |
| Height | 11.7" | 12.8" | 14.6" | 15.7" |
| Weight | 25 lbs. | 33 lbs. | 42 lbs. | 47 lbs. |
| CFM | 450 | 950 | 1400 | 1950 |
Enervex Fan Warranty
2 Year Factory Warranty - Will replace or repair any part or parts due to defect in material or workmanship, without a charge for parts and labor, for the first 2 years from day of installation. However, will not cover re-installation fees.
10 Year Corrosion Perforation Warranty - For the person of purchase, will replace or repair any part or parts at manufacturer's discretion, which are due to corrosion, for the first 10 years from day of installation. However, will not cover re-installation fees.
6 Month Performance Guarantee - Allows customer a full refund if doesn't meet satisfaction. However, will not cover shipping charges or dismantling charges.
Product Details:
Do you enjoy the ambiance and heat of a beautiful fire, but hate the smoke that fills the room? The Enervex Fan is the perfect, proven solution!
With the rising cost of energy, many homeowners are installing wood stoves or using their wood fireplace. Smoke is a common problem with stoves and fireplaces, which is the result of poor chimney ventilation. In any event, a perfect fire needs a perfect draft. Most important, the ENERVEX Fan offers the ultimate solution to fireplace smoke.
Applications: Solid fuel applications - Wood, Pellet, Coal, Etc.
How the Enervex Fan Works
Enervex Fans are specially designed to work with wood stove and fireplace chimneys, in order to pull smoke and odor from the room. The fan is mounted on top of the chimney and offers variable speed features, which provides the right amount of draft when it's needed.
The fan is mounted on top of chimney, out of sight, and it not only provides optimal airflow but also eliminates fireplace smoke forever. When the fireplace is not in use, the fan can be used as a ventilator and can control dust when removing ashes from the fireplace.
Features
Enervex Fans are UL-listed, powerful, efficient, and very quiet. Additionally, the motor is completely enclosed and maintenance free with air-cooled, pre-lubricated, sealed ball bearings. It comes with a pre-wired junction box, a bird screen, and a speed motor control.
With the motor speed control, easily adjust the speed of the fan from the room where you have the fireplace. Moreover, it also doubles as a ventilator: turn it on when you need to refresh the air in the room, and the fan will pull out stale odors and cigarette smoke.
The Enervex Fan is designed for minimum energy consumption, while using about as much energy as a regular light bulb. Made of premium cast aluminum and stainless steel.
- Quiet Operation
- Two year factory warranty; 10 year corrosion perforation warranty and a 6 month UNCONDITIONAL money back guarantee
- 110V energy efficient and maintenance free motor consumes energy equivalent to a standard light bulb.
- Easy, no-mess installation
- Use for wood, pellet or coal appliances (Gas/Oil burning model available also)
- The compact design of the fan makes it barely visible from ground level. However, recessing or hiding the fan behind caps, shrouds, cupolas is possible
- Available in four sizes
- For use where flue gas temperatures do not exceed 1400 Degrees F (intermittent) and 1000 Degrees F (continuous operation)
Sizing and Measurements
Our Enervex Fans are available in four sizes to fit most chimneys. Equally important, we make it easy to size, simply use the calculator at the top of this page to calculate which size fan to order.
Note, the Steel Chimney Adapter is recommended for Class A installations.
| Model | RSHT9 | RSHT12 | RSHT14 | RSHT16 |
|---|---|---|---|---|
| Width | 11.7" | 14.3" | 16.6" | 18.8" |
| Length | 11.7" | 14.3" | 16.6" | 18.8" |
| Height | 11.7" | 12.8" | 14.6" | 15.7" |
| Weight | 25 lbs. | 33 lbs. | 42 lbs. | 47 lbs. |
| CFM | 450 | 950 | 1400 | 1950 |
Enervex Fan Warranty
2 Year Factory Warranty - Will replace or repair any part or parts due to defect in material or workmanship, without a charge for parts and labor, for the first 2 years from day of installation. However, will not cover re-installation fees.
10 Year Corrosion Perforation Warranty - For the person of purchase, will replace or repair any part or parts at manufacturer's discretion, which are due to corrosion, for the first 10 years from day of installation. However, will not cover re-installation fees.
6 Month Performance Guarantee - Allows customer a full refund if doesn't meet satisfaction. However, will not cover shipping charges or dismantling charges.
