Century Heating FW2800 Wood Burning Stove
Product Images
Century Heating FW2800 Wood Burning Stove
Century Heating FW2800 Wood Burning Stove
Century Heating FW2800 Wood Burning Stove
Century Heating FW2800 Wood Burning Stove
Century Heating FW2800 Wood Burning Stove
Fresh Air Intake

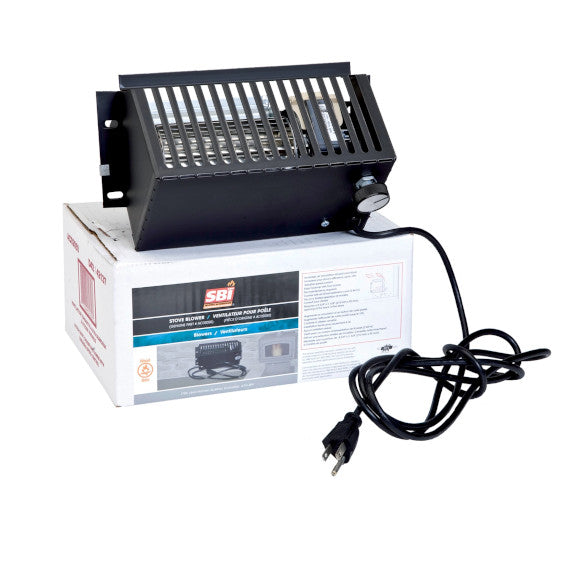

Blower Assembly

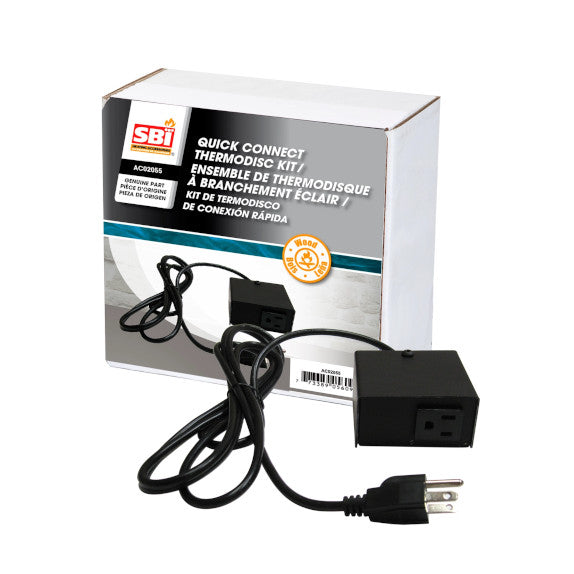

Quick Connect Thermodisc
Ash Drawer
Product Details
Specifications
Help & Documents
Options

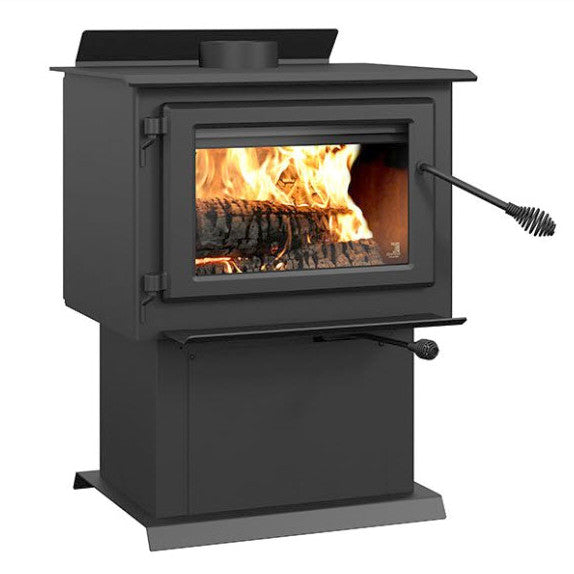

The Century Heating FW2800 Wood Burning Stove is a medium size wood stove that is uniquely affordable for its size. The FW2800 can heat up to 1800 square feet while producing up to 65,000 BTUs to warm up any home for up to 6 hours on one load of wood in the cold winter months. The 1.9 cubic ft firebox is capable of holding up to an 18" log. The simple design with a classic wood stove look includes a large viewing glass to enjoy the warmth and beauty of the fire.
The FW2800 is EPA approved with an easy to use non-catalytic secondary burn. An optional blower and thermodisc are available to help push the warmth of the stove across the room. An optional ash drawer is also available to easily clean out the stove. The Century Heating FW2800 is a great choice for a simple wood stove at a very affordable cost.
Features:
- Medium size firebox, ideal for tight spaces
- Included: pedestal, ash lip, air intake damper, rear air deflector and stainless steel heat shield
- Stainless steel top heat protector to extend the life of your appliance
- Cast iron door and ceramic glass
- EPA certified at 1.26 g/h
- Non-catalytic combustion system
- Included: Pedestal, ash lip, air intake damper, rear air deflector and stainless steel heat shield
Measuring for Your Century Heating FW2800
Stove Insert Measurement Guides
Installing Your New Wood Stove
Century Heating FW2800 Specifications |
|
| Alcove installation approved | Yes |
| Mobile home approved | Yes, with fresh air intake |
| Premium quality blower included (CFM) | Optional |
| Certified according to applicable standards | CAN/USA accredited laboratory |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6" |
| Chimney diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 15" |
| Overall dimension (Width) | 24 1/4" |
| Overall dimension (Depth) | 24 7/8" |
| Overall dimension (Height) | 32 3/8" |
| Door type | Single, glass with cast iron frame |
| Door opening size (Width) | 17 1/4" |
| Door opening size (Height) | 8" |
| Glass type | Ceramic glass |
| Glass surface - W x H | 14 7/8" x 9 1/4" |
| Firebox size (Width) | 19 5/8" |
| Firebox size (Height) | 11 7/8" |
| Firebox size (Depth) | 13 1/2" |
| Maximum log length | 18" (16" recommended) |
| Log positioning | Loading over width |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (safety) | UL 1482, UL 737 |
| Steel thickness-body | 3/16" |
| Steel thickness-top | 1/4" |
| Warranty | Limited 5 years |
| Shipping weight | 310 lb (141 kg) |
| Fuel type | Dry cordwood |
| Recommended heating area | 500 - 1,800 ft² |
| Overall firebox volume | 1.9 ft³ |
| EPA loading volume | 1.44 ft³ |
| Maximum burn time | 6 h |
| Maximum heat output-dry cordwood | 65,000 BTU/h (19 kW) |
| Minimum overall heat output rate | 15,650 BTU/h (4.6 kW) |
| Maximum overall heat output rate | 3,300 BTU/h (6.83 kW) |
| Average overall efficiency-dry cordwood (HHV) | 70% |
| Average overall efficiency-dry cordwood (LHV) | 75% |
| Optimum efficiency | 78% |
| Optimum heat transfer efficiency | 74% |
| Average particulate emission rate | 1.26 g/h |
| Average CO | 58 g/h |
Minimum Clearance to Combustibles:
| Canada | United States | |||
|---|---|---|---|---|
| Clearance to Combustibles* | Single Wall | Double Wall | Single Wall | Double Wall |
| Clearance - Back Wall | 14 1/2" | 7 1/2” | 13” | 7 1/2” |
| Clearance - Side Wall | 16" | 16” | 15” | 15” |
| Clearance - Corner | 12" | 12” | 12” | 12” |
| Clearance - Base of the unit to ceiling** | 84” | 84” | 84” | 84” |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||||
Product Details:
The Century Heating FW2800 Wood Burning Stove is a medium size wood stove that is uniquely affordable for its size. The FW2800 can heat up to 1800 square feet while producing up to 65,000 BTUs to warm up any home for up to 6 hours on one load of wood in the cold winter months. The 1.9 cubic ft firebox is capable of holding up to an 18" log. The simple design with a classic wood stove look includes a large viewing glass to enjoy the warmth and beauty of the fire.
The FW2800 is EPA approved with an easy to use non-catalytic secondary burn. An optional blower and thermodisc are available to help push the warmth of the stove across the room. An optional ash drawer is also available to easily clean out the stove. The Century Heating FW2800 is a great choice for a simple wood stove at a very affordable cost.
Features:
- Medium size firebox, ideal for tight spaces
- Included: pedestal, ash lip, air intake damper, rear air deflector and stainless steel heat shield
- Stainless steel top heat protector to extend the life of your appliance
- Cast iron door and ceramic glass
- EPA certified at 1.26 g/h
- Non-catalytic combustion system
- Included: Pedestal, ash lip, air intake damper, rear air deflector and stainless steel heat shield
Measuring for Your Century Heating FW2800
Stove Insert Measurement Guides
Installing Your New Wood Stove
Specifications:
Century Heating FW2800 Specifications |
|
| Alcove installation approved | Yes |
| Mobile home approved | Yes, with fresh air intake |
| Premium quality blower included (CFM) | Optional |
| Certified according to applicable standards | CAN/USA accredited laboratory |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6" |
| Chimney diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 15" |
| Overall dimension (Width) | 24 1/4" |
| Overall dimension (Depth) | 24 7/8" |
| Overall dimension (Height) | 32 3/8" |
| Door type | Single, glass with cast iron frame |
| Door opening size (Width) | 17 1/4" |
| Door opening size (Height) | 8" |
| Glass type | Ceramic glass |
| Glass surface - W x H | 14 7/8" x 9 1/4" |
| Firebox size (Width) | 19 5/8" |
| Firebox size (Height) | 11 7/8" |
| Firebox size (Depth) | 13 1/2" |
| Maximum log length | 18" (16" recommended) |
| Log positioning | Loading over width |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (safety) | UL 1482, UL 737 |
| Steel thickness-body | 3/16" |
| Steel thickness-top | 1/4" |
| Warranty | Limited 5 years |
| Shipping weight | 310 lb (141 kg) |
| Fuel type | Dry cordwood |
| Recommended heating area | 500 - 1,800 ft² |
| Overall firebox volume | 1.9 ft³ |
| EPA loading volume | 1.44 ft³ |
| Maximum burn time | 6 h |
| Maximum heat output-dry cordwood | 65,000 BTU/h (19 kW) |
| Minimum overall heat output rate | 15,650 BTU/h (4.6 kW) |
| Maximum overall heat output rate | 3,300 BTU/h (6.83 kW) |
| Average overall efficiency-dry cordwood (HHV) | 70% |
| Average overall efficiency-dry cordwood (LHV) | 75% |
| Optimum efficiency | 78% |
| Optimum heat transfer efficiency | 74% |
| Average particulate emission rate | 1.26 g/h |
| Average CO | 58 g/h |
Minimum Clearance to Combustibles:
| Canada | United States | |||
|---|---|---|---|---|
| Clearance to Combustibles* | Single Wall | Double Wall | Single Wall | Double Wall |
| Clearance - Back Wall | 14 1/2" | 7 1/2” | 13” | 7 1/2” |
| Clearance - Side Wall | 16" | 16” | 15” | 15” |
| Clearance - Corner | 12" | 12” | 12” | 12” |
| Clearance - Base of the unit to ceiling** | 84” | 84” | 84” | 84” |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||||
