Copper Top Mount Chimney Cap | Multi-Flue with Basic Lid
Product Images

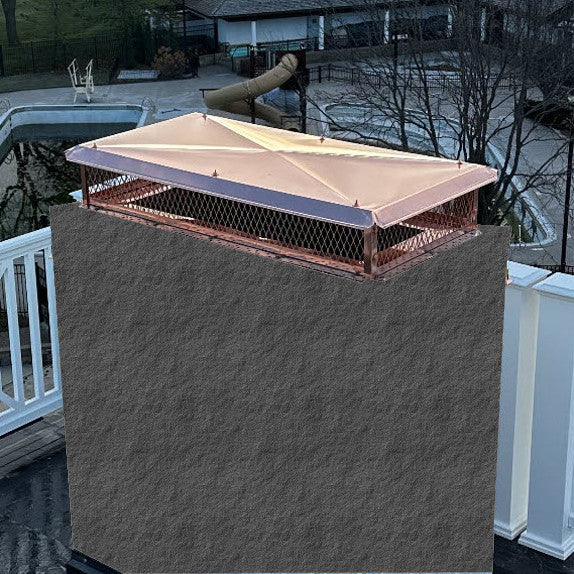

Copper Multi-Flue Cap with Basic Lid, Top Mount
Diagram of Chimney Cap
Copper Multi-Flue Cap with Basic Lid, Top Mount

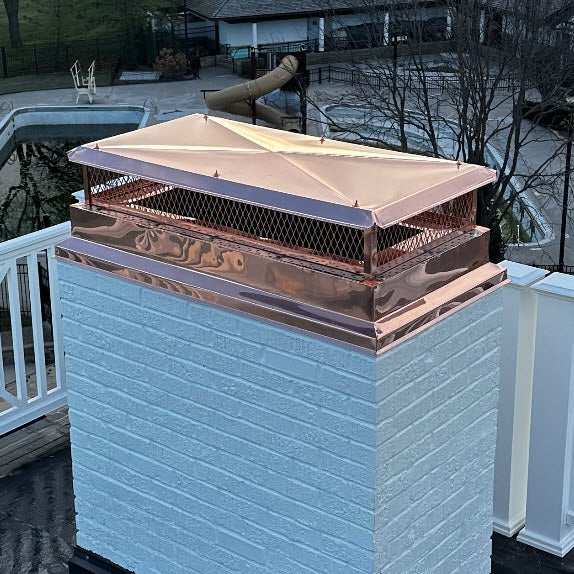

Top Mount Cap mounted to copper base (copper base sold separately)
Product Details
Specifications
The Copper Multi-Flue Cap with Basic Lid is the ultimate top mounting solution for chimney protection. Engineered with beauty and durability in mind, this copper chimney cap provides protection against rain, snow, critters, debris, and chimney deterioration.
Crafted with 16 oz. copper for easy installation, it features a top mount or outside mount design by utilizing the hinged mounting flange. Effortlessly attaches to the chimney crown or brick using chimney adhesive and masonry screws (included).
Removable lid for easy access to the chimney flues, so ultimately maintenance is a breeze. Features a lid overhang of 2" on all sides of the 3/4"mesh screen.
Installation
With a 1.5" wide hinged mounting flange, you will be able to easily install the copper top mount chimney cap. The hinged mounting flange provides flexibility. The hinge allows you to position the flange on either the outside or inside of the mesh screen.
To install, center the chimney cap onto the crown. Mark the hole positions in the base, typically you will need 4 - 8 screws for an average sized cap. Lift the mounting flange and add a bead of silicone underneath, firmly press flange into the silicone. Drill holes in the marked positions and drive the masonry screws into the crown.
Provide your measurements that you would like the mesh screen fabricated to for a perfect fit.
Why Choose Our Copper Top Mount Chimney Cap
Choose reliable protection and longevity with our copper chimney caps. Fabricated from high-quality 16 ounce copper. Ultimately, our top mount chimney caps are solid and built to last. Backed by a lifetime warranty and proudly made in the USA, you can trust in the superior craftsmanship and durability of our chimney caps.
Add beauty & curb appeal to your chimney by installing a real copper chimney cap that will patina over time.
Measuring for Your Copper Top Mount Chimney Cap
Measure your chimney to ensure a customized fit with these tips. Provide your exact measurements and we'll fabricate the mesh screen accordingly. In other words, the measurements you enter will be the size the mesh screen is fabricated to.
It is recommended that the height of the mesh screen be 6" higher than the tallest flue that extends above the chimney for proper ventilation.
For outside mount installations, please add at least 1/4" to the exact length and width measurements for a snug fit.
Note: Copper Multi-Flue Caps are made custom per order and are non-returnable. With a fabrication time of 2-3 weeks, your chimney protection solution is just around the corner.
Here are the things you need to measure when figuring out your copper chimney cap dimensions:
- Overall length for mesh screen
- Overall width for mesh screen
- Screen height (should be at least 6" higher than the tallest flue)
- Measuring Form (Printable PDF)
Product Details:
The Copper Multi-Flue Cap with Basic Lid is the ultimate top mounting solution for chimney protection. Engineered with beauty and durability in mind, this copper chimney cap provides protection against rain, snow, critters, debris, and chimney deterioration.
Crafted with 16 oz. copper for easy installation, it features a top mount or outside mount design by utilizing the hinged mounting flange. Effortlessly attaches to the chimney crown or brick using chimney adhesive and masonry screws (included).
Removable lid for easy access to the chimney flues, so ultimately maintenance is a breeze. Features a lid overhang of 2" on all sides of the 3/4"mesh screen.
Installation
With a 1.5" wide hinged mounting flange, you will be able to easily install the copper top mount chimney cap. The hinged mounting flange provides flexibility. The hinge allows you to position the flange on either the outside or inside of the mesh screen.
To install, center the chimney cap onto the crown. Mark the hole positions in the base, typically you will need 4 - 8 screws for an average sized cap. Lift the mounting flange and add a bead of silicone underneath, firmly press flange into the silicone. Drill holes in the marked positions and drive the masonry screws into the crown.
Provide your measurements that you would like the mesh screen fabricated to for a perfect fit.
Why Choose Our Copper Top Mount Chimney Cap
Choose reliable protection and longevity with our copper chimney caps. Fabricated from high-quality 16 ounce copper. Ultimately, our top mount chimney caps are solid and built to last. Backed by a lifetime warranty and proudly made in the USA, you can trust in the superior craftsmanship and durability of our chimney caps.
Add beauty & curb appeal to your chimney by installing a real copper chimney cap that will patina over time.
Measuring for Your Copper Top Mount Chimney Cap
Measure your chimney to ensure a customized fit with these tips. Provide your exact measurements and we'll fabricate the mesh screen accordingly. In other words, the measurements you enter will be the size the mesh screen is fabricated to.
It is recommended that the height of the mesh screen be 6" higher than the tallest flue that extends above the chimney for proper ventilation.
For outside mount installations, please add at least 1/4" to the exact length and width measurements for a snug fit.
Note: Copper Multi-Flue Caps are made custom per order and are non-returnable. With a fabrication time of 2-3 weeks, your chimney protection solution is just around the corner.
Here are the things you need to measure when figuring out your copper chimney cap dimensions:
- Overall length for mesh screen
- Overall width for mesh screen
- Screen height (should be at least 6" higher than the tallest flue)
- Measuring Form (Printable PDF)
