Copper WeatherShield Chimney Cap - Air Cooled
Product Images

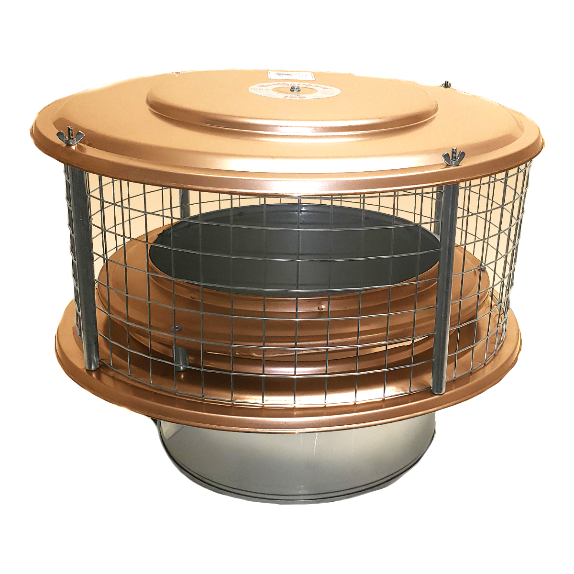

Copper WeatherShield Chimney Cap - Air Cooled
Product Details
Specifications
The Copper TDW WeatherShield chimney cap model assures a secure wind-resistant fit, without interfering with the convection cooling features of air-cooled chimneys. This universal, premier after-market copper chimney cap protects air cooled chimneys from adverse weather and keeps out debris & animals. An exclusive spring-tension connector assures a self-adjusting secure fit. The spring-tension connector enables TDW Copper WeatherShields to fit either DOUBLE or TRIPLE Wall Air-Cooled Chimneys. Features a 1" stainless steel mesh screen. Note: These are made custom per order and will add to processing time.
Sizing:
| Inside Flue Diameter | Lid Size Diameter |
|---|---|
| 5" | 16" |
| 6" | 16" |
| 7" | 16" |
| 8" | 16" |
| 9" | 16" |
| 10" | 16" |
| 11" | 19" |
| 12" | 19" |
SIZES: Custom sizes available up to 48". Please contact us for price, shipping time, and specifications.
CHIMNEY TYPES: Double wall or triple wall round, air cooled chimney pipe.
Adapt your WeatherShield chimney cap to any standard masonry flue using this adapter.
Installation Instructions:
Step 1: Note the Spacers. The three spacers located on the underside of the TDW Air Cooled Copper WeatherShield chimney cap maintain ventilation space between the bottom of the WeatherShield and top of the chimney. This is essential for uninterrupted air flow through cooling channels in air-cooled chimneys.
Step 2: Assembling the Copper WeatherShield. Move hoop upwards to vertical position and remove wing nut. Center the screen on the bottom plate. Position the top plate so screw at top of hoop passes through center hole of top plate. Secure with the wing nut as shown.
Step 3: Fitting the Copper WeatherShield inside the flue. WeatherShield chimney caps spring fit inside the round metal or masonry flue. Squeeze the bottom of the WeatherShield and push down into the flue to assure snug fit.
Step 4: Applying a Watertight Seal. Apply a thin layer of chimney silicone caulking to seal joint between WeatherShield and top of chimney. The chimney silicone is an optional add-on for this product. If you are installing on rectangle or square flues, please visit the masonry adapter page.
Product Overview Video:
Product Details:
The Copper TDW WeatherShield chimney cap model assures a secure wind-resistant fit, without interfering with the convection cooling features of air-cooled chimneys. This universal, premier after-market copper chimney cap protects air cooled chimneys from adverse weather and keeps out debris & animals. An exclusive spring-tension connector assures a self-adjusting secure fit. The spring-tension connector enables TDW Copper WeatherShields to fit either DOUBLE or TRIPLE Wall Air-Cooled Chimneys. Features a 1" stainless steel mesh screen. Note: These are made custom per order and will add to processing time.
Sizing:
| Inside Flue Diameter | Lid Size Diameter |
|---|---|
| 5" | 16" |
| 6" | 16" |
| 7" | 16" |
| 8" | 16" |
| 9" | 16" |
| 10" | 16" |
| 11" | 19" |
| 12" | 19" |
SIZES: Custom sizes available up to 48". Please contact us for price, shipping time, and specifications.
CHIMNEY TYPES: Double wall or triple wall round, air cooled chimney pipe.
Adapt your WeatherShield chimney cap to any standard masonry flue using this adapter.
Installation Instructions:
Step 1: Note the Spacers. The three spacers located on the underside of the TDW Air Cooled Copper WeatherShield chimney cap maintain ventilation space between the bottom of the WeatherShield and top of the chimney. This is essential for uninterrupted air flow through cooling channels in air-cooled chimneys.
Step 2: Assembling the Copper WeatherShield. Move hoop upwards to vertical position and remove wing nut. Center the screen on the bottom plate. Position the top plate so screw at top of hoop passes through center hole of top plate. Secure with the wing nut as shown.
Step 3: Fitting the Copper WeatherShield inside the flue. WeatherShield chimney caps spring fit inside the round metal or masonry flue. Squeeze the bottom of the WeatherShield and push down into the flue to assure snug fit.
Step 4: Applying a Watertight Seal. Apply a thin layer of chimney silicone caulking to seal joint between WeatherShield and top of chimney. The chimney silicone is an optional add-on for this product. If you are installing on rectangle or square flues, please visit the masonry adapter page.
Product Overview Video:
Specifications:
