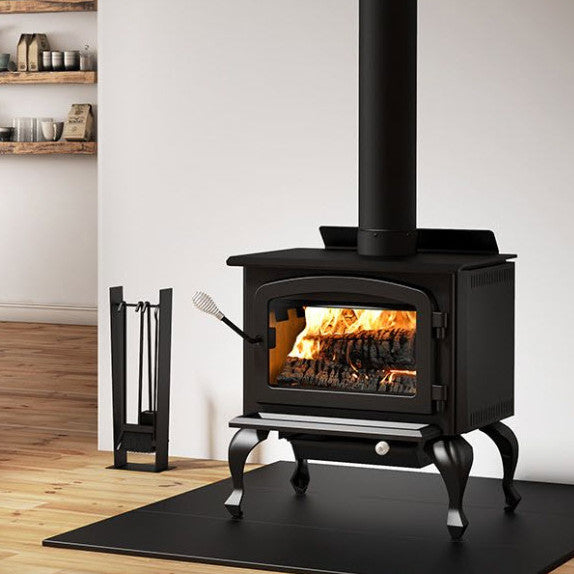

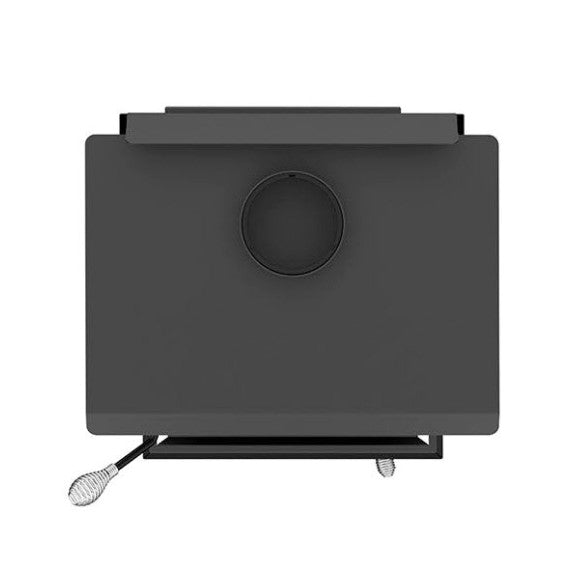

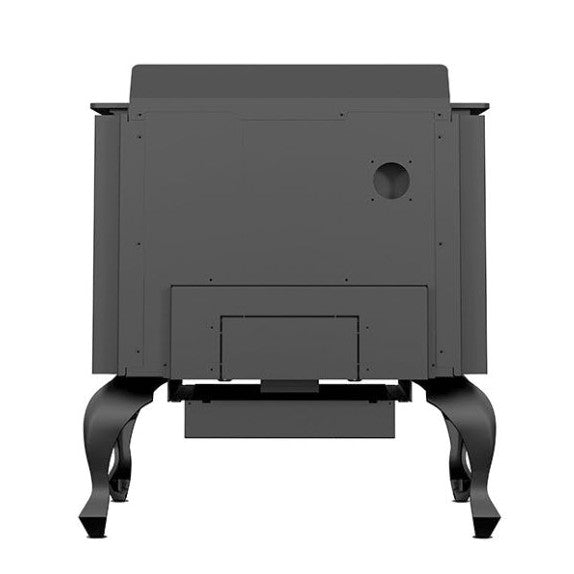

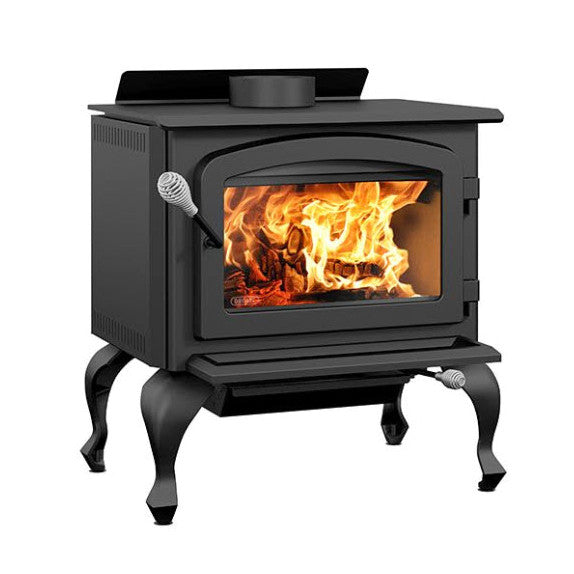

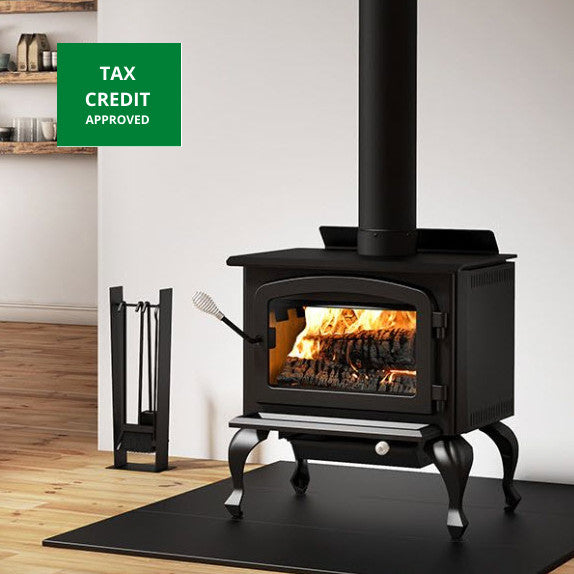

Drolet Columbia II Wood Burning Stove
Product Images
Drolet Columbia II Wood Burning Stove
Drolet Columbia II Wood Burning Stove
Drolet Columbia II Wood Burning Stove
Drolet Columbia II Wood Burning Stove
Drolet Columbia II Wood Burning Stove

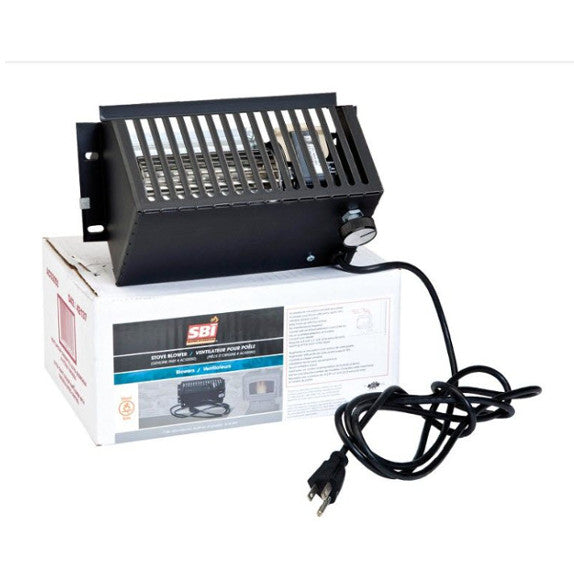

Blower Assembly
Quick Connect Thermodisc
5 in. Fresh Air Intake Kit
Product Details
Specifications
Help & Documents
Options
The Columbia II Wood Burning Stove is a medium size wood stove that can produce up to 65,000 BTUs and is able to heat up to 1,800 square feet. The 1.9 cubic foot firebox is able to hold up to a 18" log and offers a burn time of up to 6 hours. With an optimal efficiency of 78% the Columbia II wood stove is very efficient and clean burning.
The Columbia II wood stove only produces 1.26 g/h of emissions. The ornamental legs give the Columbia II an antique look with the performance of a modern wood stove. The top air deflector helps boost the movement of air throughout the room and an optional blower is available to increase the warm air movement even further. If you are looking for a simple yet elegant medium size wood stove the Columbia II is for you.
Features
- Up to 6 hours burn time
- Up to 18" logs
- 1.9 ft³ firebox
- Heavy duty 5/16" steel top reinforced with a stainless steel heat shield
- EPA certified
- Limited lifetime warranty
- Certified for mobile home and alcove installation
- Included: cast iron legs with ash drawer, top air deflector, ceramic glass, side panels, ash lip, air damper
Measuring for Your Drolet Columbia II
Stove Insert Measurement Guides
Installing Your New Wood Stove
Drolet Columbia II Wood Stove Specifications |
|
| Fuel Type | Dry cordwood (16" recommended) |
| Recommended heating area | 500 - 1,800 ft² |
| Overall firebox volume | 1.9 ft³ |
| EPA loading volume | 1.44 ft³ |
| Maximum burn time | 6 h |
| Maximum heat output-dry cordwood | 65,000 BTU/h (19kW) |
| Minimum overall heat output rate | 15,650 BTU/h (4.6 kW) |
| Maximum overall heat output rate | 23,300 BTU/h (6.83 kW) |
| Average overall efficiency-dry cordwood (HHV) | 70% |
| Average overall efficiency-dry cordwood (LHV) | 75% |
| Optimum efficiency | 78% |
| Optimum heat transfer efficiency | 75% |
| Average particulate emission rate | 1.26 g/h |
| Average CO | 58 g/h |
| Size | Medium |
| Alcove installation approved | Yes |
| Premium quality blower included (CFM) | Optional |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6” |
| Distance-center of the flue outlet to back unit | 7 1/2” |
| Distance-center of the flue outlet to side unit | 12 1/2” |
| Chimney diameter | 6” |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12’ |
| Overall dimension (Width) | 25 5/8” |
| Overall dimension (Height) | 29” |
| Overall dimension (Depth) | 25 1/8” |
| Door Type | Single, glass with cast iron frame |
| Door opening size (Width) | 17 1/4” |
| Door opening size (Height) | 8” |
| Glass Type | Ceramic Glass |
| Glass surface - W x H | 15 3/4" x 9 3/4" |
| Firebox size (Width) | 19 5/8” |
| Firebox size (Height) | 11 7/8” |
| Firebox size (Depth) | 13 1/2” |
| Maximum log length | 18” |
| Log positioning | Loading over width |
| Firebox lined with refractory bricks | Yes |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (emissions) | EPA |
| USA Standard (safety) | UL 1482, UL 737 |
| Steel thickness-body | 3/16” |
| Steel thickness-top | 5/16” |
| Warranty | Limited Lifetime |
| Shipping Weight | 317 lb (144 kg) |
Minimum Clearance to Combustibles:
| USA | Canada | |||
|---|---|---|---|---|
| Clearance to Combustibles* | Single Wall | Double Wall | Single Wall | Double Wall |
| Clearance - Back Wall | 14 1/2" | 7 1/2” | 13” | 7 1/2” |
| Clearance - Side Wall | 10" | 10” | 10” | 10” |
| Clearance - Corner | 12" | 12” | 12” | 12” |
| Clearance - Base of the unit to ceiling** | 84” | 84” | 84” | 84” |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||||
Product Details:
The Columbia II Wood Burning Stove is a medium size wood stove that can produce up to 65,000 BTUs and is able to heat up to 1,800 square feet. The 1.9 cubic foot firebox is able to hold up to a 18" log and offers a burn time of up to 6 hours. With an optimal efficiency of 78% the Columbia II wood stove is very efficient and clean burning.
The Columbia II wood stove only produces 1.26 g/h of emissions. The ornamental legs give the Columbia II an antique look with the performance of a modern wood stove. The top air deflector helps boost the movement of air throughout the room and an optional blower is available to increase the warm air movement even further. If you are looking for a simple yet elegant medium size wood stove the Columbia II is for you.
Features
- Up to 6 hours burn time
- Up to 18" logs
- 1.9 ft³ firebox
- Heavy duty 5/16" steel top reinforced with a stainless steel heat shield
- EPA certified
- Limited lifetime warranty
- Certified for mobile home and alcove installation
- Included: cast iron legs with ash drawer, top air deflector, ceramic glass, side panels, ash lip, air damper
Measuring for Your Drolet Columbia II
Stove Insert Measurement Guides
Installing Your New Wood Stove
Specifications:
Drolet Columbia II Wood Stove Specifications |
|
| Fuel Type | Dry cordwood (16" recommended) |
| Recommended heating area | 500 - 1,800 ft² |
| Overall firebox volume | 1.9 ft³ |
| EPA loading volume | 1.44 ft³ |
| Maximum burn time | 6 h |
| Maximum heat output-dry cordwood | 65,000 BTU/h (19kW) |
| Minimum overall heat output rate | 15,650 BTU/h (4.6 kW) |
| Maximum overall heat output rate | 23,300 BTU/h (6.83 kW) |
| Average overall efficiency-dry cordwood (HHV) | 70% |
| Average overall efficiency-dry cordwood (LHV) | 75% |
| Optimum efficiency | 78% |
| Optimum heat transfer efficiency | 75% |
| Average particulate emission rate | 1.26 g/h |
| Average CO | 58 g/h |
| Size | Medium |
| Alcove installation approved | Yes |
| Premium quality blower included (CFM) | Optional |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6” |
| Distance-center of the flue outlet to back unit | 7 1/2” |
| Distance-center of the flue outlet to side unit | 12 1/2” |
| Chimney diameter | 6” |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12’ |
| Overall dimension (Width) | 25 5/8” |
| Overall dimension (Height) | 29” |
| Overall dimension (Depth) | 25 1/8” |
| Door Type | Single, glass with cast iron frame |
| Door opening size (Width) | 17 1/4” |
| Door opening size (Height) | 8” |
| Glass Type | Ceramic Glass |
| Glass surface - W x H | 15 3/4" x 9 3/4" |
| Firebox size (Width) | 19 5/8” |
| Firebox size (Height) | 11 7/8” |
| Firebox size (Depth) | 13 1/2” |
| Maximum log length | 18” |
| Log positioning | Loading over width |
| Firebox lined with refractory bricks | Yes |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (emissions) | EPA |
| USA Standard (safety) | UL 1482, UL 737 |
| Steel thickness-body | 3/16” |
| Steel thickness-top | 5/16” |
| Warranty | Limited Lifetime |
| Shipping Weight | 317 lb (144 kg) |
Minimum Clearance to Combustibles:
| USA | Canada | |||
|---|---|---|---|---|
| Clearance to Combustibles* | Single Wall | Double Wall | Single Wall | Double Wall |
| Clearance - Back Wall | 14 1/2" | 7 1/2” | 13” | 7 1/2” |
| Clearance - Side Wall | 10" | 10” | 10” | 10” |
| Clearance - Corner | 12" | 12” | 12” | 12” |
| Clearance - Base of the unit to ceiling** | 84” | 84” | 84” | 84” |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||||
