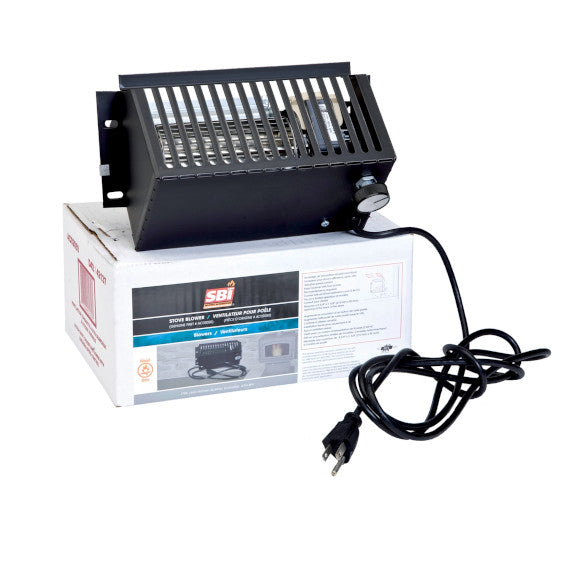

Blower Assembly with Variable Speed Control (Up To 100 CFM)
Quick Connect Thermodisc
5"Ø Fresh Air Intake Kit for Wood Stove on Pedestal
Product Details
Specifications
Help & Documents
Options
The Drolet Deco Alto offers the modern design features of the Deco Nano and Deco II wood stoves but has a much larger firebox and ability to heat much larger spaces. With a 2.4 cubic ft firebox the Deco Alto is able to accept up to a 20" log while producing up to 75,000 BTUs and heating up to 2,100 square ft. The Deco Alto is an EPA certified non-catalytic secondary combustion wood stove that has an impressive 8 hour burn time on one load of wood.
The taller than average height really stands out when you first see the Deco Alto wood stove. Traditionally most wood stoves of this size and class have a height between 30 and 32 inches tall. The Deco Alto towers above the rest with an overall height of 39 3/4". No need for a wood rack, the integrated storage under the firebox allows you to store the next few loads of wood without having to take up valuable floor space. The included ash drawer allows you to easily clean out the Deco Alto's firebox. An optional blower is available to help push the heat across a larger space.
If you are looking for a contemporary wood stove that is able to heat large spaces, the Drolet Deco Alto is for you. The Drolet Deco Alto qualifies for the wood and pellet stove tax credit through the end of 2032. See below for more details.
Features
- Up to 8 hours burn time
- Up to 20" logs
- 2.4 ft³ firebox
- Cast iron door with adjustable hinges and ceramic glass
- Heavy duty 5/16" steel top reinforced with a stainless steel heat shield
- EPA certified
- Proudly made in Canada
- Certified for mobile home and alcove installation
- This model qualifies for the US tax credit
Measuring for Your Drolet Deco Alto
Stove Insert Measurement Guides
Installing Your New Wood Stove
Drolet Deco Alto Wood Stove Specifications |
|
| Fuel Type | Dry cordwood (16" recommended) |
| Recommended heating area | 500 - 2,100 ft² |
| Overall firebox volume | 2.4 ft³ |
| EPA loading volume | 1.95 ft³ |
| Maximum burn time | 8 h |
| Maximum heat output-dry cordwood | 75,000 BTU/h (22 kW) |
| Minimum overall heat output rate | 14,200 BTU/h (4.16 kW) |
| Maximum overall heat output rate | 44,500 BTU/h (13.04 kW) |
| Average overall efficiency-dry cordwood (HHV) | 72% |
| Average overall efficiency-dry cordwood (LHV) | 77% |
| Optimum efficiency | 79% |
| Optimum heat transfer efficiency | 76% |
| Average particulate emission rate | 2.3g/h |
| Average CO | 69 g/h |
| Size | Large |
| Alcove installation approved | Yes |
| Mobile home approved | Yes, with fresh air intake |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
| Overall dimension (Width) | 25 5/8” |
| Overall dimension (Height) | 39 3/4” |
| Overall dimension (Depth) | 26 1/2" |
| Premium quality blower included (CFM) | Optional |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6” |
| Distance-center of the flue outlet to back unit | 7 3/8” |
| Distance-center of the flue outlet to side unit | 12 7/8” |
| Recommended Chimney diameter | 6” |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12’ |
| Door Type | Single, glass with cast iron frame |
| Door opening size (Width) | 17 1/2” |
| Door opening size (Height) | 9” |
| Glass Type | Ceramic Glass |
| Glass surface - W x H | 16 3/4" x 10 1/4" |
| Steel thickness-body | 3/16” |
| Steel thickness-top | 5/16” |
| Firebox size (Width) | 21” |
| Firebox size (Height) | 11 7/8” |
| Firebox size (Depth) | 16 1/2” |
| Maximum log length | 20” |
| Log positioning | Loading over width |
| Firebox lined with refractory bricks | Yes |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (safety) | UL 1482, UL 737 |
| Warranty | Limited Lifetime |
| Shipping Weight | 390 lb (177 kg) |
Minimum Clearance to Combustibles:
| Canada | United States | |||
|---|---|---|---|---|
| Clearance to Combustibles* | Single Wall | Double Wall | Single Wall | Double Wall |
| Clearance - Back Wall | 22" | 22” | 22” | 22” |
| Clearance - Side Wall | 12" | 12” | 12” | 12” |
| Clearance - Corner | 14 1/4" | 6” | 11” | 6” |
| Clearance - Base of the unit to ceiling** | 84” | 84” | 84” | 84” |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||||
