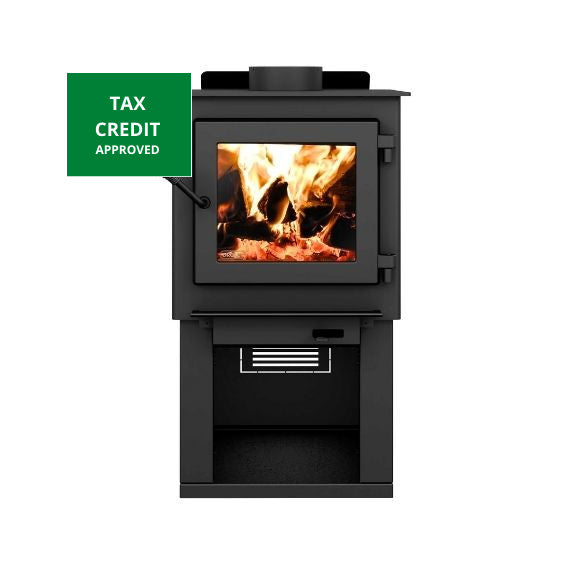

Drolet Deco Nano Wood Burning Stove
Product Images
Drolet Deco Nano Wood Burning Stove
Drolet Deco Nano Wood Burning Stove
Drolet Deco Nano Wood Burning Stove
Drolet Deco Nano Wood Burning Stove
Drolet Deco Nano Wood Burning Stove
Rigid Fire Screen

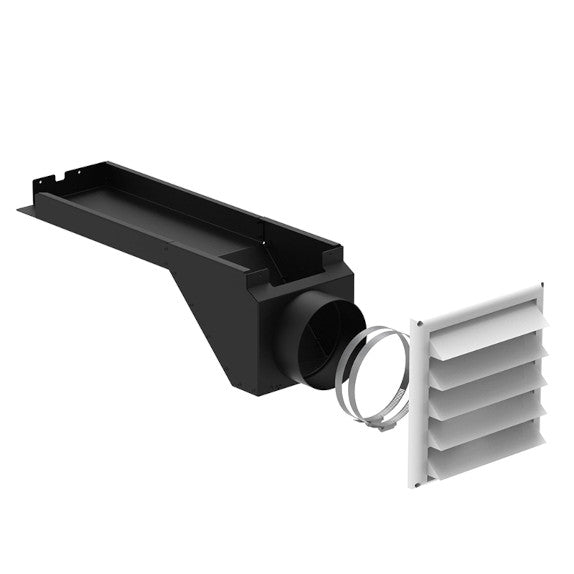

5 in. Ø Fresh Air Intake Kit For Wood Stove

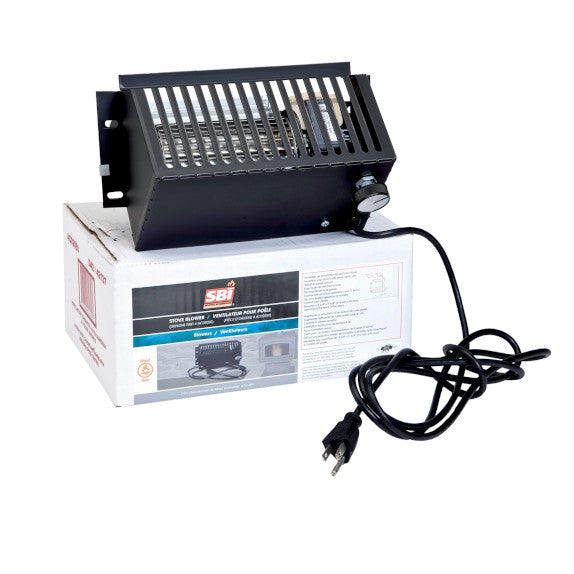

Blower Assembly

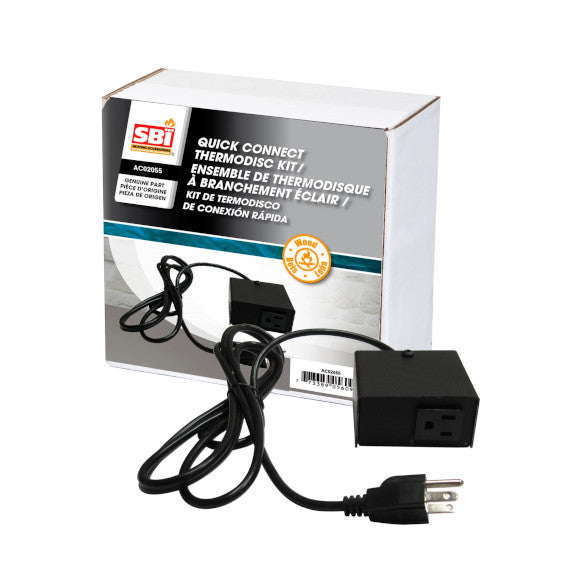

Quick Connect Thermodisc
Product Details
Specifications
Help & Documents
Options
The Drolet Deco Nano wood burning stove has a modern and contemporary design that sets it apart from any other wood stove in the industry. The Deco Nano is considered a small wood stove with a 1.55 cubic ft fire box but the taller than average height gives the appearance of a larger wood stove. It is also capable of comfortably heating smaller spaces between 250 and 1,200 square feet.
The convenient storage space under the firebox has room for the next few loads of wood, it is also a great space saver by eliminating the need for a wood rack next to the stove. Not only will the Deco Nano wood stove save you space in a smaller home, but will also produce up to 45,000 BTUs. It is capable of handling up to a 17" log while providing up to a 5 hour burn time on one load of wood. The bottom of the combustion chamber is deeper and lower than other stoves of its size which eliminates the need to constantly remove the ashes from the firebox.
The Deco Nano is a non-catalytic secondary combustion EPA certified wood stove with a low emissions rating of 1.8 g/h. An optional blower and thermodisc are available to help push the heat across the room. The Deco Nano is the perfect combination of modern design, performance and affordability. Let the Deco Nano wood burning stove stand tall and be the focal point of any room while enjoying the warmth it brings in the cold winter months. The Drolet Deco Nano qualifies for the wood and pellet stove tax credit through the end of 2032. See below for more details.
Features
- Up to 5 hours burn time
- Up to 17" logs
- 1.55 ft³ firebox
- EPA certified 1.8 g/h emissions rate
- Proudly made in Canada
- Limited lifetime warranty
- Certified for mobile home and alcove installation
- Weight : 281 lbs
- Wood Storage
Measuring for Your Drolet Deco Nano
Stove Insert Measurement Guides
Installing Your New Wood Stove
Video of Installing a Wood Burning Stove
Drolet Deco Nano Wood Stove Specifications |
|
| Fuel Type | Dry cordwood (16" recommended) |
| Recommended heating area | 250 - 1200 ft² |
| Overall firebox volume | 1.8 ft³ |
| EPA loading volume | 1.55 ft³ |
| Maximum burn time | 5 h |
| Maximum heat output-dry cordwood | 45,000 BTU/h (13.19 kW) |
| Minimum overall heat output rate | 12,124 BTU/h (3.55 kW) |
| Maximum overall heat output rate | 26,700 BTU/h (7.83 kW) |
| Average overall efficiency-dry cordwood (HHV) | 74% |
| Average overall efficiency-dry cordwood (LHV) | 79% |
| Optimum efficiency | 80% |
| Optimum heat transfer efficiency | 79% |
| Average particulate emission rate | 1.8 g/h |
| Average CO | 74 g/h |
| Size | Small |
| Alcove installation approved | Yes |
| Mobile home approved | Yes, with fresh air intake |
| Premium quality blower included (CFM) | Optional |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6” |
| Distance-center of the flue outlet to back unit | 6 5/8” |
| Distance-center of the flue outlet to side unit | 9 1/4” |
| Chimney diameter | 6” |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12’ |
| Overall dimension (Width) | 18 1/2” |
| Overall dimension (Depth) | 32 1/2" |
| Overall dimension (Height) | 29 1/8” |
| Door Type | Single, glass with cast iron frame |
| Door opening size (Width) | 12” |
| Door opening size (Height) | 7 5/8” |
| Glass Type | Ceramic Glass |
| Firebox size (Width) | 14 1/4” |
| Firebox size (Height) | 11 3/4” |
| Firebox size (Depth) | 19 1/8” |
| Maximum log length | 17” |
| Log positioning | Loading over depth |
| Firebox lined with refractory bricks | Yes |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (safety) | UL 1482, UL 737 |
| Steel thickness-body | 3/16” |
| Steel thickness-top | 1/4” |
| Warranty | Limited Lifetime |
| Shipping Weight | 281 lb (128 kg) |
Minimum Clearance to Combustibles:
| Canada | United States | |||
|---|---|---|---|---|
| Clearance to Combustibles* | Single Wall | Double Wall | Single Wall | Double Wall |
| Clearance - Back Wall | 14" | 6” | 12” | 6” |
| Clearance - Side Wall | 18" | 18” | 18” | 18” |
| Clearance - Corner | 11" | 7” | 11” | 7” |
| Clearance - Base of the unit to ceiling** | 84” | 84” | 84” | 84” |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||||
Product Details:
The Drolet Deco Nano wood burning stove has a modern and contemporary design that sets it apart from any other wood stove in the industry. The Deco Nano is considered a small wood stove with a 1.55 cubic ft fire box but the taller than average height gives the appearance of a larger wood stove. It is also capable of comfortably heating smaller spaces between 250 and 1,200 square feet.
The convenient storage space under the firebox has room for the next few loads of wood, it is also a great space saver by eliminating the need for a wood rack next to the stove. Not only will the Deco Nano wood stove save you space in a smaller home, but will also produce up to 45,000 BTUs. It is capable of handling up to a 17" log while providing up to a 5 hour burn time on one load of wood. The bottom of the combustion chamber is deeper and lower than other stoves of its size which eliminates the need to constantly remove the ashes from the firebox.
The Deco Nano is a non-catalytic secondary combustion EPA certified wood stove with a low emissions rating of 1.8 g/h. An optional blower and thermodisc are available to help push the heat across the room. The Deco Nano is the perfect combination of modern design, performance and affordability. Let the Deco Nano wood burning stove stand tall and be the focal point of any room while enjoying the warmth it brings in the cold winter months. The Drolet Deco Nano qualifies for the wood and pellet stove tax credit through the end of 2032. See below for more details.
Features
- Up to 5 hours burn time
- Up to 17" logs
- 1.55 ft³ firebox
- EPA certified 1.8 g/h emissions rate
- Proudly made in Canada
- Limited lifetime warranty
- Certified for mobile home and alcove installation
- Weight : 281 lbs
- Wood Storage
Measuring for Your Drolet Deco Nano
Stove Insert Measurement Guides
Installing Your New Wood Stove
Video of Installing a Wood Burning Stove
Specifications:
Drolet Deco Nano Wood Stove Specifications |
|
| Fuel Type | Dry cordwood (16" recommended) |
| Recommended heating area | 250 - 1200 ft² |
| Overall firebox volume | 1.8 ft³ |
| EPA loading volume | 1.55 ft³ |
| Maximum burn time | 5 h |
| Maximum heat output-dry cordwood | 45,000 BTU/h (13.19 kW) |
| Minimum overall heat output rate | 12,124 BTU/h (3.55 kW) |
| Maximum overall heat output rate | 26,700 BTU/h (7.83 kW) |
| Average overall efficiency-dry cordwood (HHV) | 74% |
| Average overall efficiency-dry cordwood (LHV) | 79% |
| Optimum efficiency | 80% |
| Optimum heat transfer efficiency | 79% |
| Average particulate emission rate | 1.8 g/h |
| Average CO | 74 g/h |
| Size | Small |
| Alcove installation approved | Yes |
| Mobile home approved | Yes, with fresh air intake |
| Premium quality blower included (CFM) | Optional |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6” |
| Distance-center of the flue outlet to back unit | 6 5/8” |
| Distance-center of the flue outlet to side unit | 9 1/4” |
| Chimney diameter | 6” |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12’ |
| Overall dimension (Width) | 18 1/2” |
| Overall dimension (Depth) | 32 1/2" |
| Overall dimension (Height) | 29 1/8” |
| Door Type | Single, glass with cast iron frame |
| Door opening size (Width) | 12” |
| Door opening size (Height) | 7 5/8” |
| Glass Type | Ceramic Glass |
| Firebox size (Width) | 14 1/4” |
| Firebox size (Height) | 11 3/4” |
| Firebox size (Depth) | 19 1/8” |
| Maximum log length | 17” |
| Log positioning | Loading over depth |
| Firebox lined with refractory bricks | Yes |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (safety) | UL 1482, UL 737 |
| Steel thickness-body | 3/16” |
| Steel thickness-top | 1/4” |
| Warranty | Limited Lifetime |
| Shipping Weight | 281 lb (128 kg) |
Minimum Clearance to Combustibles:
| Canada | United States | |||
|---|---|---|---|---|
| Clearance to Combustibles* | Single Wall | Double Wall | Single Wall | Double Wall |
| Clearance - Back Wall | 14" | 6” | 12” | 6” |
| Clearance - Side Wall | 18" | 18” | 18” | 18” |
| Clearance - Corner | 11" | 7” | 11” | 7” |
| Clearance - Base of the unit to ceiling** | 84” | 84” | 84” | 84” |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||||
