Drolet Escape 1800 Wood Stove
Product Images
Drolet Escape 1800 Wood Stove
Drolet Escape 1800 Wood Stove
Drolet Escape 1800 Wood Stove
Drolet Escape 1800 Wood Stove
Drolet Escape 1800 Wood Stove
Rigid Fire Screen
Blower With Variable Speed Control (UP TO 130 CFM)

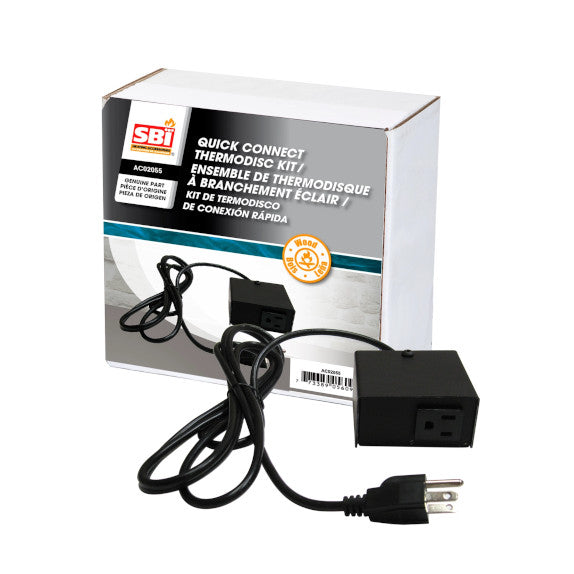

Quick Connect Thermodisc
5 in. Ø Fresh Air Intake Kit For Wood Stove On Pedestal
Product Details
Specifications
Help & Documents
Options
The Drolet Escape 1800 freestanding wood stove provides powerful heating capacity at an affordable price. This large wood stove is capable of producing up to 75,000 BTUs and is able to heat up to 2,100 square feet. The large 2.4 cubic ft firebox is able to hold up to a 20" log and has a burn time of up to 8 hours. This EPA certified wood stove has an optimum efficiency rating of 79% and has a low emissions rating of 2.3 g/h. The non-catalytic secondary combustion is easy to operate and easy to clean out.
The Escape 1800 is a pedestal model wood stove that is equipped with an ash drawer to conveniently clean out the firebox. No need to shovel the ashes out of the stove into an ash pan. Simply remove the ash plug on the floor of the firebox and push the ashes through the ash dump into the drawer. The simple and classic stove design is the perfect fit for any decor.
The large 16" x 9 1/4" glass door is sure to be the focal point when a fire is burning. A powerful optional 130 CFM blower is available to help push the heat across larger rooms. The Escape 1800 is equipped with a heat exchanger that redirects the heat to come through the front of the stove and side panels that reduce the stove's clearance to combustibles.
No bells, no whistles - the Drolet Escape 1800 is simply designed to generate powerful heat without breaking the bank. The Drolet Escape 1800 wood stove also qualifies for the wood and pellet stove tax credit through the end of 2032. See below for more details.
Features
- Up to 8 hours burn time
- Up to 20" logs
- 2.4 ft³ firebox
- Heavy duty 5/16" steel top reinforced with a stainless steel heat shield
- EPA certified
- Proudly made in Canada
- Limited lifetime warranty
- Certified for mobile home and alcove installation
- This model qualifies for the US tax credit
Measuring for Your Drolet Escape 1800
Stove Insert Measurement Guides
Installing Your New Wood Stove
Video of Installing a Wood Burning Stove
Drolet Escape 1800 Wood Stove Specifications |
|
| Fuel Type | Dry cordwood (16" recommended) |
| Recommended heating area | 500 - 2,100 ft² |
| Overall firebox volume | 2.4 ft³ |
| EPA loading volume | 2.02 ft³ |
| Maximum burn time | 8 h |
| Maximum heat output-dry cordwood | 75,000 BTU/h (22 kW) |
| Minimum overall heat output rate | 14,800 BTU/h (4.34 kW) |
| Maximum overall heat output rate | 28,600 BTU/h (8.38 kW) |
| Average overall efficiency-dry cordwood (HHV) | 69% |
| Average overall efficiency-dry cordwood (LHV) | 74% |
| Optimum efficiency | 77% |
| Optimum heat transfer efficiency | 75% |
| Average particulate emission rate | 1.54 g/h |
| Average CO | 89.4 g/h |
| Size | Large |
| Alcove installation approved | Yes |
| Premium quality blower included (CFM) | Optional |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6” |
| Distance-center of the flue outlet to back unit | 6 3/4” |
| Distance-center of the flue outlet to side unit | 12 7/8” |
| Chimney diameter | 6” |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12’ |
| Overall dimension (Width) | 25 5/8" |
| Overall dimension (Depth) | 32 5/8" |
| Overall dimension (Height) | 25 3/4" |
| Door Type | Single, glass with cast iron frame |
| Door opening size (Width) | 17 1/2" |
| Door opening size (Height) | 9” |
| Glass Type | Ceramic Glass |
| Glass surface - W x H | 16" x 9 1/4" |
| Firebox size (Width) | 21" |
| Firebox size (Height) | 12" |
| Firebox size (Depth) | 16 1/2" |
| Maximum log length | 20” |
| Log positioning | Loading over width |
| Firebox lined with refractory bricks | Yes |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (emissions) | EPA / ASTM WK47329 |
| USA Standard (safety) | UL 1482, UL 737 |
| Steel thickness-body | 3/16” |
| Steel thickness-top | 5/16” |
| Warranty | Limited Lifetime |
| Shipping Weight | 382 lb (173 kg) |
Minimum Clearance to Combustibles:
| Canada | United States | |||
|---|---|---|---|---|
| Clearance to Combustibles* | Single Wall | Double Wall | Single Wall | Double Wall |
| Clearance - Back Wall | 17" | 17” | 16” | 16” |
| Clearance - Side Wall | 10" | 7” | 10” | 7” |
| Clearance - Corner | 14 1/2" | 6” | 11” | 6” |
| Clearance - Base of the unit to ceiling** | 84” | 84” | 84” | 84” |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||||
Product Details:
The Drolet Escape 1800 freestanding wood stove provides powerful heating capacity at an affordable price. This large wood stove is capable of producing up to 75,000 BTUs and is able to heat up to 2,100 square feet. The large 2.4 cubic ft firebox is able to hold up to a 20" log and has a burn time of up to 8 hours. This EPA certified wood stove has an optimum efficiency rating of 79% and has a low emissions rating of 2.3 g/h. The non-catalytic secondary combustion is easy to operate and easy to clean out.
The Escape 1800 is a pedestal model wood stove that is equipped with an ash drawer to conveniently clean out the firebox. No need to shovel the ashes out of the stove into an ash pan. Simply remove the ash plug on the floor of the firebox and push the ashes through the ash dump into the drawer. The simple and classic stove design is the perfect fit for any decor.
The large 16" x 9 1/4" glass door is sure to be the focal point when a fire is burning. A powerful optional 130 CFM blower is available to help push the heat across larger rooms. The Escape 1800 is equipped with a heat exchanger that redirects the heat to come through the front of the stove and side panels that reduce the stove's clearance to combustibles.
No bells, no whistles - the Drolet Escape 1800 is simply designed to generate powerful heat without breaking the bank. The Drolet Escape 1800 wood stove also qualifies for the wood and pellet stove tax credit through the end of 2032. See below for more details.
Features
- Up to 8 hours burn time
- Up to 20" logs
- 2.4 ft³ firebox
- Heavy duty 5/16" steel top reinforced with a stainless steel heat shield
- EPA certified
- Proudly made in Canada
- Limited lifetime warranty
- Certified for mobile home and alcove installation
- This model qualifies for the US tax credit
Measuring for Your Drolet Escape 1800
Stove Insert Measurement Guides
Installing Your New Wood Stove
Video of Installing a Wood Burning Stove
Specifications:
Drolet Escape 1800 Wood Stove Specifications |
|
| Fuel Type | Dry cordwood (16" recommended) |
| Recommended heating area | 500 - 2,100 ft² |
| Overall firebox volume | 2.4 ft³ |
| EPA loading volume | 2.02 ft³ |
| Maximum burn time | 8 h |
| Maximum heat output-dry cordwood | 75,000 BTU/h (22 kW) |
| Minimum overall heat output rate | 14,800 BTU/h (4.34 kW) |
| Maximum overall heat output rate | 28,600 BTU/h (8.38 kW) |
| Average overall efficiency-dry cordwood (HHV) | 69% |
| Average overall efficiency-dry cordwood (LHV) | 74% |
| Optimum efficiency | 77% |
| Optimum heat transfer efficiency | 75% |
| Average particulate emission rate | 1.54 g/h |
| Average CO | 89.4 g/h |
| Size | Large |
| Alcove installation approved | Yes |
| Premium quality blower included (CFM) | Optional |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6” |
| Distance-center of the flue outlet to back unit | 6 3/4” |
| Distance-center of the flue outlet to side unit | 12 7/8” |
| Chimney diameter | 6” |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12’ |
| Overall dimension (Width) | 25 5/8" |
| Overall dimension (Depth) | 32 5/8" |
| Overall dimension (Height) | 25 3/4" |
| Door Type | Single, glass with cast iron frame |
| Door opening size (Width) | 17 1/2" |
| Door opening size (Height) | 9” |
| Glass Type | Ceramic Glass |
| Glass surface - W x H | 16" x 9 1/4" |
| Firebox size (Width) | 21" |
| Firebox size (Height) | 12" |
| Firebox size (Depth) | 16 1/2" |
| Maximum log length | 20” |
| Log positioning | Loading over width |
| Firebox lined with refractory bricks | Yes |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (emissions) | EPA / ASTM WK47329 |
| USA Standard (safety) | UL 1482, UL 737 |
| Steel thickness-body | 3/16” |
| Steel thickness-top | 5/16” |
| Warranty | Limited Lifetime |
| Shipping Weight | 382 lb (173 kg) |
Minimum Clearance to Combustibles:
| Canada | United States | |||
|---|---|---|---|---|
| Clearance to Combustibles* | Single Wall | Double Wall | Single Wall | Double Wall |
| Clearance - Back Wall | 17" | 17” | 16” | 16” |
| Clearance - Side Wall | 10" | 7” | 10” | 7” |
| Clearance - Corner | 14 1/2" | 6” | 11” | 6” |
| Clearance - Base of the unit to ceiling** | 84” | 84” | 84” | 84” |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||||
