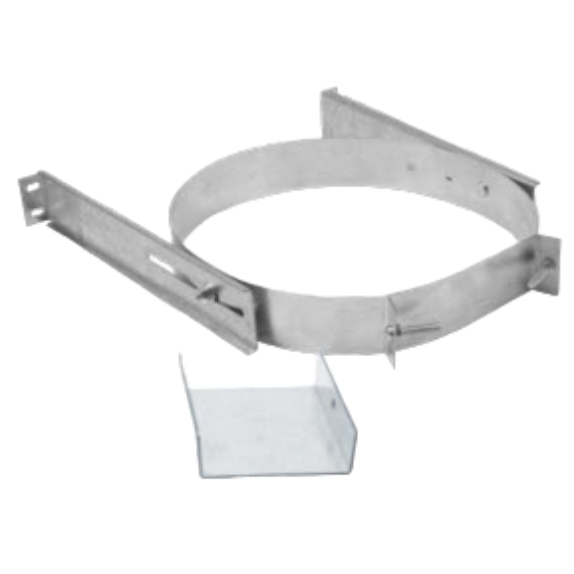

DuraTech Wall Strap 5" to 8"
Product Images
DuraTech Wall Strap 5" to 8"
Product Details
Help & Documents
The DuraTech Wall Strap is used for interior and exterior installations to provide lateral support for the chimney pipe. The Wall Strap is required every 8 ft. above either the tee support for through the wall installation and the ceiling box for a through the ceiling or inside a chase installation. The Wall Strap is adjustable and will extend 2" to 6" from the side of the wall.
Note: The Wall Strap does not provide vertical support or load bearing. It is just for lateral stabilization.
Measurement Chart:
DuraTech Wall Strap 5" to 8"
| Size | 6" | 8" |
| A | 8" | 10" |
| B | 11.75" | 14" |
Product Details:
The DuraTech Wall Strap is used for interior and exterior installations to provide lateral support for the chimney pipe. The Wall Strap is required every 8 ft. above either the tee support for through the wall installation and the ceiling box for a through the ceiling or inside a chase installation. The Wall Strap is adjustable and will extend 2" to 6" from the side of the wall.
Note: The Wall Strap does not provide vertical support or load bearing. It is just for lateral stabilization.
Measurement Chart:
DuraTech Wall Strap 5" to 8"
| Size | 6" | 8" |
| A | 8" | 10" |
| B | 11.75" | 14" |
