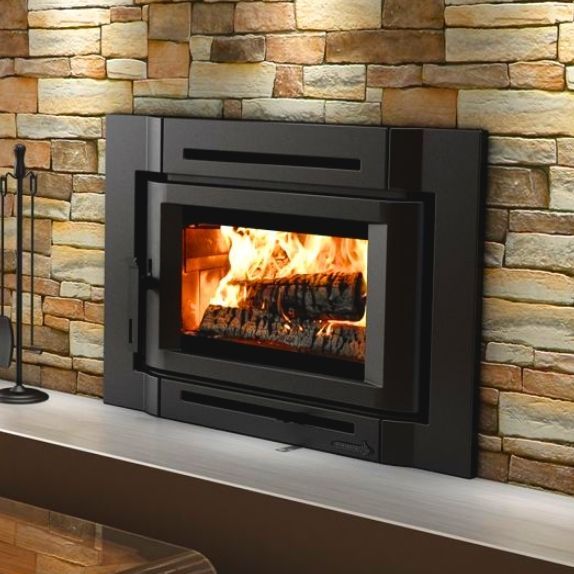

Enerzone Destination 2.3-I Wood Burning Insert
Enerzone Destination 2.3-I Wood Burning Insert

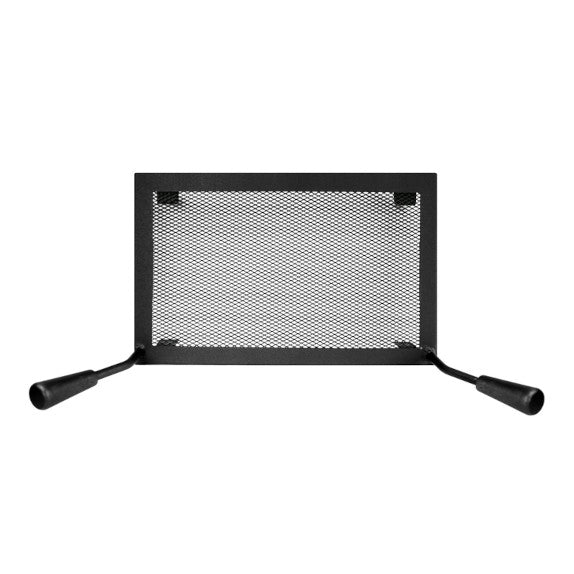

Rigid Firescreen

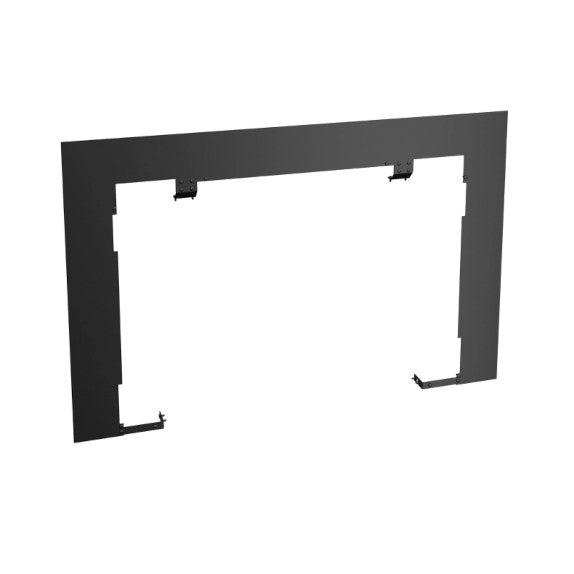

29" X 44" Faceplate Backing Plate Kit
29" X 50" Faceplate Backing Plate Kit

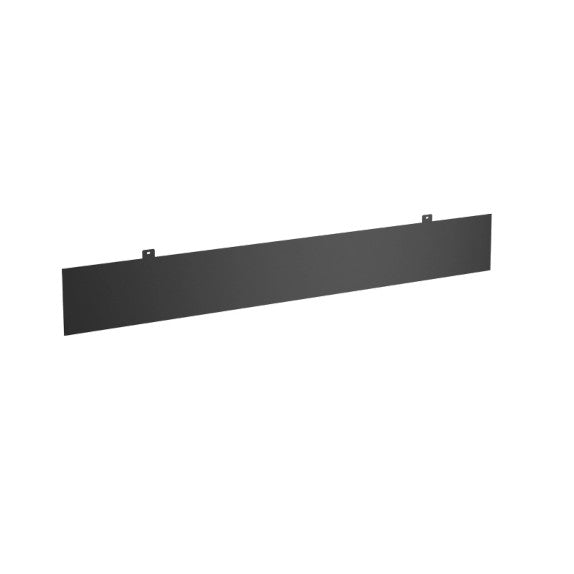

44" x 6" Bottom Faceplate Backing Plate
50" x 6" Bottom Faceplate Backing Plate

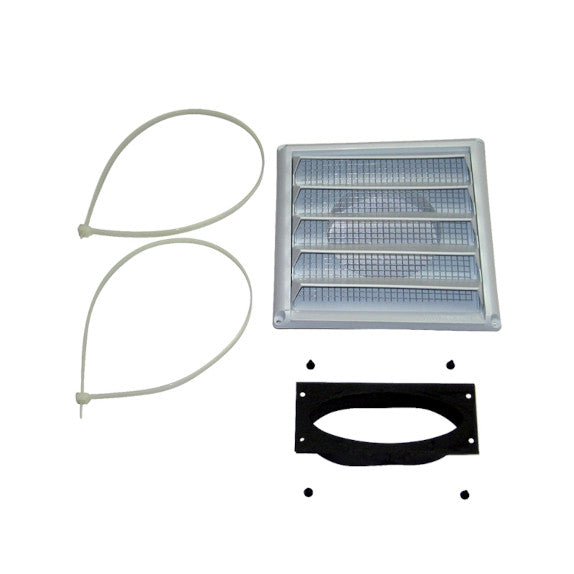

5" Fresh Air Intake Kit
Product Details
Specifications
Help & Documents
Options
The Enerzone Destination 2.3-I wood burning insert is a fresh take on the design of wood burning fireplace inserts. The contemporary cast iron flush mount surround is unlike anything in the industry and is the perfect picture frame for the large 18" x 11 7/8" glass door. The amazing appearance is a bonus on top of the powerful heating capabilities for the cold winter months.
Producing up to 75,000 BTUs allows the destination 2.3-I insert to heat up to 2,100 square feet. The 2.4 cubic foot firebox is capable of handling a 20" log and offers up to an 8 hour burn time on one load of wood. The Destination 2.3-I insert is EPA certified non-catalytic secondary combustion wood stove with an optimum efficiency of 79%.
Do you have a large fireplace opening? If so, an optional backer plate is available to extend the cast iron surround and conceal the fireplace opening. The backer plate is available in 29" tall by 44" wide and 29" tall and 50" wide for large fireplace openings. A 90 CFM blower is included and is easily accessible through a streamlined drawer system that is unlike any other manufacturer in the industry.
The Enerzone Destination 2.3-I inserts contemporary design and heating capacity distinguish it from the competition and is sure to be the focal point of any room.

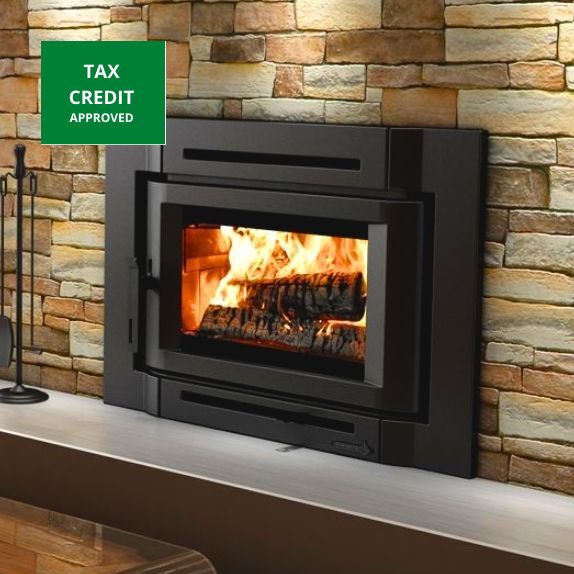

The Enerzone Destination 2.3-I insert also qualifies for the wood and pellet stove tax credit through the end of 2032. See below for more details.
Features:
- High-efficiency appliance 2020 EPA approved
- Blower Kit with Variable Speed Control
- Maximum burn time : 8 hours
- Non-catalytic combustion technology
- Maximum log length: 20"
- 1.54 g/hr. emissions
- EPA 2020 approved
- 77% optimum efficiency
- 75,000 BTUs
- Limited lifetime warranty
Measuring for Your Enerzone Destination 2.3-I
Installing Your New Wood Fireplace Insert
Enerzone Destination 2.3-I Wood Insert Specifications |
|
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 20” |
| Log positioning | Loading over width |
| Chimney diameter | 6” |
| Flue outlet diameter | 6” |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 12’ |
| Baffle type | C-Cast or equivalent |
| Approved for a mobile home installation | No |
| Shipping Weight | 478 lb (217 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 18" X 11 7/8'' |
| Glass air-wash system | Yes |
| Overall dimension (Height) | 25" |
| Overall dimension (Width) | 35 7/8" |
| Overall dimension (Depth) | 29 1/2" |
| Door opening – dimension (Height) | 8 3/4" |
| Door opening - dimension (Width) | 21" |
| Firebox – dimension (Height) | 11 7/8" |
| Firebox – dimension (Width) | 21" |
| Firebox – dimension (Depth) | 16 3/4" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Adjustable threaded legs | Yes |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 5/16" |
| Fireplace opening – minimum (Height) | 23 3/4" |
| Fireplace opening – minimum (Width) | 28 7/8" |
| Fireplace opening – minimum (Depth) | 19 5/8" |
| USA standard (emissions) | EPA Method 28 |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S628 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
Minimum Clearance to Combustibles:
| Clearances to combustibles* | Canada | United States |
|---|---|---|
| Clearance – top (measured from the platform on which the appliance is installed)** | 84" | 84” |
| Clearance – combustible side mantle to unit | 9" | 9” |
| Clearance - Top mantle to unit | 27" | 27” |
| Clearance – combustible side wall to unit | 16” | 16” |
| Clearance – minimum floor protection in front of the appliance | 18” | 16” |
| Clearance - from the top of the unit to the shelf | 19” | |
| Clearance – from the top of the insert to the shelf | 27” | |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||
Product Details:
The Enerzone Destination 2.3-I wood burning insert is a fresh take on the design of wood burning fireplace inserts. The contemporary cast iron flush mount surround is unlike anything in the industry and is the perfect picture frame for the large 18" x 11 7/8" glass door. The amazing appearance is a bonus on top of the powerful heating capabilities for the cold winter months.
Producing up to 75,000 BTUs allows the destination 2.3-I insert to heat up to 2,100 square feet. The 2.4 cubic foot firebox is capable of handling a 20" log and offers up to an 8 hour burn time on one load of wood. The Destination 2.3-I insert is EPA certified non-catalytic secondary combustion wood stove with an optimum efficiency of 79%.
Do you have a large fireplace opening? If so, an optional backer plate is available to extend the cast iron surround and conceal the fireplace opening. The backer plate is available in 29" tall by 44" wide and 29" tall and 50" wide for large fireplace openings. A 90 CFM blower is included and is easily accessible through a streamlined drawer system that is unlike any other manufacturer in the industry.
The Enerzone Destination 2.3-I inserts contemporary design and heating capacity distinguish it from the competition and is sure to be the focal point of any room.
The Enerzone Destination 2.3-I insert also qualifies for the wood and pellet stove tax credit through the end of 2032. See below for more details.
Features:
- High-efficiency appliance 2020 EPA approved
- Blower Kit with Variable Speed Control
- Maximum burn time : 8 hours
- Non-catalytic combustion technology
- Maximum log length: 20"
- 1.54 g/hr. emissions
- EPA 2020 approved
- 77% optimum efficiency
- 75,000 BTUs
- Limited lifetime warranty
Measuring for Your Enerzone Destination 2.3-I
Installing Your New Wood Fireplace Insert
Specifications:
Enerzone Destination 2.3-I Wood Insert Specifications |
|
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 20” |
| Log positioning | Loading over width |
| Chimney diameter | 6” |
| Flue outlet diameter | 6” |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 12’ |
| Baffle type | C-Cast or equivalent |
| Approved for a mobile home installation | No |
| Shipping Weight | 478 lb (217 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 18" X 11 7/8'' |
| Glass air-wash system | Yes |
| Overall dimension (Height) | 25" |
| Overall dimension (Width) | 35 7/8" |
| Overall dimension (Depth) | 29 1/2" |
| Door opening – dimension (Height) | 8 3/4" |
| Door opening - dimension (Width) | 21" |
| Firebox – dimension (Height) | 11 7/8" |
| Firebox – dimension (Width) | 21" |
| Firebox – dimension (Depth) | 16 3/4" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Adjustable threaded legs | Yes |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 5/16" |
| Fireplace opening – minimum (Height) | 23 3/4" |
| Fireplace opening – minimum (Width) | 28 7/8" |
| Fireplace opening – minimum (Depth) | 19 5/8" |
| USA standard (emissions) | EPA Method 28 |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S628 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
Minimum Clearance to Combustibles:
| Clearances to combustibles* | Canada | United States |
|---|---|---|
| Clearance – top (measured from the platform on which the appliance is installed)** | 84" | 84” |
| Clearance – combustible side mantle to unit | 9" | 9” |
| Clearance - Top mantle to unit | 27" | 27” |
| Clearance – combustible side wall to unit | 16” | 16” |
| Clearance – minimum floor protection in front of the appliance | 18” | 16” |
| Clearance - from the top of the unit to the shelf | 19” | |
| Clearance – from the top of the insert to the shelf | 27” | |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||
Help & Documents:
Options:
