Enerzone Harmony 2.3 Wood Burning Stove
Product Images

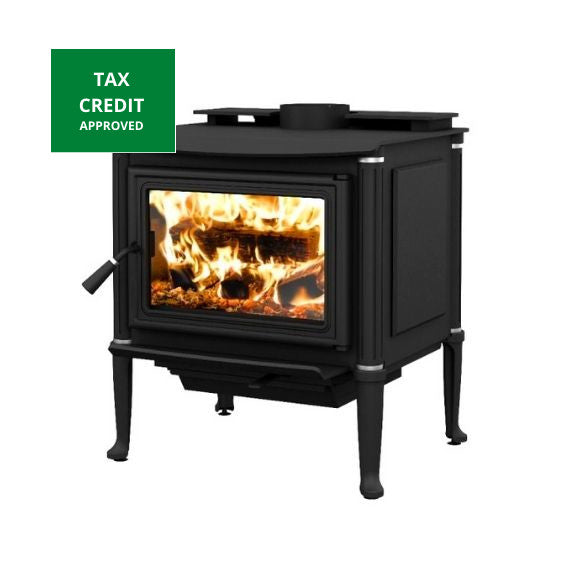

Enerzone Harmony 2.3 Wood Burning Stove
Enerzone Harmony 2.3 Wood Burning Stove

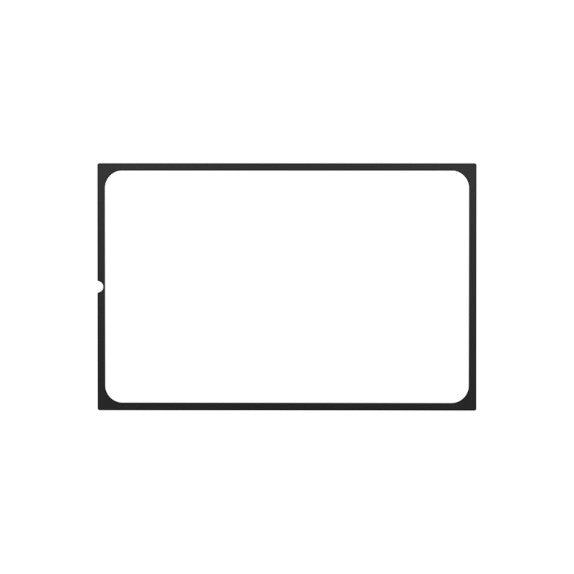

Black Steel Door Overlay
Brushed Nickel Steel Door Overlay
130 CFM Blower With Variable Speed Control (THERMODISC INCLUDED)
5 in. Ø Fresh Air Intake Kit For Wood Stove On Legs
Moulded Refractory Panels
Product Details
Specifications
Help & Documents
Options
The Enerzone Harmony 2.3 wood burning stove has a distinctive design that distinguishes it from other freestanding wood stoves in the industry. The Harmony 2.3 is a true standout with the unique combination of traditional and contemporary wood stove designs. The ornate leg design emulates the detailed fluted roman Doric style columns with brushed nickel accents that offer an elegance that other leg model stoves lack. Choose between the black and brushed nickel door overlay which provides the perfect picture frame for the large 16 1/2" x 10 1/8" glass door.
The Enerzone Harmony 2.3 wood stove is not only a work of art but is also capable of providing plenty of heat with its large fire box. The 2.4 cubic foot firebox is able to accept up to a 20" log while having a max burn time of 8 hours on one load of wood. This EPA certified wood stove produces up to 75,000 BTUs and is eco-friendly with a low 1.54 g/h emissions rating. An optional 130 CFM blower with thermal disc is a great addition to help push the heat throughout the large space.
The Harmony 2.3 is also equipped with an easy to access ash drawer which makes cleaning out the stove a breeze. A combination of powerful heating capacity with an elegant design makes the Harmony 2.3 a wood stove to highly consider and is sure to beat all your expectations. The Enerzone Harmony 2.3 Wood Stove also qualifies for the wood and pellet stove tax credit through the end of 2032. See below for more details.
Features
- Firebox lined with refractory bricks for better heat distribution
- Optimum efficiency : 77 %
- Average particulate emissions rate : 1.54 g/h
- Steel thickness – top : 3/8"
- High-efficiency certified appliance : Yes, EPA 2020 approved
- Approved for a mobile home installation
- Recommended heating area-ft² : 500 - 2,100
- Easy-to-access ash drawer
Measuring for Your Enerzone Harmony 2.3
Stove Insert Measurement Guides
Installing Your New Wood Stove
Video of Installing a Wood Burning Stove
Enerzone Harmony 2.3 Wood Stove Specifications |
|
| Combustion technology | Non-catalytic |
| EPA loading volume-ft³ | 1.95 |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 20" |
| Log positioning | Loading over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 12' |
| Baffle type | C-Cast or equivalent |
| Approved for a mobile home installation | Yes, with fresh air intake |
| Shipping Weight | 435 lb (198 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 16 1/2" X 10 1/8" |
| Glass air-wash system | Yes |
| Overall dimension (Height) | 30 1/8" |
| Overall dimension (Width) | 25 5/8" |
| Overall dimension (Depth) | 25 5/8"" |
| Door opening – dimension (Height) | 9" |
| Door opening - dimension (Width) | 17 1/2" |
| Firebox – dimension (Height) | 11 7/8" |
| Firebox – dimension (Width) | 21" |
| Firebox – dimension (Depth) | 17 1/4" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Model | Legs |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 3/8" |
| Easy-to-access ash drawer | Yes |
| USA Standard (emissions) | Comply with EPA 2020 |
| Canadian Standard (emissions) | CSA B415.1-10 |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (safety) | UL 1482, UL 737 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
Minimum Clearance to Combustibles:
| Canada | United States | |||
|---|---|---|---|---|
| Clearance to Combustibles* | Single Wall | Double Wall | Single Wall | Double Wall |
| Clearance - Back Wall | 14 1/2" | 6” | 11” | 6” |
| Clearance - Corner | 12" | 12” | 12” | 12” |
| Clearance - Side Wall | 22" | 22” | 22” | 22” |
| Clearance - Top (measured from the platform on which the appliance is installed)** | 84” | 84” | 84” | 84” |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||||
Product Details:
The Enerzone Harmony 2.3 wood burning stove has a distinctive design that distinguishes it from other freestanding wood stoves in the industry. The Harmony 2.3 is a true standout with the unique combination of traditional and contemporary wood stove designs. The ornate leg design emulates the detailed fluted roman Doric style columns with brushed nickel accents that offer an elegance that other leg model stoves lack. Choose between the black and brushed nickel door overlay which provides the perfect picture frame for the large 16 1/2" x 10 1/8" glass door.
The Enerzone Harmony 2.3 wood stove is not only a work of art but is also capable of providing plenty of heat with its large fire box. The 2.4 cubic foot firebox is able to accept up to a 20" log while having a max burn time of 8 hours on one load of wood. This EPA certified wood stove produces up to 75,000 BTUs and is eco-friendly with a low 1.54 g/h emissions rating. An optional 130 CFM blower with thermal disc is a great addition to help push the heat throughout the large space.
The Harmony 2.3 is also equipped with an easy to access ash drawer which makes cleaning out the stove a breeze. A combination of powerful heating capacity with an elegant design makes the Harmony 2.3 a wood stove to highly consider and is sure to beat all your expectations. The Enerzone Harmony 2.3 Wood Stove also qualifies for the wood and pellet stove tax credit through the end of 2032. See below for more details.
Features
- Firebox lined with refractory bricks for better heat distribution
- Optimum efficiency : 77 %
- Average particulate emissions rate : 1.54 g/h
- Steel thickness – top : 3/8"
- High-efficiency certified appliance : Yes, EPA 2020 approved
- Approved for a mobile home installation
- Recommended heating area-ft² : 500 - 2,100
- Easy-to-access ash drawer
Measuring for Your Enerzone Harmony 2.3
Stove Insert Measurement Guides
Installing Your New Wood Stove
Video of Installing a Wood Burning Stove
Specifications:
Enerzone Harmony 2.3 Wood Stove Specifications |
|
| Combustion technology | Non-catalytic |
| EPA loading volume-ft³ | 1.95 |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 20" |
| Log positioning | Loading over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 12' |
| Baffle type | C-Cast or equivalent |
| Approved for a mobile home installation | Yes, with fresh air intake |
| Shipping Weight | 435 lb (198 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 16 1/2" X 10 1/8" |
| Glass air-wash system | Yes |
| Overall dimension (Height) | 30 1/8" |
| Overall dimension (Width) | 25 5/8" |
| Overall dimension (Depth) | 25 5/8"" |
| Door opening – dimension (Height) | 9" |
| Door opening - dimension (Width) | 17 1/2" |
| Firebox – dimension (Height) | 11 7/8" |
| Firebox – dimension (Width) | 21" |
| Firebox – dimension (Depth) | 17 1/4" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Model | Legs |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 3/8" |
| Easy-to-access ash drawer | Yes |
| USA Standard (emissions) | Comply with EPA 2020 |
| Canadian Standard (emissions) | CSA B415.1-10 |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (safety) | UL 1482, UL 737 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
Minimum Clearance to Combustibles:
| Canada | United States | |||
|---|---|---|---|---|
| Clearance to Combustibles* | Single Wall | Double Wall | Single Wall | Double Wall |
| Clearance - Back Wall | 14 1/2" | 6” | 11” | 6” |
| Clearance - Corner | 12" | 12” | 12” | 12” |
| Clearance - Side Wall | 22" | 22” | 22” | 22” |
| Clearance - Top (measured from the platform on which the appliance is installed)** | 84” | 84” | 84” | 84” |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||||
Help & Documents:
Options:
