Enerzone Solution 3.5 Wood Burning Insert
Product Images
Enerzone Solution 3.5 Wood Burning Insert
Enerzone Solution 3.5 Wood Burning Insert
Enerzone Solution 3.5 Wood Burning Insert

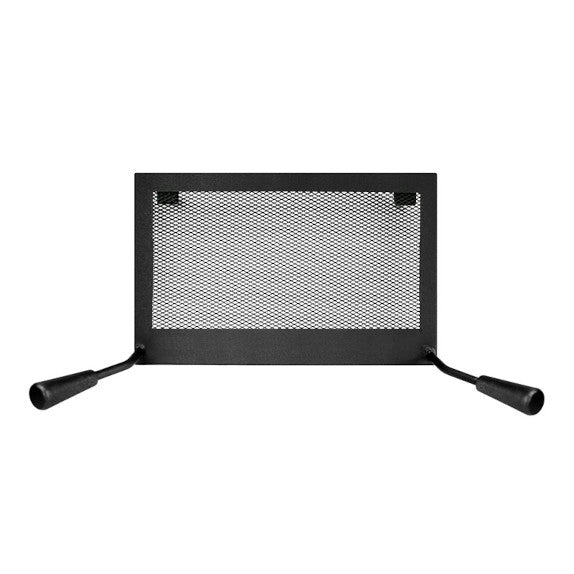

Rigid Firescreen
Regular Faceplate (32 in. X 44 in.)
Large Faceplate (32 in. X 50 in.)

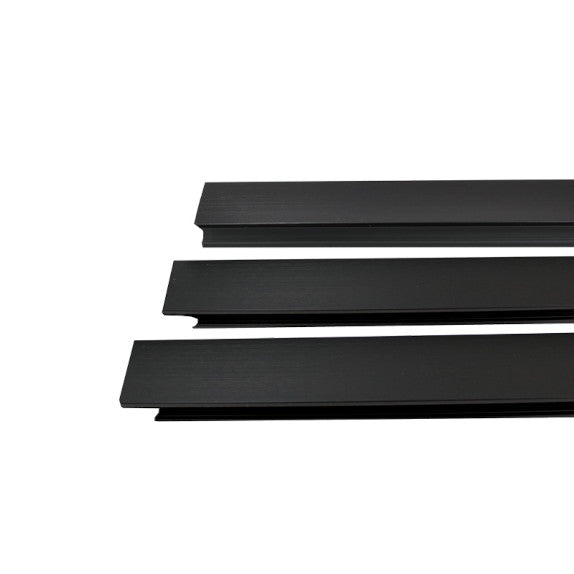

Black Faceplate Trims

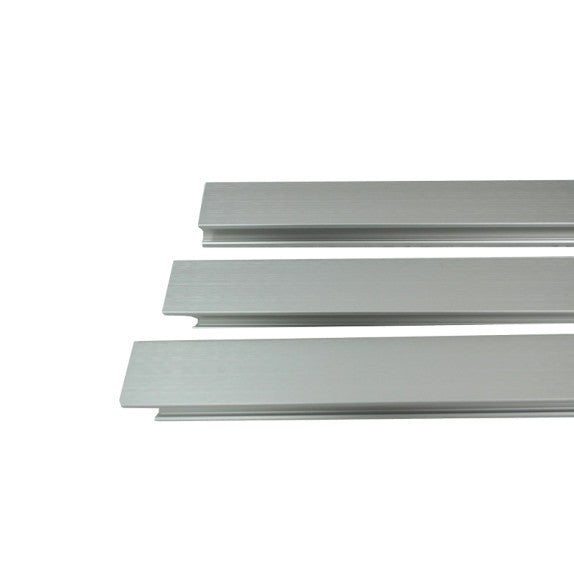

Brushed Nickel Faceplate Trims
5 in. Fresh Air Intake Kit
Product Details
Specifications
Help & Documents
Options
The Enerzone Solution 3.5 wood burning insert is the total package that delivers performance, comfort and affordability when updating an old inefficient masonry fireplace. The extra large 3.5 cubic ft. firebox is able to accept a 22" log positioned either in the width or the depth of the firebox.
Producing up to 110,000 BTUs allows the Solution 3.5 insert to heat up to 2,700 square ft. With an impressive 10 hour burn time you will spend more of your time enjoying the heat and beauty of the fire than feeding the stove with wood.
The Enerzone Solution 3.5 wood insert is EPA rated with a low 1.6 g/h emissions rating. The large arched viewing area is sure to be the focal point of any room and the classic stove design will fit with decor ranging from traditional to contemporary.
Choose between the 32" x 44" and the 32" x 50" Faceplate to seal off the old fireplace. Choose a faceplate in either Black or Brushed Nickel to provide the final accent and perfect frame for the fire. A blower is included to help push the heat across large rooms. If you have a very large masonry fireplace, the Enerzone 3.5 wood burning insert is the perfect choice for providing hours of heat in the cold winter months.
Features:
- Recommended heating area-ft² :1,000 - 2,700
- Maximum heat output-dry cordwood :110,000 BTU/h (16.9 kW)
- 3.5 ft³ firebox
- Burn time up to 10 hours
- Limited lifetime Warranty
- EPA certified
- Blower Included: Yes
Measuring for Your Enerzone Solution 3.5
Installing Your New Wood Fireplace Insert
Enerzone Solution 3.5 Wood Insert Specifications |
|
| Combustion technology | Non-catalytic secondary combustion |
| Maximum Burn Time | 10 h |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 22” |
| Log positioning | Loading over width and over depth |
| Chimney diameter | 6” |
| Flue outlet diameter | 6” |
| Type of chimney | Liner - ULC-S635, CAN/ULC-S640, UL1777 |
| Minimum chimney height (feet) | 15’ |
| Baffle type | C-Cast or equivalent |
| Approved for a mobile home installation | No |
| Shipping Weight | 562 lb (255 kg) |
| Door type | Single, glass with cast iron fram |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 18 3/4" X 12 1/2" |
| Glass air-wash system | Yes |
| Overall dimension (Height) | 24 7/8" |
| Overall dimension (Width) | 30 3/8" |
| Overall dimension (Depth) | 29 1/2" |
| Door opening – dimension (Height) | 10 5/8" |
| Door opening - dimension (Width) | 19" |
| Firebox – dimension (Height) | 12 7/8" |
| Firebox – dimension (Width) | 22 7/8" |
| Firebox – dimension (Depth) | 20 1/8" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 3/8" |
| Fireplace opening – minimum (Height) | 26 1/4" |
| Fireplace opening – minimum (Width) | 31" |
| Fireplace opening – minimum (Depth) | 18 3/8" |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S628 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
Minimum Clearance to Combustibles:
| Clearances to combustibles* | Canada | United States |
|---|---|---|
| Clearance – top (measured from the platform on which the appliance is installed)** | 84" | 84” |
| Clearance – combustible side mantle to unit | 9" | 9” |
| Clearance - Top mantle to unit | 27" | 27” |
| Clearance – combustible side wall to unit | 19” | 19” |
| Clearance - from the top of the unit to the shelf | 19” | |
| Clearance – from the top of the insert to the shelf | 27” | 27” |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||
Product Details:
The Enerzone Solution 3.5 wood burning insert is the total package that delivers performance, comfort and affordability when updating an old inefficient masonry fireplace. The extra large 3.5 cubic ft. firebox is able to accept a 22" log positioned either in the width or the depth of the firebox.
Producing up to 110,000 BTUs allows the Solution 3.5 insert to heat up to 2,700 square ft. With an impressive 10 hour burn time you will spend more of your time enjoying the heat and beauty of the fire than feeding the stove with wood.
The Enerzone Solution 3.5 wood insert is EPA rated with a low 1.6 g/h emissions rating. The large arched viewing area is sure to be the focal point of any room and the classic stove design will fit with decor ranging from traditional to contemporary.
Choose between the 32" x 44" and the 32" x 50" Faceplate to seal off the old fireplace. Choose a faceplate in either Black or Brushed Nickel to provide the final accent and perfect frame for the fire. A blower is included to help push the heat across large rooms. If you have a very large masonry fireplace, the Enerzone 3.5 wood burning insert is the perfect choice for providing hours of heat in the cold winter months.
Features:
- Recommended heating area-ft² :1,000 - 2,700
- Maximum heat output-dry cordwood :110,000 BTU/h (16.9 kW)
- 3.5 ft³ firebox
- Burn time up to 10 hours
- Limited lifetime Warranty
- EPA certified
- Blower Included: Yes
Measuring for Your Enerzone Solution 3.5
Installing Your New Wood Fireplace Insert
Specifications:
Enerzone Solution 3.5 Wood Insert Specifications |
|
| Combustion technology | Non-catalytic secondary combustion |
| Maximum Burn Time | 10 h |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 22” |
| Log positioning | Loading over width and over depth |
| Chimney diameter | 6” |
| Flue outlet diameter | 6” |
| Type of chimney | Liner - ULC-S635, CAN/ULC-S640, UL1777 |
| Minimum chimney height (feet) | 15’ |
| Baffle type | C-Cast or equivalent |
| Approved for a mobile home installation | No |
| Shipping Weight | 562 lb (255 kg) |
| Door type | Single, glass with cast iron fram |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 18 3/4" X 12 1/2" |
| Glass air-wash system | Yes |
| Overall dimension (Height) | 24 7/8" |
| Overall dimension (Width) | 30 3/8" |
| Overall dimension (Depth) | 29 1/2" |
| Door opening – dimension (Height) | 10 5/8" |
| Door opening - dimension (Width) | 19" |
| Firebox – dimension (Height) | 12 7/8" |
| Firebox – dimension (Width) | 22 7/8" |
| Firebox – dimension (Depth) | 20 1/8" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 3/8" |
| Fireplace opening – minimum (Height) | 26 1/4" |
| Fireplace opening – minimum (Width) | 31" |
| Fireplace opening – minimum (Depth) | 18 3/8" |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S628 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
Minimum Clearance to Combustibles:
| Clearances to combustibles* | Canada | United States |
|---|---|---|
| Clearance – top (measured from the platform on which the appliance is installed)** | 84" | 84” |
| Clearance – combustible side mantle to unit | 9" | 9” |
| Clearance - Top mantle to unit | 27" | 27” |
| Clearance – combustible side wall to unit | 19” | 19” |
| Clearance - from the top of the unit to the shelf | 19” | |
| Clearance – from the top of the insert to the shelf | 27” | 27” |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||
