Englander Blue Ridge 300-I Fireplace Insert

Product Images

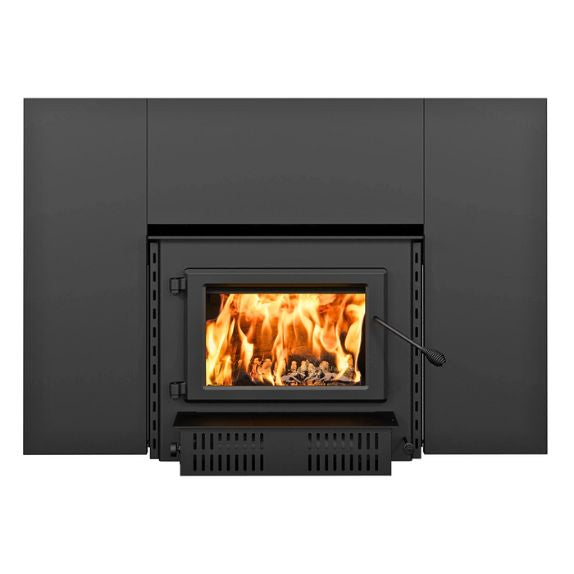

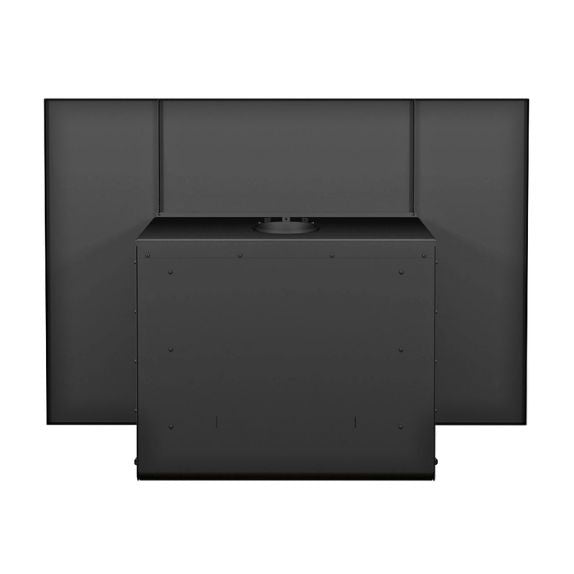

Englander Blue Ridge 300-I Fireplace Insert

Englander Blue Ridge 300-I Fireplace Insert

Englander Blue Ridge 300-I Fireplace Insert

Englander Blue Ridge 300-I Fireplace Insert

Englander Blue Ridge 300-I Fireplace Insert

Englander Blue Ridge 300-I Fireplace Insert

Englander Blue Ridge 300-I Fireplace Insert

Englander Blue Ridge 300-I Fireplace Insert

Englander Blue Ridge 300-I Fireplace Insert

Englander Blue Ridge 300-I Fireplace Insert

Englander Blue Ridge 300-I Fireplace Insert

Englander Blue Ridge 300-I Fireplace Insert

5"Ø Fresh Air Intake Kit

5"Ø Fresh Air Intake Kit

4' Insulated Flex Pipe For 5"Ø Fresh Air Intake

4' Insulated Flex Pipe For 5"Ø Fresh Air Intake

Rigid Firescreen

Rigid Firescreen

Description:
Approx. Heating Area: 500 - 2,100 ft²Max Output: 75,000 BTU/hEligible for Tax Incentive

Approx. Heating Area: 500 - 2,100 ft²

Max Output: 75,000 BTU/h

Eligible for Tax Incentive

Loading...
Configure for Price

Optional Add Ons:

Configure for Price

Product Details

Specifications

Help & Documents

Options

Elevate the efficiency and ambiance of your home with the Englander Blue Ridge 300-I wood stove insert. This premium insert is designed to seamlessly enhance your existing fireplace, transforming it into a powerful source of heat and a stunning focal point in any room. The Blue Ridge 300-I efficiently heats areas up to 2,100 square feet, boasting a potent output of 75,000 BTUs. With an advanced efficiency rating of 79%, it maximizes the heat obtained from every log, drastically reducing your heating expenses and wood consumption.

Enjoy the convenience of extended warmth with a burn time of up to 8 hours, ensuring your comfort throughout the night. This robust model features a firebox capacity that accommodates logs up to 20 inches, simplifying your preparations and maintaining consistent, long-lasting heat. It operates with an emissions rating of just 2.3 grams per hour, adhering to stringent EPA emissions standards and ensuring a cleaner burn.

The faceplate of the Blue Ridge 300-I is generously sized to fit a wide range of fireplace openings, creating a smooth, integrated appearance that complements any decor style. The included high-powered blower significantly enhances heat distribution throughout your living space. The smart thermodisc technology in this model automatically activates the blower when the insert reaches the optimal temperature and turns the blower off when the fire dies down alleviating the need to operate the blower manually.

For homeowners seeking to upgrade their traditional fireplace with a more efficient, environmentally friendly, and powerful heating solution, the Blue Ridge 300-I is an excellent choice. It offers not only significant heating capabilities and economic operation but also features a stylish design with a large glass door that allows you to enjoy the mesmerizing play of flames in a modern setting. Transform your home with the Englander Blue Ridge 300-I wood stove insert, where innovative heating technology meets elegant design to create a warm, inviting atmosphere in your home.

Features

▪ High efficiency 2.4 ft³ firebox
▪ Up to 8 hours burn time
▪ Spring faceplate adjustment system which easily adapts to any type of hearth
▪ Steel top reinforced with a stainless steel heat shield
▪ Cast iron door and ceramic glass
▪ EPA certified
▪ Proudly made in USA
▪ Non-catalytic combustion system
▪ Qualifies for the 30% US tax credit

Measuring for Your Englander Blue Ridge 300-I

​Fireplace Insert Calculator

Stove Insert Measurement Guides

​Chimney Liner Sizing Guide

Installing Your New Wood Fireplace Insert

Video of Installing a Wood Burning Fireplace Insert




Englander Blue Ridge 300-I Specifications

Fuel type

Dry cordwood (16" recommended)
Recommended heating area 500 - 2,100 ft²
Overall firebox volume 2.4 ft³
EPA loading volume 1.95 ft³
Maximum burn time 8 h
Maximum heat output-dry cordwood 75,000 BTU/h
Minimum overall heat output rate 14,200 BTU/h (4.16 kW)
Maximum overall heat output rate 44,500 BTU/h (13.04 kW)
Average overall efficiency-dry cordwood (HHV) 72 %
Average overall efficiency-dry cordwood (LHV) 77 %
Optimum efficiency 79 %
Optimum heat transfer efficiency 76 %
Average particulate emission rate 2.3 g/h
Average CO 69 g/h
From serial # 100
Premium quality blower included (CFM) 144
Certified according to applicable standards By an accredited laboratory (CAN/USA)
Combustion technology Non-catalytic
Stainless-steel secondary-air system Yes
Flue outlet diameter 6"
Distance-center of the flue outlet to back unit 6 3/4"
Distance-center of the flue outlet to side unit 13 1/2"
Recommended chimney diameter 6"
Type of chimney Liner ULC-S635, CAN/ULC-S640, UL 1777
Minimum chimney height 12'
Overall dimension (Width) 50"
Overall dimension (Height) 34"
Overall dimension (Depth) 26 1/2"
Door type Single, glass with cast iron frame
Door opening size (Width) 17 1/2"
Door opening size (Height) 9"
Glass type Ceramic glass
Glass surface - W x H 14 7/8" x 9 1/4"
Steel thickness-body 3/16"
Steel thickness-top 1/4"
Firebox size (Width) 21"
Firebox size (Height) 12"
Firebox size (Depth) 16 1/2"
Maximum log length 20" oriented East-West
Log positioning Loading over width
Firebox lined with refractory bricks Yes
Baffle type High quality vermiculite
Minimum fireplace opening (Width) 28 7/8"
Minimum fireplace opening (Height) 23 3/8"
Minimum fireplace opening (Depth) 15 3/4"
High-efficiency certified appliance Yes, EPA 2020 approved
Canadian Standard (emissions) CSA B415.1-10
USA Standard (emissions) EPA
Canadian Standard (safety) ULC S628
USA Standard (safety) UL 1482, UL 737
Warranty Limited 5 years
Shipping weight 365 lb (165 kg)

Minimum Clearance to Combustibles

Canada United States
Clearance - Combustible side wall to unit 16" 16"
Clearance - Combustible side mantle to unit 9" 9"
Clearance - Combustible top mantle to unit 27" 27"
Clearance - Top of the unit to a 12" combustible mantle shelf 27" 27"
Clearance - Base of the unit to ceiling** 84" 84"

Optional Accessories

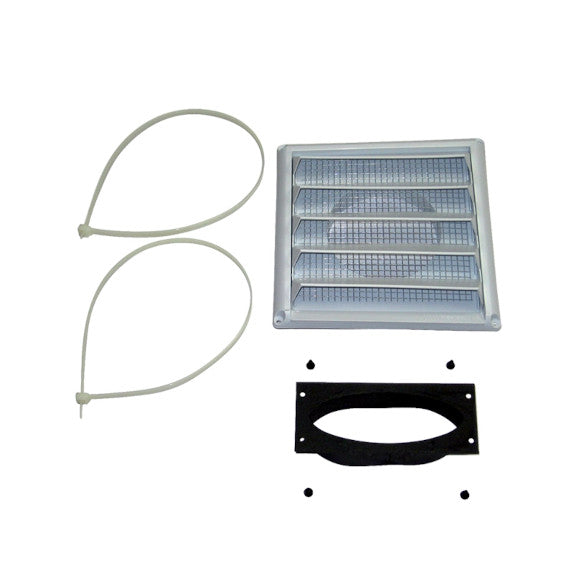

5"Ø Fresh Air Intake Kit

The 5" Fresh Air Oval Kit is required if you plan on connecting a fresh air intake pipe. The oval adapter kit comes with the oval adapter, 2 clamps and the fresh air intake register hood. The oval adapter is intended for a 5" fresh air intake pipe. You will have to manually ovalize the flexible intake pipe to make the connection to the adapter. The oval adapter can be positioned on either side of the stove.

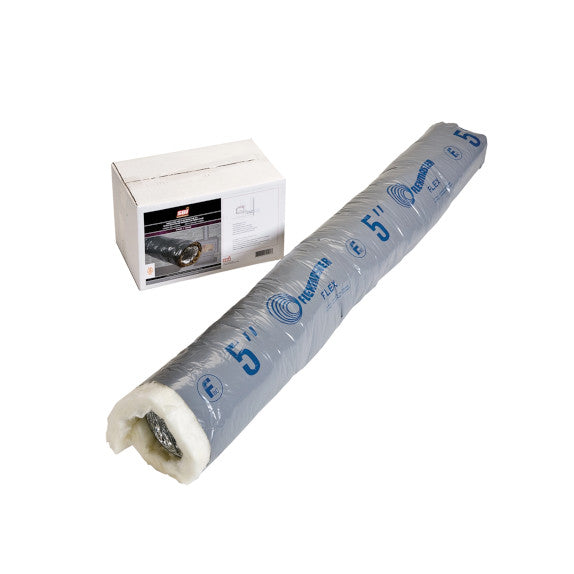

4' Insulated Flex Pipe For 5"Ø Fresh Air Intake

The Insulated Flexible Fresh Air Intake Pipe is the perfect choice for adding fresh air to the stove. Measuring 4' in length and 5" diameter, this is the perfect option for the short runs. The Fresh Air Intake Kit is required to complete the installation.

Rigid Firescreen

The Rigid Fire Screen allows you to burn wood in the stove with the door open just like an old-time fireplace. Hear the crackle of the wood, watch the flames dance around in the firebox and relax around the wood stove on a cold winter's night. The Rigid Fire Screen is easy to install and easy to remove when you are ready to load more wood. The Englander Blue Ridge 300-I fireplace insert should not be burning with the door open without the Fire Screen.

Tax Credit Information

The Englander Blue Ridge 300-I wood burning fireplace insert is EPA rated and has a HHV rating of 75% which qualifies for the wood and pellet stove tax credit through the end of 2032. From January 2023 through December 2032 you can receive up to a 30% tax credit for the installation and parts required, such as chimney liner and insulation. This is one of the largest tax credits the wood and pellet stove industry has ever had. If you are looking to update your old drafty fireplace consider the Englander Blue Ridge 300-I Fireplace Insert.

Product Details:

Elevate the efficiency and ambiance of your home with the Englander Blue Ridge 300-I wood stove insert. This premium insert is designed to seamlessly enhance your existing fireplace, transforming it into a powerful source of heat and a stunning focal point in any room. The Blue Ridge 300-I efficiently heats areas up to 2,100 square feet, boasting a potent output of 75,000 BTUs. With an advanced efficiency rating of 79%, it maximizes the heat obtained from every log, drastically reducing your heating expenses and wood consumption.

Enjoy the convenience of extended warmth with a burn time of up to 8 hours, ensuring your comfort throughout the night. This robust model features a firebox capacity that accommodates logs up to 20 inches, simplifying your preparations and maintaining consistent, long-lasting heat. It operates with an emissions rating of just 2.3 grams per hour, adhering to stringent EPA emissions standards and ensuring a cleaner burn.

The faceplate of the Blue Ridge 300-I is generously sized to fit a wide range of fireplace openings, creating a smooth, integrated appearance that complements any decor style. The included high-powered blower significantly enhances heat distribution throughout your living space. The smart thermodisc technology in this model automatically activates the blower when the insert reaches the optimal temperature and turns the blower off when the fire dies down alleviating the need to operate the blower manually.

For homeowners seeking to upgrade their traditional fireplace with a more efficient, environmentally friendly, and powerful heating solution, the Blue Ridge 300-I is an excellent choice. It offers not only significant heating capabilities and economic operation but also features a stylish design with a large glass door that allows you to enjoy the mesmerizing play of flames in a modern setting. Transform your home with the Englander Blue Ridge 300-I wood stove insert, where innovative heating technology meets elegant design to create a warm, inviting atmosphere in your home.

Features

▪ High efficiency 2.4 ft³ firebox
▪ Up to 8 hours burn time
▪ Spring faceplate adjustment system which easily adapts to any type of hearth
▪ Steel top reinforced with a stainless steel heat shield
▪ Cast iron door and ceramic glass
▪ EPA certified
▪ Proudly made in USA
▪ Non-catalytic combustion system
▪ Qualifies for the 30% US tax credit

Measuring for Your Englander Blue Ridge 300-I

​Fireplace Insert Calculator

Stove Insert Measurement Guides

​Chimney Liner Sizing Guide

Installing Your New Wood Fireplace Insert

Video of Installing a Wood Burning Fireplace Insert




Specifications:

Englander Blue Ridge 300-I Specifications

Fuel type

Dry cordwood (16" recommended)
Recommended heating area 500 - 2,100 ft²
Overall firebox volume 2.4 ft³
EPA loading volume 1.95 ft³
Maximum burn time 8 h
Maximum heat output-dry cordwood 75,000 BTU/h
Minimum overall heat output rate 14,200 BTU/h (4.16 kW)
Maximum overall heat output rate 44,500 BTU/h (13.04 kW)
Average overall efficiency-dry cordwood (HHV) 72 %
Average overall efficiency-dry cordwood (LHV) 77 %
Optimum efficiency 79 %
Optimum heat transfer efficiency 76 %
Average particulate emission rate 2.3 g/h
Average CO 69 g/h
From serial # 100
Premium quality blower included (CFM) 144
Certified according to applicable standards By an accredited laboratory (CAN/USA)
Combustion technology Non-catalytic
Stainless-steel secondary-air system Yes
Flue outlet diameter 6"
Distance-center of the flue outlet to back unit 6 3/4"
Distance-center of the flue outlet to side unit 13 1/2"
Recommended chimney diameter 6"
Type of chimney Liner ULC-S635, CAN/ULC-S640, UL 1777
Minimum chimney height 12'
Overall dimension (Width) 50"
Overall dimension (Height) 34"
Overall dimension (Depth) 26 1/2"
Door type Single, glass with cast iron frame
Door opening size (Width) 17 1/2"
Door opening size (Height) 9"
Glass type Ceramic glass
Glass surface - W x H 14 7/8" x 9 1/4"
Steel thickness-body 3/16"
Steel thickness-top 1/4"
Firebox size (Width) 21"
Firebox size (Height) 12"
Firebox size (Depth) 16 1/2"
Maximum log length 20" oriented East-West
Log positioning Loading over width
Firebox lined with refractory bricks Yes
Baffle type High quality vermiculite
Minimum fireplace opening (Width) 28 7/8"
Minimum fireplace opening (Height) 23 3/8"
Minimum fireplace opening (Depth) 15 3/4"
High-efficiency certified appliance Yes, EPA 2020 approved
Canadian Standard (emissions) CSA B415.1-10
USA Standard (emissions) EPA
Canadian Standard (safety) ULC S628
USA Standard (safety) UL 1482, UL 737
Warranty Limited 5 years
Shipping weight 365 lb (165 kg)

Minimum Clearance to Combustibles

Canada United States
Clearance - Combustible side wall to unit 16" 16"
Clearance - Combustible side mantle to unit 9" 9"
Clearance - Combustible top mantle to unit 27" 27"
Clearance - Top of the unit to a 12" combustible mantle shelf 27" 27"
Clearance - Base of the unit to ceiling** 84" 84"

Options:

Optional Accessories

5"Ø Fresh Air Intake Kit

The 5" Fresh Air Oval Kit is required if you plan on connecting a fresh air intake pipe. The oval adapter kit comes with the oval adapter, 2 clamps and the fresh air intake register hood. The oval adapter is intended for a 5" fresh air intake pipe. You will have to manually ovalize the flexible intake pipe to make the connection to the adapter. The oval adapter can be positioned on either side of the stove.

4' Insulated Flex Pipe For 5"Ø Fresh Air Intake

The Insulated Flexible Fresh Air Intake Pipe is the perfect choice for adding fresh air to the stove. Measuring 4' in length and 5" diameter, this is the perfect option for the short runs. The Fresh Air Intake Kit is required to complete the installation.

Rigid Firescreen

The Rigid Fire Screen allows you to burn wood in the stove with the door open just like an old-time fireplace. Hear the crackle of the wood, watch the flames dance around in the firebox and relax around the wood stove on a cold winter's night. The Rigid Fire Screen is easy to install and easy to remove when you are ready to load more wood. The Englander Blue Ridge 300-I fireplace insert should not be burning with the door open without the Fire Screen.

Tax Credit Information

The Englander Blue Ridge 300-I wood burning fireplace insert is EPA rated and has a HHV rating of 75% which qualifies for the wood and pellet stove tax credit through the end of 2032. From January 2023 through December 2032 you can receive up to a 30% tax credit for the installation and parts required, such as chimney liner and insulation. This is one of the largest tax credits the wood and pellet stove industry has ever had. If you are looking to update your old drafty fireplace consider the Englander Blue Ridge 300-I Fireplace Insert.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Ray Miller
Highly recommend!

If you are looking for an affordable, well built, easy-to-install and highly efficient fireplace insert, I highly recommend the Englander Blue Ridge 300-I Fireplace Insert.

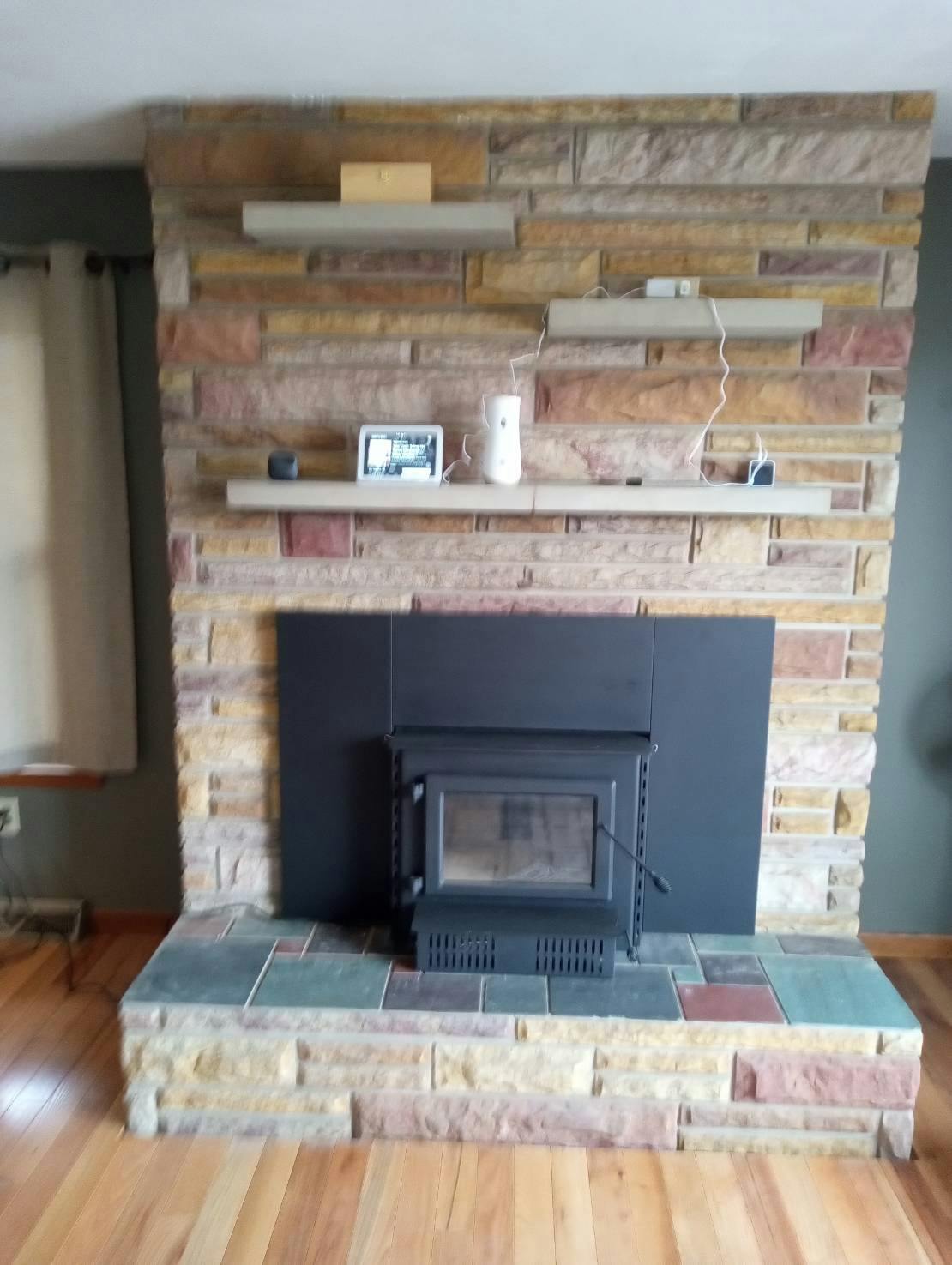

I recently installed this unity in a 1400 Square ft. ranch home. The house was built and 1969 and a full stone fireplace was built into the home. Over the years, the owner of the home stopped using the fireplace and installed a home-made fire box. The firebox was in poor shape and I did not feel comfortable using it as it really looked like a fire hazard and was very inefficient at heating the home.

I decided to install a new wood-burning insert. That's when a few searches led me to Rockford Chimney Supply. I looked at all of their models along side of wood-burning insert models from other companies.

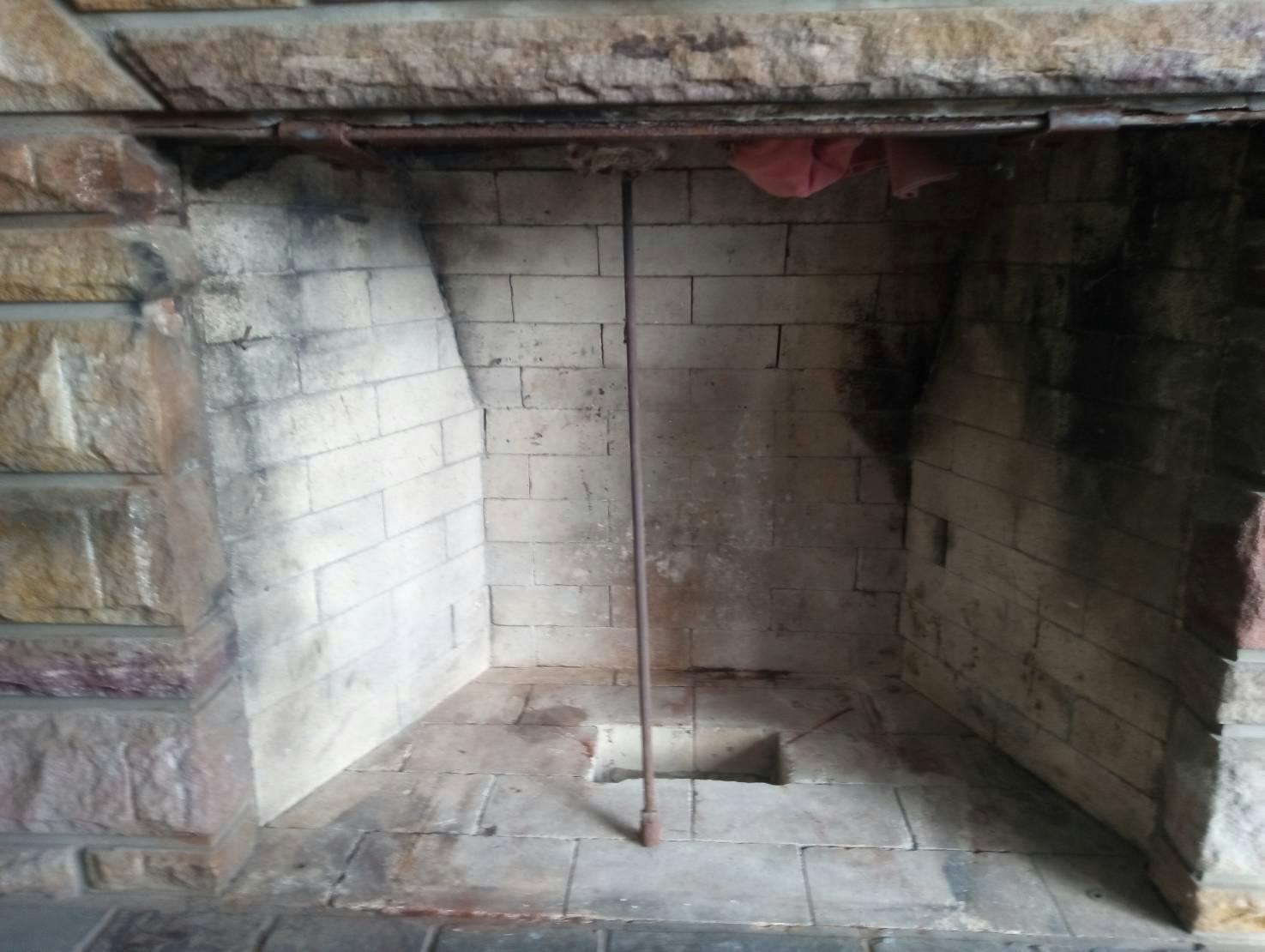

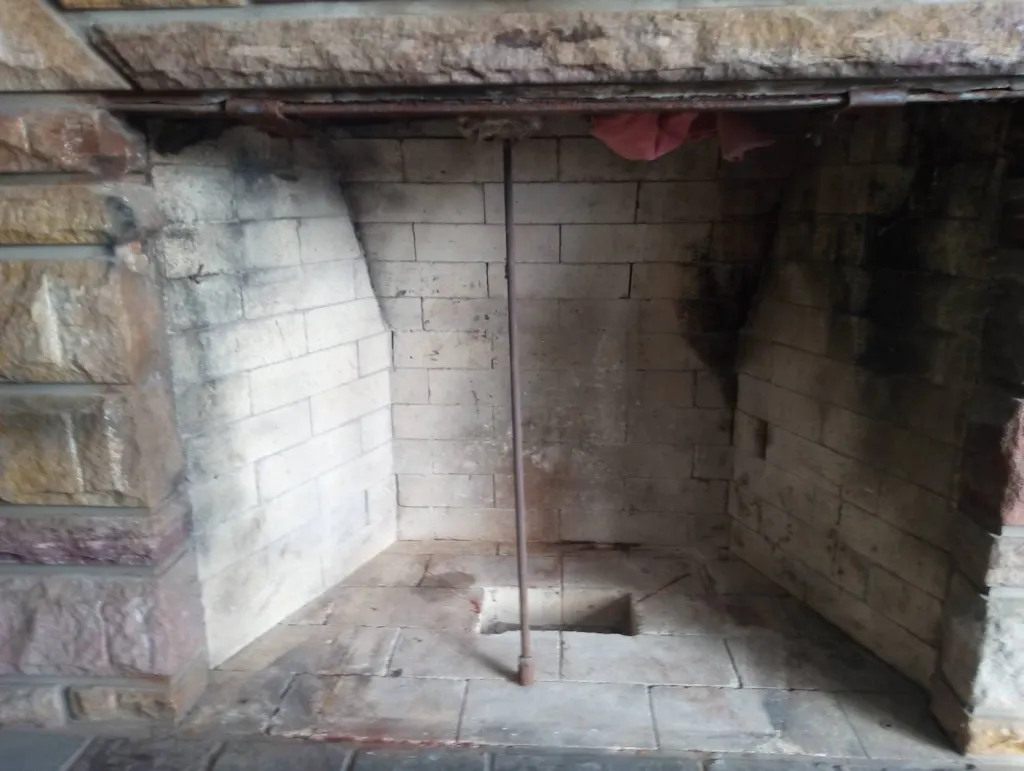

After taking dimensions and photos of the stone fireplace, I contacted Rockford Chimney Supply by phone. I shared the fireplace dimensions and photos. The person I talked to on several occasions was very knowledgeable about all of their inserts and was very helpful in answering all of my questions.

Base upon the design, size, efficiency, and the price, I decided to go with the Englander Blue Ridge 300-I Fireplace Insert.

I ordered via phone through the person I had been dealing with. They made sure my order included everything I needed to install the insert based upon the dimensions and photos I had shared.

The install did not take long. The majority of time spent was on getting the home-made insert out of the fireplace, cleaning everything up and getting ready to put the insert in place.

This insert is HEAVY weighing in at 420 lbs. We took the fire bricks which were already laid out in the fireplace insert out to make the insert a bit lighter. It took two of us to pick it up and place it on the fireplace hearth. Before, sliding the insert in place, we went on the roof and dropped the stainless steel flex pipe down the chimney made sure it would fit around the old damper wedge. The flex pipe allowed us to bring the pipe around the damper wedge (a steel plate over solid stone) and down to where it would meet the connector at the top of the insert.

We slid the insert into place and connected the chimney pipe per the included instructions. The fit was perfect! we then put fireplace cement around the chimney pipe connection per the instructions.

I ordered the ceramic fire blanket to insulate the areas between the insert and the original fireplace. I cut sections of the fire blanket, rolled it up and wedged in on the top and sides. This was done to prevent any drafting of air from inside the home into the chimney.

Then we installed the three included face panels. Easy peasy!

After installing the face panels, we slide the included blower onto the front bottom face of the fireplace insert and secured with the included screws.

I put the fire bricks back in their proper layout and loaded the insert with good, dry wood and lighted a fire.

What a BEAUTIFUL fire! If you've never seen a high efficiency fireplace or wood burner burn, it is an enlightening experience! I'll explain.

What makes a high efficiency wood-burning fireplace insert so efficient is the design; most specifically the baffle tubes that are located at the op of the firebox. These tubes draw in fresh air. The air is super-heated from the fire as it travels through the tubes and through the series of small holes that face towards the front of the firebox.

As the super-heated air exits the baffle holes, the gases from the wood spontaneously ignite, creating dancing plumes of fire suspended above the wood. Quite a beautiful and entertaining sight to behold!

I learned from my first high efficiency wood-burning fireplace insert I installed in my other home 15 years ago that wood does not actually burn. The fire that appears to be burning on the wood is from the combustion of the gasses that are exiting the wood. In an open environment, it appears as thought the wood is burning, it is not, the gasses exiting the wood is what is burning. In an enclosed environment like the high efficiency Englander Blue Ridge 300-I Fireplace Insert, the gasses that exit the wood immediately combust as they mix with the super-heated air from the baffle tubes. This is what makes units like this so efficient. In an open environment or a closed environment like a wood burner or wood-burning fireplace that does not have the baffle tube, a lot of the gasses from the wood simply rise up into the air or the chimney and dissipate into the air.

Three advantages of burning wood in a high efficiency fireplace insert like the Englander Blue Ridge 300-I Fireplace Insert:

1. The Englander Blue Ridge 300-I Fireplace Insert has four baffle tubes in the top of the firebox. The unit I installed in my other home 15 years ago only has 3 baffle tubes. The fourth tube in the Englander Blue Ridge 300-I Fireplace Insert makes a huge difference in the efficiency of the burn!

...
