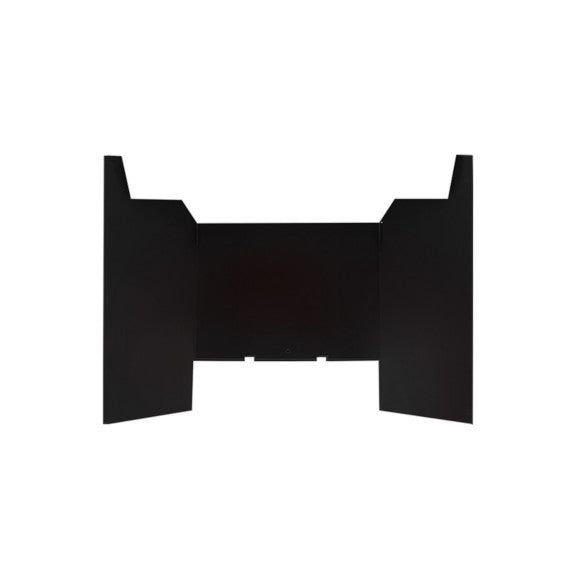

MIRRO-FLAME™ Porcelain Reflective Radiant Panels

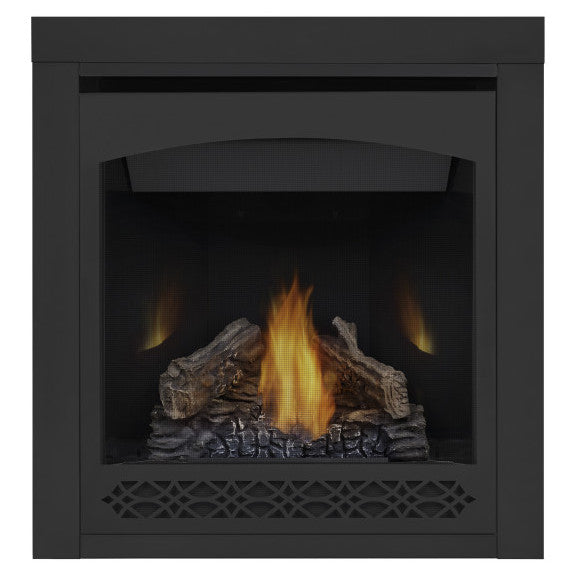

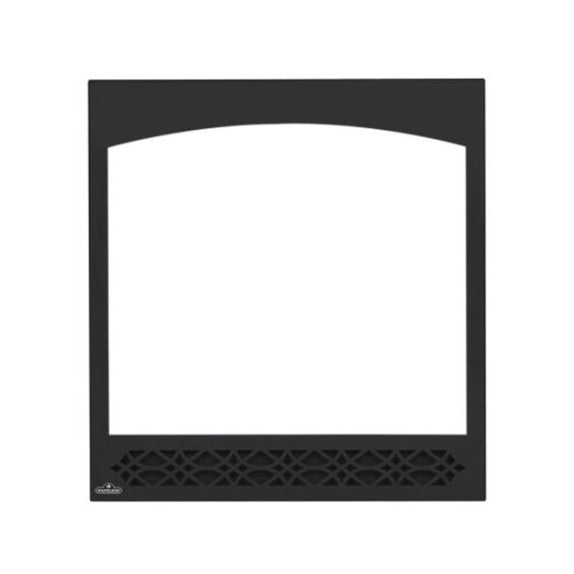

Black Heritage Decorative Safety Barrier

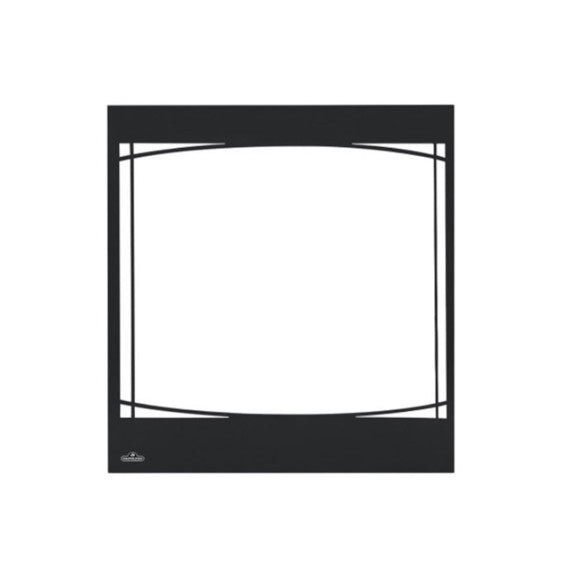

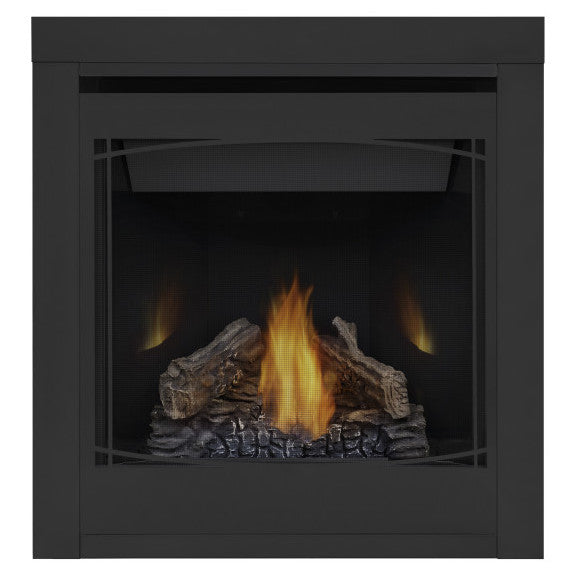

Black Zen Decorative Safety Barrier
Ascent 30 Napoleon Direct Vent Gas Fireplace

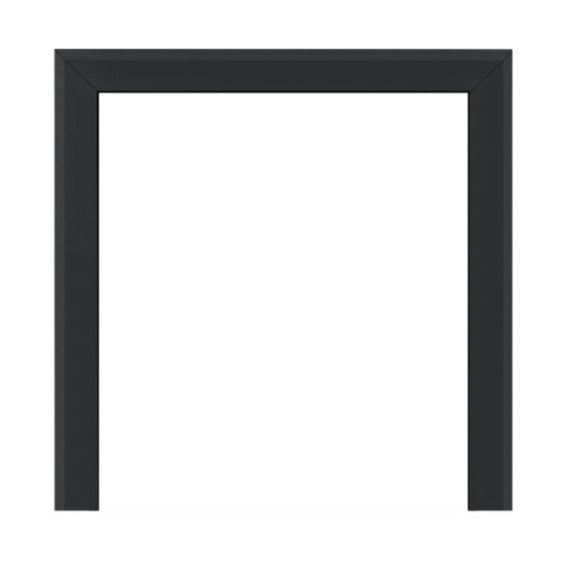

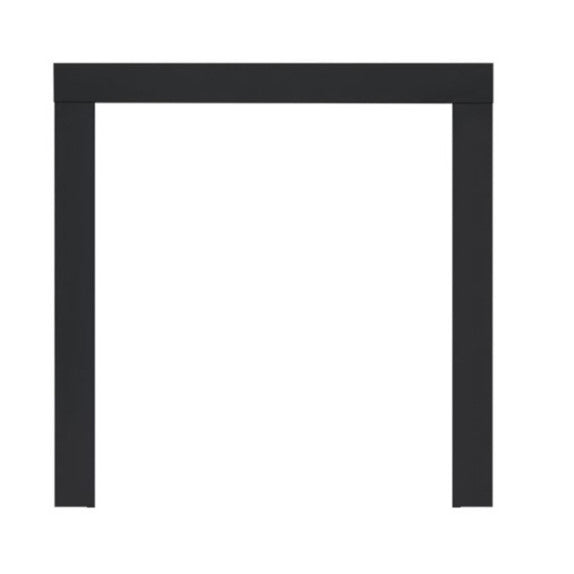

Black 2 in. Trim Kit
Ascent 30 Napoleon Direct Vent Gas Fireplace
Ascent 30 Napoleon Direct Vent Gas Fireplace
Product Details
Specifications
Help & Documents
Options

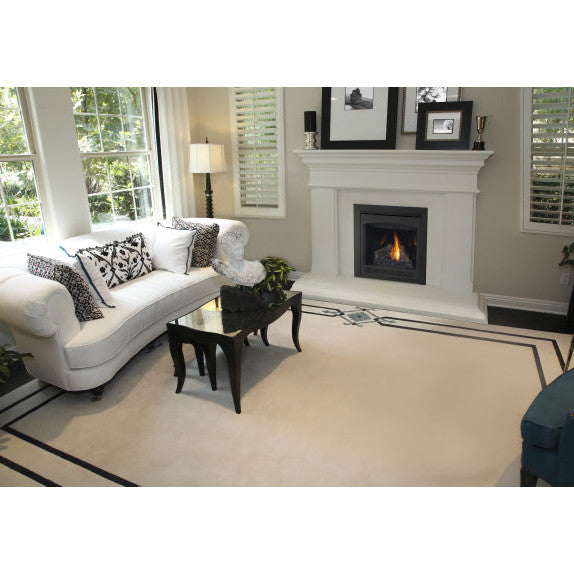

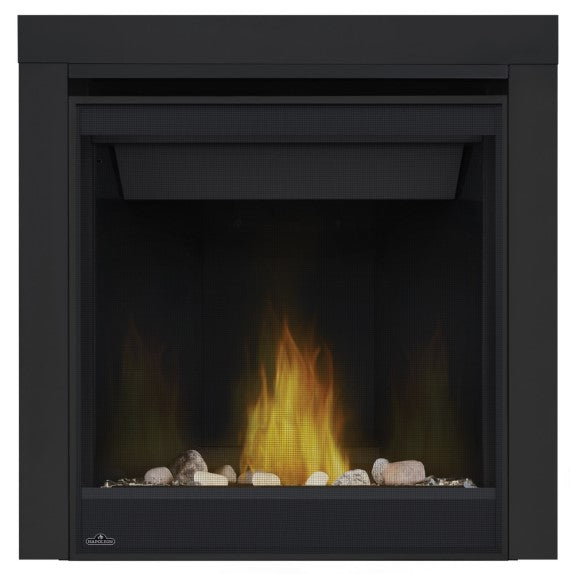

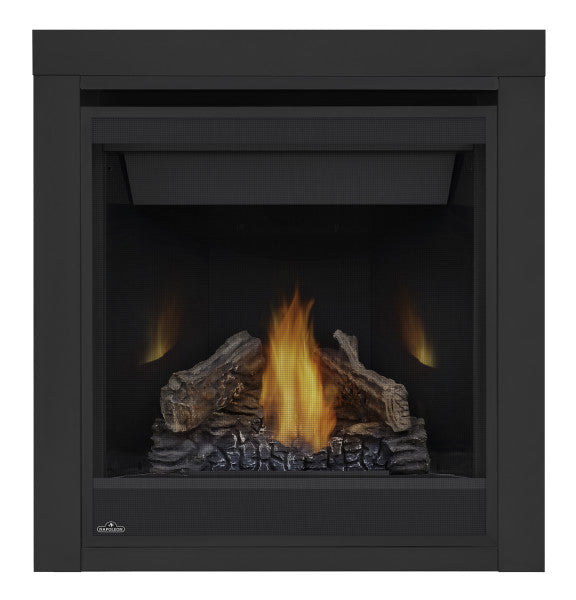

The Ascent 30B direct vent gas fireplace is the perfect fireplace for both tradesmen and homeowners alike. The shallow depth fireplace is perfect when space is at a premium and is perfect for corner installation. The fireplace is equipped with the realistic hand-painted PHAZER® log set and glowing ember bed which provides one of the most realistic gas logs in the industry. The face of the fireplace is exceptionally clean and does not have any outdated louvers.

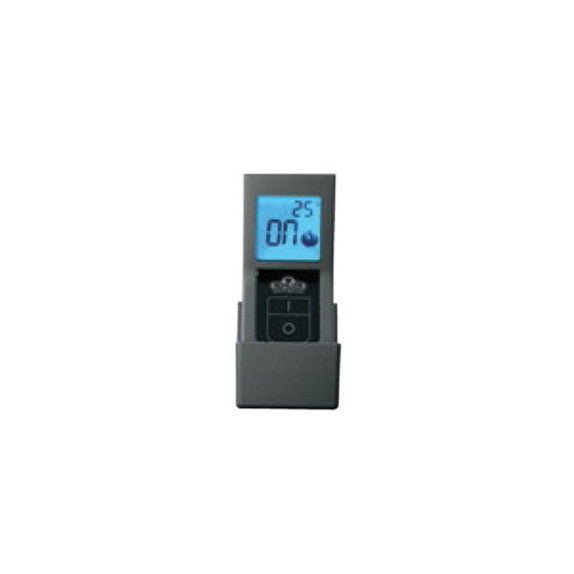

The electronic ignition has an optional on-off handheld remote is available to turn the fireplace on or off from up to 20' away. The standard safety barrier comes with the fireplace and optional decorative forms are available as an upgrade. Choose the optional 3" standard trim of the decorative 3" beveled trim kit if your facing material is not going all the way to the side of the fireplace for a finished look. Optional Mirror Flame reflective panels are available to enhance the look of the fireplace making the flames appear to be brighter. For natural gas only.
Features
- Up to 15,000 BTU's
- Exclusive PHAZER™ Log Set and Glowing Ember Bed
- Pan Style Burner
- Pre-Wired for Wall Switch
- Electronic Ignition
- Battery Back-Up Control System
- Top or rear exhaust allows for more flexible installations
- Flame and heat are adjustable
- Large 30" H X 34.625" W viewing area
Installation Examples
Top Vent Installation as either horizontal or vertical termination, using the chimney pipe system requirements in the manual. See page 10 - 25 in the manual for more information.
Rear Vent Installation as either horizontal or vertical termination, using the chimney pipe system requirements in the manual. See page 10 - 25 in the manual for more information.
This appliance is designed to be attached to a 4" exhaust / 7" air intake vent pipe system. This appliance is also designed to be attached to a 3" co-linear aluminum flex vent system running the full length of a masonry chimney. Co-linear to co-axial adapter required. More information on page 37 of the manual.
Ascent 30 Direct Vent Gas Fireplace Specifications
| Actual Depth | 14" |
| Actual Height | 34 5/8" |
| Actual Width | 30" |
| Viewing Area | 23 11/16" x 25 11/16" |
| Framing Depth | 14 1/2" |
| Framing Height | 35" |
| Framing Width | 30 1/2" |
| BTU's | 15,000 |
| Approved Chimney Brands | Dura-Vent Direct Vent Pro, Selkirk Direct Temp, BDM Pro-Form, Metal-Fab SureSeal |
| Center line of flue outlet to the front | 8 5/8" |
| Chimney System Diameter | 4" |
| Air Intake System Diameter | 7" |
| Warranty | President Limited Lifetime |
Product Details:
The Ascent 30B direct vent gas fireplace is the perfect fireplace for both tradesmen and homeowners alike. The shallow depth fireplace is perfect when space is at a premium and is perfect for corner installation. The fireplace is equipped with the realistic hand-painted PHAZER® log set and glowing ember bed which provides one of the most realistic gas logs in the industry. The face of the fireplace is exceptionally clean and does not have any outdated louvers.
The electronic ignition has an optional on-off handheld remote is available to turn the fireplace on or off from up to 20' away. The standard safety barrier comes with the fireplace and optional decorative forms are available as an upgrade. Choose the optional 3" standard trim of the decorative 3" beveled trim kit if your facing material is not going all the way to the side of the fireplace for a finished look. Optional Mirror Flame reflective panels are available to enhance the look of the fireplace making the flames appear to be brighter. For natural gas only.
Features
- Up to 15,000 BTU's
- Exclusive PHAZER™ Log Set and Glowing Ember Bed
- Pan Style Burner
- Pre-Wired for Wall Switch
- Electronic Ignition
- Battery Back-Up Control System
- Top or rear exhaust allows for more flexible installations
- Flame and heat are adjustable
- Large 30" H X 34.625" W viewing area
Installation Examples
Top Vent Installation as either horizontal or vertical termination, using the chimney pipe system requirements in the manual. See page 10 - 25 in the manual for more information.
Rear Vent Installation as either horizontal or vertical termination, using the chimney pipe system requirements in the manual. See page 10 - 25 in the manual for more information.
This appliance is designed to be attached to a 4" exhaust / 7" air intake vent pipe system. This appliance is also designed to be attached to a 3" co-linear aluminum flex vent system running the full length of a masonry chimney. Co-linear to co-axial adapter required. More information on page 37 of the manual.
Specifications:
Ascent 30 Direct Vent Gas Fireplace Specifications
| Actual Depth | 14" |
| Actual Height | 34 5/8" |
| Actual Width | 30" |
| Viewing Area | 23 11/16" x 25 11/16" |
| Framing Depth | 14 1/2" |
| Framing Height | 35" |
| Framing Width | 30 1/2" |
| BTU's | 15,000 |
| Approved Chimney Brands | Dura-Vent Direct Vent Pro, Selkirk Direct Temp, BDM Pro-Form, Metal-Fab SureSeal |
| Center line of flue outlet to the front | 8 5/8" |
| Chimney System Diameter | 4" |
| Air Intake System Diameter | 7" |
| Warranty | President Limited Lifetime |
