Ascent 36 Napoleon Direct Vent Gas Fireplace
Product Images
Ascent 36 Napoleon Direct Vent Gas Fireplace
Ascent 36 Napoleon Direct Vent Gas Fireplace
Ascent 36 Napoleon Direct Vent Gas Fireplace
Ascent 36 Napoleon Direct Vent Gas Fireplace
Ascent 36 Napoleon Direct Vent Gas Fireplace
Ascent 36 Napoleon Direct Vent Gas Fireplace
Ascent 36 Napoleon Direct Vent Gas Fireplace

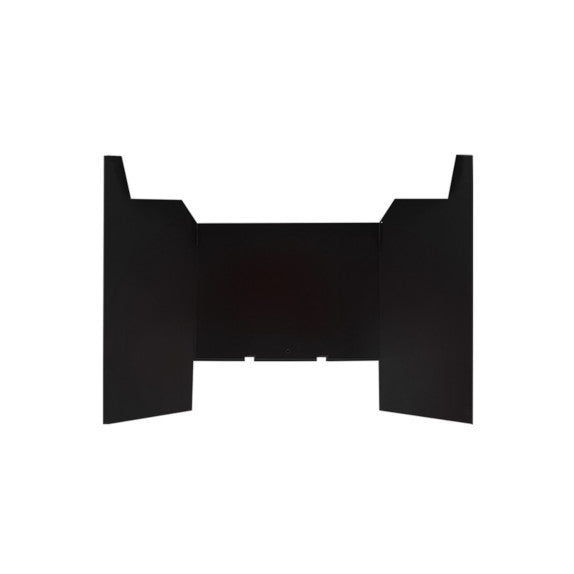

MIRRO-FLAME™ Porcelain Reflective Radiant Panels
Black Heritage Decorative Safety Barrier
Black Zen Decorative Safety Barrier

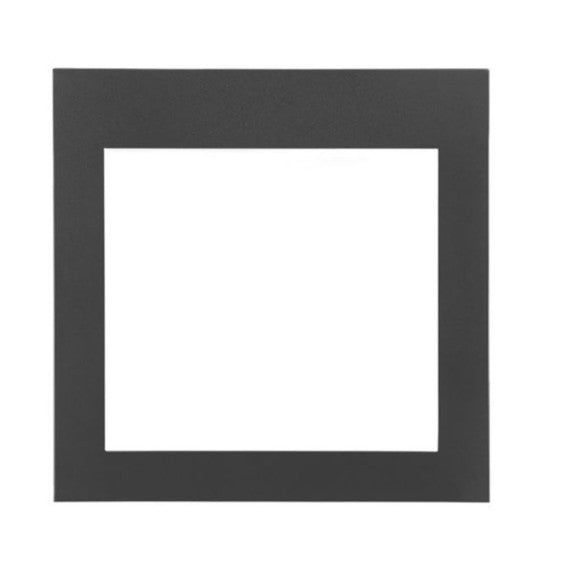

Matte Black Clean Face Decorative Surround
Black 2 in. Trim Kit
Black 3 in. Premium Beveled Trim Kit

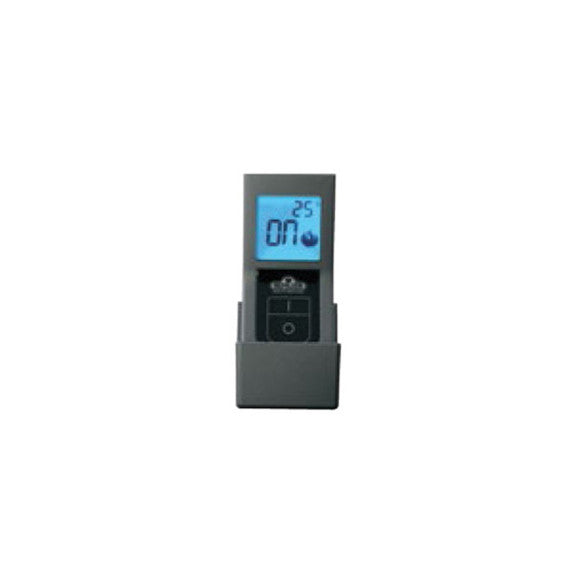

Remote Control On-Off With Digital Screen
Product Details
Specifications
Help & Documents
Options
The Napoleon Ascent 36 Direct Vent Gas Fireplace is the perfect fireplace for both tradesmen and homeowners alike. The shallow depth of this gas fireplace is perfect when space is at a premium and is perfect for corner installation. This gas fireplace is equipped with the realistic hand painted PHAZER® log set and glowing ember bed which provides one of the most realistic gas logs in the industry.
The face of the fireplace is very clean and does not have any outdated louvers. The millivolt ignition does not require any electricity to light the fireplace and an optional on-off handheld remote is available to turn the fireplace on or off from up to 20' away. The standard safety barrier comes with the fireplace and optional decorative barriers are available as an upgrade. Choose between the 3" standard trim or the decorative 3" beveled trim kit. Optional Mirror Flame Reflective Panels are available to enhance the look of the fireplace making the flames appear to be brighter. For natural gas only.
Features
- Up to 18,000 BTU's
- Top or rear exhaust allows for more flexible installations
- Flame and heat are adjustable
- Includes log set, ember bed, and standard safety barrier
- Large 23 11/16" Height X 30 11/16" Wide viewing area
- Pan style burner
- Battery Back-Up Control System
Installation Examples:
Top Vent Installation as either horizontal or vertical termination, using the chimney pipe system requirements in the manual. See page 10 - 25 in the manual for more information.
Rear Vent Installation as either horizontal or vertical termination, using the chimney pipe system requirements in the manual. See page 10 - 25 in the manual for more information.
This appliance is designed to be attached to a 3" co-linear aluminum flex vent system running the full length of a masonry chimney. Co-linear to co-axial adapter required. More information on page 39 of the manual.
Napoleon Ascent 36 Direct Vent Fireplace Specifications
| Actual Depth | 15 3/4" |
| Actual Height | 34 5/8" |
| Actual Width | 35" |
| Viewing Area | 23 11/16" x 30 11/16" |
| Framing Depth | 16" |
| Framing Height | 35" |
| Framing Width | 35 1/2" |
| BTU's | 18,000 |
| Approved Chimney Brands | Wolf Steel, Dura-Vent Direct Vent Pro, Selkirk Direct Temp, American Metal Amerivent, Metal-Fab |
| Center line of flue outlet to the front | 9 1/16" |
| Chimney System Diameter | 4" |
| Air Intake System Diameter | 7" |
| Warranty | Limited Lifetime |
Product Details:
The Napoleon Ascent 36 Direct Vent Gas Fireplace is the perfect fireplace for both tradesmen and homeowners alike. The shallow depth of this gas fireplace is perfect when space is at a premium and is perfect for corner installation. This gas fireplace is equipped with the realistic hand painted PHAZER® log set and glowing ember bed which provides one of the most realistic gas logs in the industry.
The face of the fireplace is very clean and does not have any outdated louvers. The millivolt ignition does not require any electricity to light the fireplace and an optional on-off handheld remote is available to turn the fireplace on or off from up to 20' away. The standard safety barrier comes with the fireplace and optional decorative barriers are available as an upgrade. Choose between the 3" standard trim or the decorative 3" beveled trim kit. Optional Mirror Flame Reflective Panels are available to enhance the look of the fireplace making the flames appear to be brighter. For natural gas only.
Features
- Up to 18,000 BTU's
- Top or rear exhaust allows for more flexible installations
- Flame and heat are adjustable
- Includes log set, ember bed, and standard safety barrier
- Large 23 11/16" Height X 30 11/16" Wide viewing area
- Pan style burner
- Battery Back-Up Control System
Installation Examples:
Top Vent Installation as either horizontal or vertical termination, using the chimney pipe system requirements in the manual. See page 10 - 25 in the manual for more information.
Rear Vent Installation as either horizontal or vertical termination, using the chimney pipe system requirements in the manual. See page 10 - 25 in the manual for more information.
This appliance is designed to be attached to a 3" co-linear aluminum flex vent system running the full length of a masonry chimney. Co-linear to co-axial adapter required. More information on page 39 of the manual.
Specifications:
Napoleon Ascent 36 Direct Vent Fireplace Specifications
| Actual Depth | 15 3/4" |
| Actual Height | 34 5/8" |
| Actual Width | 35" |
| Viewing Area | 23 11/16" x 30 11/16" |
| Framing Depth | 16" |
| Framing Height | 35" |
| Framing Width | 35 1/2" |
| BTU's | 18,000 |
| Approved Chimney Brands | Wolf Steel, Dura-Vent Direct Vent Pro, Selkirk Direct Temp, American Metal Amerivent, Metal-Fab |
| Center line of flue outlet to the front | 9 1/16" |
| Chimney System Diameter | 4" |
| Air Intake System Diameter | 7" |
| Warranty | Limited Lifetime |
