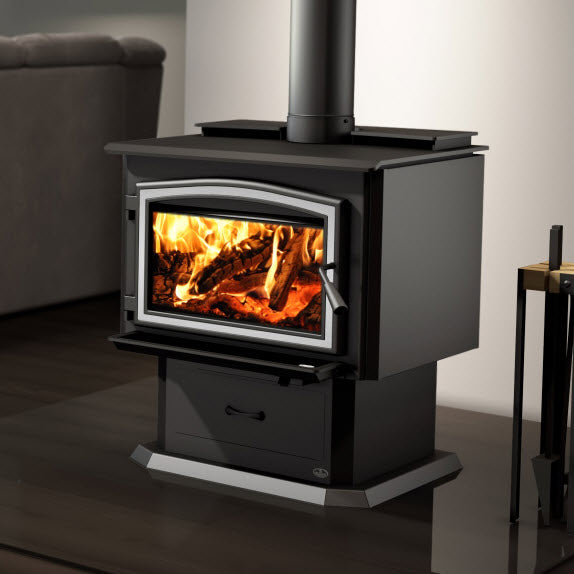

Osburn 3500 Wood Stove with Blower
Product Images
Osburn 3500 Wood Stove with Blower
Osburn 3500 Wood Stove with Blower

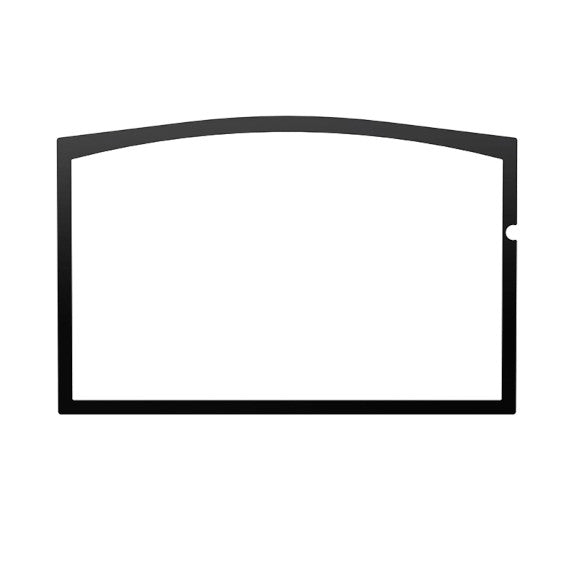

Cast Iron Door Overlay - Black

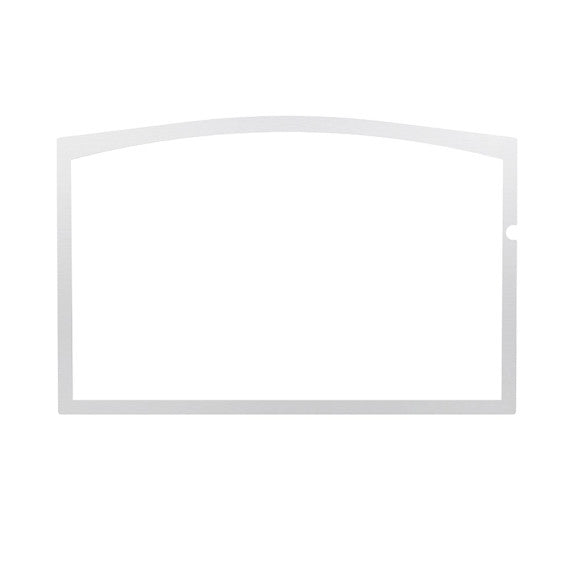

Cast Iron Door Overlay - Brushed Nickel

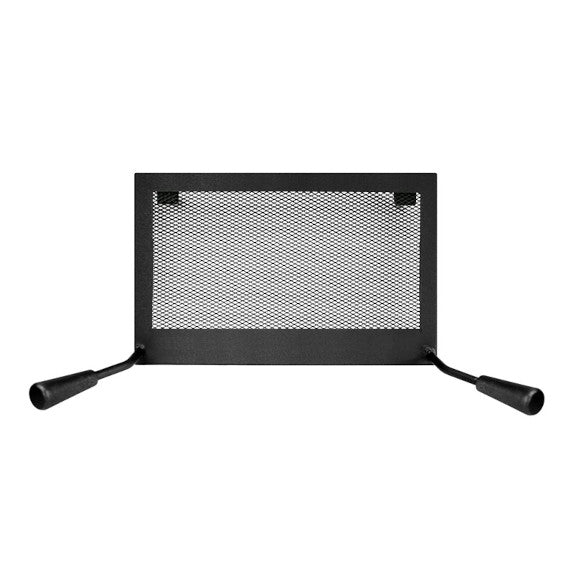

Rigid Firescreen

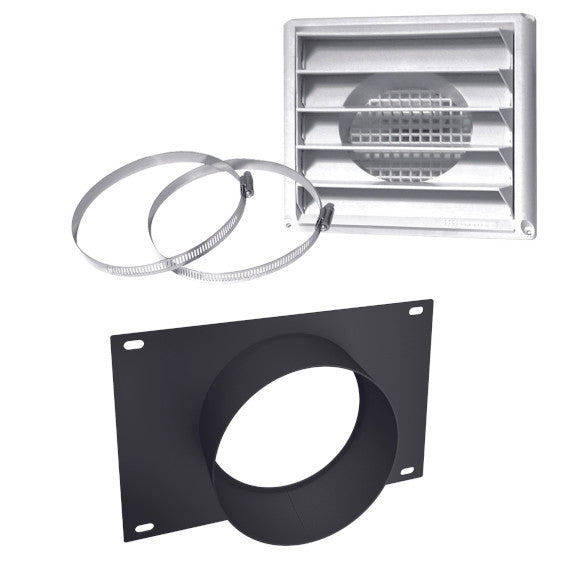

5 in. Fresh Air Intake Kit for Wood Stove on Pedestal

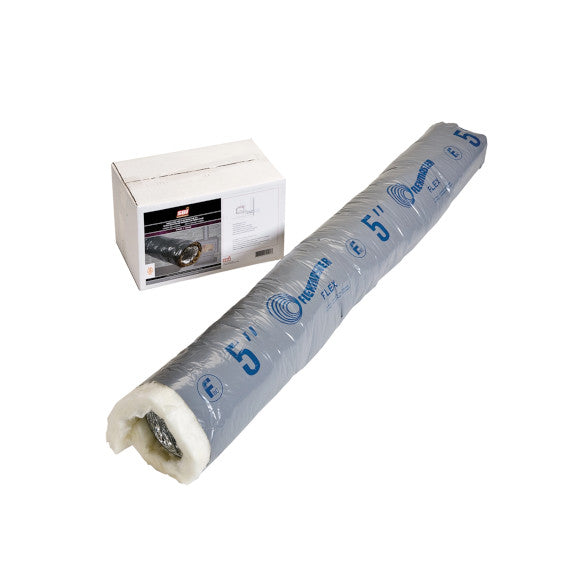

5 in. x 4 ft. Insulated Flex Pipe for Fresh Air Intake Kit

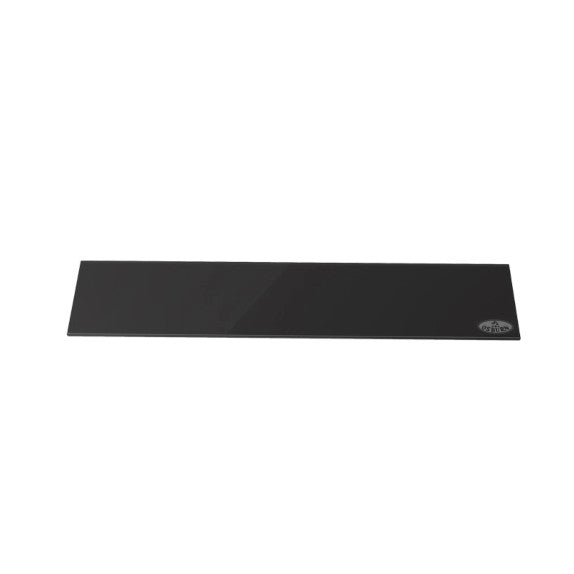

Glass Ash Lip
Product Details
Specifications
Help & Documents
Options
The Osburn 3500 has been noted as the unit to defense the harsh winter months for a spacious home. This Osburn wood stove is user friendly with non-catalytic technology and significantly reduces your fuel consumption compared to older stoves. Not only can you protect yourself against the cold winter months, but you can feel good about your environmental awareness with emissions under 2.0 g/h and optimum efficiency at 77%.The Osburn 3500 includes a premium blower and is capable of heating up to 2,700 square feet. This wood stove has one of the highest burn times out of all of our stove options at 10 hours and a firebox volume of 3.5 cubic feet. If you are looking for a powerful freestanding wood stove that can keep up with the cold weather, this is the stove you've been looking for.
Features
- High-efficiency wood stove 2020 EPA approved
- Recommended heating area : 1,000 - 2,700 square feet
- Color: Black
- Maximum log length : 22"
- Overall firebox volume : 3.5
- Non-catalytic combustion technology
- Optimum efficiency : 77%
- Emissions (grams/hour) : 1.32 g/h
- Baffle : High heat-resistant C-cast
- Maximum burn time : 10 hours
- Firebox lined with refractory bricks for better heat distribution
- Stainless-steel secondary-air system improving gas combustion
- Recommended chimney diameter : 6"
Measuring for Your Osburn 3500
Stove Insert Measurement Guides
Installing Your New Wood Stove
Video of Installing a Wood Burning Stove
Osburn 3500 Wood Stove Specifications |
|
| Depth - Overall | 33 1/2" |
| Height - Overall | 34 3/4" |
| Width - Overall | 28 7/8" |
| Firebox dimensions (Depth) | 20 1/8" |
| Firebox dimensions (Width) | 22 7/8" |
| Firebox dimensions (Height) | 12 7/8" |
| Type of Fuel | Wood |
| Maximum log length | 22" |
| Log positioning | Over width |
| Recommended Heating Area (sq. ft.) | 1,000-2,700 |
| Firebox volume (cu. ft.) | 3.5 |
| Door opening dimensions (Width) | 19" |
| Door opening dimensions (Height) | 9 7/8" |
| Type of Door | Single, glass with steel frame |
| Glass Surface | 18 7/8" x 11 3/4" |
| Glass Type | Ceramic glass |
| Weight | 524 lb (238 kg) |
| Recommended chimney diameter | 6" |
| Minimum chimney height (feet) | 15' |
| Flue Outlet Diameter | 6" |
| Minimum floor protection in front of unit | 18" CAN/16"USA |
| Center line of flue outlet to the back | 11 1/4" |
| Center line of flue outlet to the side | 14 3/8" |
| Maximum output - EPA test wood | 49,500 BTU/h |
| Maximum output - seasoned cord wood | 110,000 BTU/h |
| Steel thickness (top) | 5/16" |
| Optimum efficiency | 77% |
| Emissions (grams/hour) | 1.32 g/h |
| Baffle | High heat-resistant C-cast |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (emissions) | EPA |
| Canadian Standard (safety) | ULC-S627 |
| USA standard (safety) | UL 1482/UL 737 |
| Warranty | Limited lifetime |
Minimum Clearances to Combustibles
| Osburn 3500 Wood Stove Minimum Clearances to Combustibles* | ||
| Single Wall Stove Pipe | Double Wall Stove Pipe | |
| Clearance - back wall | 13" US / 13 1/4" CA | 6" US / 6" CA |
| Clearance - placed in a corner | 7 1/4" US / 7 1/4" CA | 7" US / 7" CA |
| Clearance - side wall | 14" US / 14" CA | 14" US / 14" CA |
| Clearance – top (measured from the platform on which the appliance is installed)** | 84" US / 84" CA | 84" US / 84" CA |
| Clearance - minimum floor protection in front of the fireplace | 16" US / 18" CA | 16" US / 18" CA |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||
Product Details:
The Osburn 3500 has been noted as the unit to defense the harsh winter months for a spacious home. This Osburn wood stove is user friendly with non-catalytic technology and significantly reduces your fuel consumption compared to older stoves. Not only can you protect yourself against the cold winter months, but you can feel good about your environmental awareness with emissions under 2.0 g/h and optimum efficiency at 77%.The Osburn 3500 includes a premium blower and is capable of heating up to 2,700 square feet. This wood stove has one of the highest burn times out of all of our stove options at 10 hours and a firebox volume of 3.5 cubic feet. If you are looking for a powerful freestanding wood stove that can keep up with the cold weather, this is the stove you've been looking for.
Features
- High-efficiency wood stove 2020 EPA approved
- Recommended heating area : 1,000 - 2,700 square feet
- Color: Black
- Maximum log length : 22"
- Overall firebox volume : 3.5
- Non-catalytic combustion technology
- Optimum efficiency : 77%
- Emissions (grams/hour) : 1.32 g/h
- Baffle : High heat-resistant C-cast
- Maximum burn time : 10 hours
- Firebox lined with refractory bricks for better heat distribution
- Stainless-steel secondary-air system improving gas combustion
- Recommended chimney diameter : 6"
Measuring for Your Osburn 3500
Stove Insert Measurement Guides
Installing Your New Wood Stove
Video of Installing a Wood Burning Stove
Specifications:
Osburn 3500 Wood Stove Specifications |
|
| Depth - Overall | 33 1/2" |
| Height - Overall | 34 3/4" |
| Width - Overall | 28 7/8" |
| Firebox dimensions (Depth) | 20 1/8" |
| Firebox dimensions (Width) | 22 7/8" |
| Firebox dimensions (Height) | 12 7/8" |
| Type of Fuel | Wood |
| Maximum log length | 22" |
| Log positioning | Over width |
| Recommended Heating Area (sq. ft.) | 1,000-2,700 |
| Firebox volume (cu. ft.) | 3.5 |
| Door opening dimensions (Width) | 19" |
| Door opening dimensions (Height) | 9 7/8" |
| Type of Door | Single, glass with steel frame |
| Glass Surface | 18 7/8" x 11 3/4" |
| Glass Type | Ceramic glass |
| Weight | 524 lb (238 kg) |
| Recommended chimney diameter | 6" |
| Minimum chimney height (feet) | 15' |
| Flue Outlet Diameter | 6" |
| Minimum floor protection in front of unit | 18" CAN/16"USA |
| Center line of flue outlet to the back | 11 1/4" |
| Center line of flue outlet to the side | 14 3/8" |
| Maximum output - EPA test wood | 49,500 BTU/h |
| Maximum output - seasoned cord wood | 110,000 BTU/h |
| Steel thickness (top) | 5/16" |
| Optimum efficiency | 77% |
| Emissions (grams/hour) | 1.32 g/h |
| Baffle | High heat-resistant C-cast |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (emissions) | EPA |
| Canadian Standard (safety) | ULC-S627 |
| USA standard (safety) | UL 1482/UL 737 |
| Warranty | Limited lifetime |
Minimum Clearances to Combustibles
| Osburn 3500 Wood Stove Minimum Clearances to Combustibles* | ||
| Single Wall Stove Pipe | Double Wall Stove Pipe | |
| Clearance - back wall | 13" US / 13 1/4" CA | 6" US / 6" CA |
| Clearance - placed in a corner | 7 1/4" US / 7 1/4" CA | 7" US / 7" CA |
| Clearance - side wall | 14" US / 14" CA | 14" US / 14" CA |
| Clearance – top (measured from the platform on which the appliance is installed)** | 84" US / 84" CA | 84" US / 84" CA |
| Clearance - minimum floor protection in front of the fireplace | 16" US / 18" CA | 16" US / 18" CA |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||
