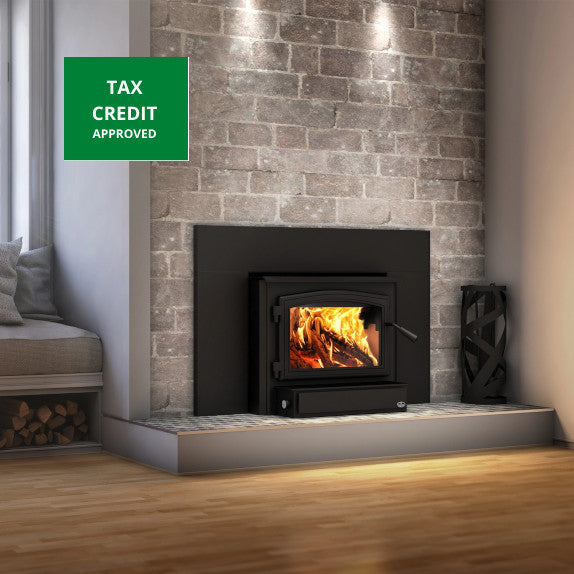

Osburn 2000 Wood Burning Insert

Product Images

Osburn 2000 Wood Burning Insert

Osburn 2000 Wood Burning Insert

Osburn 2000 Wood Burning Insert

Osburn 2000 Wood Burning Insert

Osburn 2000 Wood Burning Insert

Osburn 2000 Wood Burning Insert

Osburn 2000 Wood Burning Insert

Osburn 2000 Wood Burning Insert

Osburn 2000 Wood Burning Insert

Osburn 2000 Wood Burning Insert

Osburn 2000 Wood Burning Insert

Osburn 2000 Wood Burning Insert

Cast Iron Door Overlay Black

Cast Iron Door Overlay Black

Cast Iron Door Overlay - Brushed Nick

Cast Iron Door Overlay - Brushed Nick

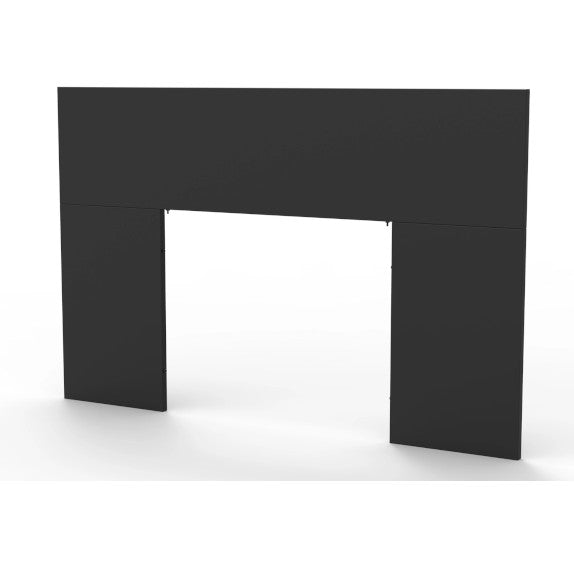

Regular Faceplate 29 in. x 44 in.

Regular Faceplate 29 in. x 44 in.

Large Faceplate 32 in. x 50 in.

Large Faceplate 32 in. x 50 in.

Cuttable Faceplate (18 gauge) 32 in. x 50 in.

Cuttable Faceplate (18 gauge) 32 in. x 50 in.

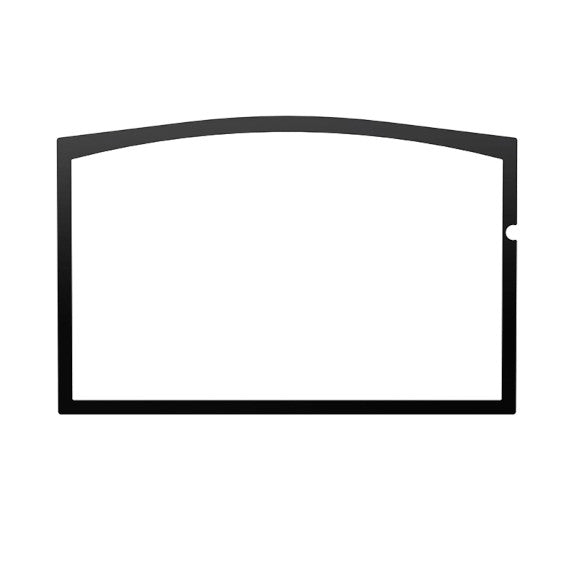

Faceplate Trim Kit Black

Faceplate Trim Kit Black

Faceplate Trim Kit Brushed Nickel

Faceplate Trim Kit Brushed Nickel

5 in. Fresh Air Intake Kit Oval

5 in. Fresh Air Intake Kit Oval

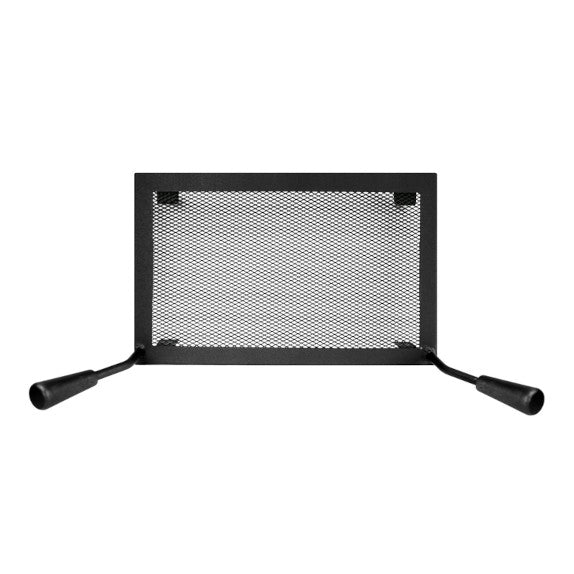

Rigid Firescreen

Rigid Firescreen

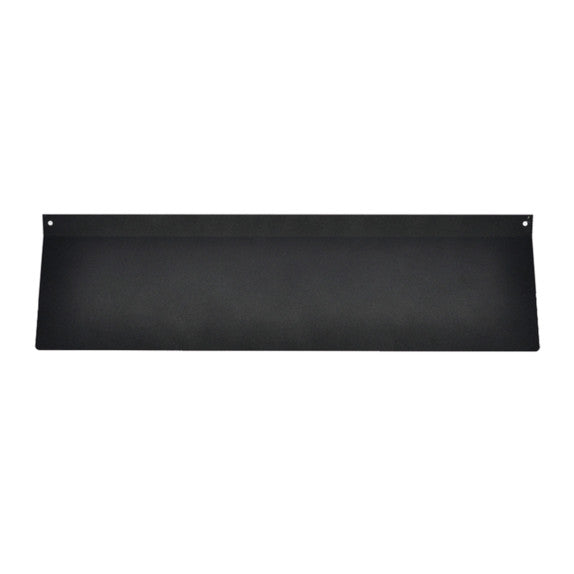

Heat Shield For Surround / Shelf - 7 3/16 in. x 26 in.

Heat Shield For Surround / Shelf - 7 3/16 in. x 26 in.

5 in. Fresh Air Intake Register with Airtight Damper

5 in. Fresh Air Intake Register with Airtight Damper
Description:
Approx. Heating Area: 500-2100 sq. ft.Max. Output: 75,000 BTU/hTax Credit Eligible

Approx. Heating Area: 500-2100 sq. ft.

Max. Output: 75,000 BTU/h

Tax Credit Eligible

Loading...
Configure for Price

Optional Add Ons:

Configure for Price

Product Details

Specifications

Help & Documents

Options

With its 2.4 cubic foot firebox, the Osburn 2000 insert is 2020 EPA compliant and offers an alternative to the people who love its freestanding counterpart. The two models share the same high quality combustion properties and many of the same features. The Osburn 2000 fireplace insert comes with a standard high-power, heat-activated 144CFM fan strategically positioned to redistribute the heat from the firebox into the room. The 2000 insert is designed to receive an optional faceplate that can cover a masonry hearth up to 32 inches (81 cm) high and 50 inches (127 cm) wide. The door overlay is available in black or brushed nickel plated finishes. The faceplate trims are available in black or nickel.

Features:

  • High-efficiency appliance 2020 EPA approved
  • 144 CFM heat circulating blower
  • Recommended heating area : 500 -2,100 square feet
  • Maximum burn time : 8 hours
  • Maximum heat output : 75,000 BTU/h
  • Glass air-wash system
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless-steel secondary-air system improving gas combustion
  • Approved Chimney Liner: Rock-Flex Stainless Flexible Liner Kit

Measuring for Your Osburn 2000

​Fireplace Insert Calculator

Stove Insert Measurement Guides

​Chimney Liner Sizing Guide

Installing Your New Wood Fireplace Insert

Video of Installing a Wood Burning Fireplace Insert

Osburn 2000 Insert Specifications
Minimum fireplace opening (Height) 23 3/8"
Minimum fireplace opening (Width) 28 7/8"
Minimum fireplace opening (Depth) 15 3/4"
Firebox dimensions (Height) 11 7/8"
Firebox dimensions (Width) 21"
Firebox dimensions (Depth) 16 3/4"
Height - Overall 23 1/8"
Width - Overall 28 3/8"
Depth - Overall 26 3/8"
Door opening dimensions (Height) 9"
Door opening dimensions (Width) 17 1/2"
Type of Door Single, glass with cast iron frame
Recommended Heating Area (sq. ft.) 500-2100
Blower Included Yes
Firebox volume (cu. ft.) 2.4
Maximum log length 20"
Log positioning Over width
Glass Surface 10 1/4" X 17 1/8"
Glass Type Ceramic glass
Weight 407 lb (185 kg)
Type of Chimney (°F) Liner - ULC-S635, CAN/ULC-S640, UL1777
Type of Fuel Wood
Maximum heat output - seasoned cord wood 75,000 BTU/h
Maximum output - EPA test wood 28,600 BTU/h
Center line of flue outlet to the back 6 7/8"
Center line of flue outlet to the side 13 1/2"
Canadian Standard (emissions) CSA B415.1-10
USA standard (emissions) EPA 2020
Canadian Standard (safety) ULC S628
USA standard (safety) UL 1482 / UL737
Steel thickness (body) 3/16"
Steel thickness (top) 5/16"
Optimum efficiency 77 %
Emissions (grams/hour) 1.54 g/h
Recommended chimney diameter (inches) 6
Baffle High heat-resistant C-cast
Warranty Limited lifetime

Minimum Clearances to Combustibles

Osburn 2000 Insert Minimum Clearances to Combustibles*
Clearance – top (measured from the platform on which the appliance is installed)** 84"
Clearance – combustible side mantle to unit 9"
Clearance – combustible top mantle to unit 27"
Clearance – combustible side wall to unit 16"
Clearance – minimum floor protection in front of the appliance 16" US / 18" CA
Clearance – top shelf to unit 27"
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.

Manual

Osburn 2000 Wood Insert Manual

Osburn 2000 Wood Insert Dimensions

Tax Credit Information Osburn 2000

Click here to view more information about the tax credit

Osburn Tax Certificate

Osburn Efficiency Summary

Door Overlay & Faceplate Option Details

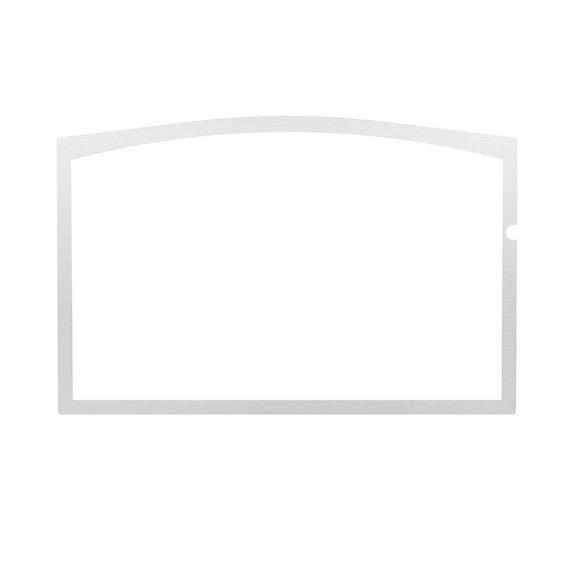

Door Overlay

The Door Overlay is required to complete the installation. The Door Overlay is available in either black or brushed nickel finish. The options for the Door Overlay allow you to tailor the look of the fireplace insert to your liking. The Black Door Overlay gives the fireplace insert more of a traditional style, while the Brushed Nickel Door Overlay gives the stove a more sleek and modern look. The Door Overlay easily installs to the stove with the included bolts.

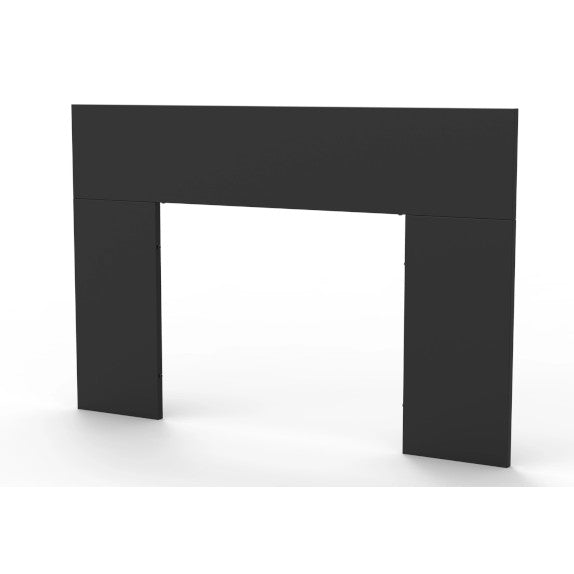

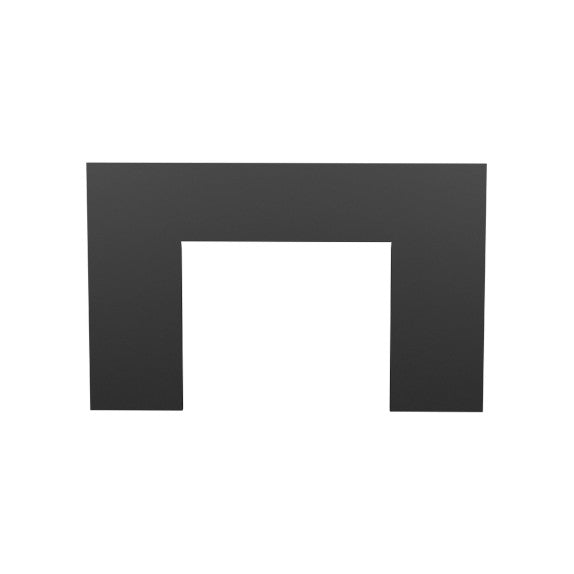

Faceplate

The Faceplate is the component that flashes around the fireplace insert and covers the fireplace. The Faceplate is available in two sizes: 29" x 44" and 32" x 50". The size you choose should be based on the opening of your existing fireplace. Choose the 29" x 44" Faceplate size if the opening of your fireplace is less than 29" x 44". If your fireplace opening is greater than 29" x 44", you will want to select the 32" x 50" Faceplate size.

Cuttable Faceplate (18 gauge) 32" x 50"

If you have a nice arched fireplace and would like the Faceplate to conform to the shape to show the nice field stone keystone, then the Cuttable Faceplate is for you. Simply trace the shape onto the Faceplate and use metal cutting snips to cut the Faceplate to size and shape. Making a template is generally the easiest way to transfer the shape. The Cuttable Faceplate does not require a Faceplate Trim Kit.

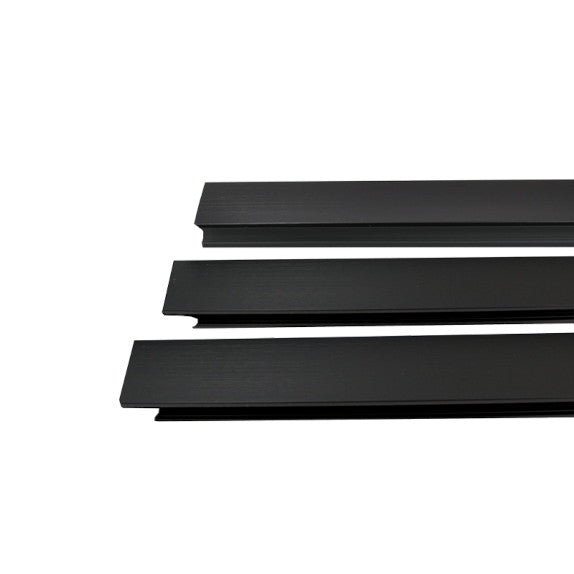

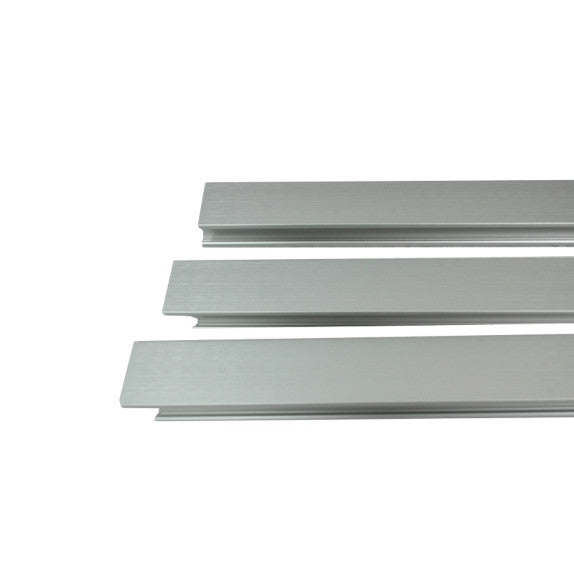

Faceplate Trim

The Faceplate Trim is required for finishing the installation of the Regular or Large Faceplate and completes the wood insert installation. The Faceplate Trim is available in either black or brushed nickel. Choose the size for the Faceplate Trim based on the size of the Faceplate you chose. You have the option to match the Faceplate Trim to the same color as the door overlay. Or, you can mismatch to add dimension to the style of the fireplace insert. Note: The Faceplate Trim is not needed if you chose the Cuttable Faceplate.

Optional Accessories:

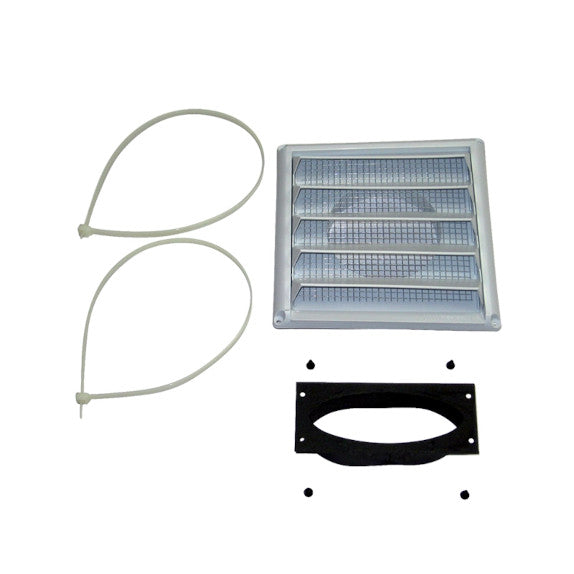

5" Fresh Air Intake Kit Oval

The 5" Fresh Air Oval Kit is required if you plan on connecting a fresh air intake pipe. The oval adapter kit comes with the oval adapter, 2 clamps and the fresh air intake register hood. The oval adapter is intended for 5" fresh air intake pipe. You will have to manually ovalize the flexible intake pipe to make the connection to the adapter. The oval adapter can be positioned on either side of the stove.

Rigid Fire Screen

The Rigid Fire Screen allows you to burn wood in the fireplace insert with the door open just like an old-time fireplace. Hear the crackle of the wood, watch the flames dance around in the firebox and relax around the wood insert on a cold winter's night. The Rigid Fire Screen is easy to install and easy to remove when you are ready to load more wood. The fireplace insert should not be burning with the door open without the firescreen.

Heat Shield For Surround / Shelf - 7 3/16" x 26"

The optional Heat Shield for Surround Shelf is the easiest way to lower a combustible mantel or shelf down closer to the fireplace insert. With the Heat Shield install, you can lower your combustible mantel to 21" above the stove. The combustible mantel must be wider than 12". The standard clearance for a combustible mantel is 27" above the stove. The Heat Shield will give you more freedom and flexibility when planning the layout of the room.

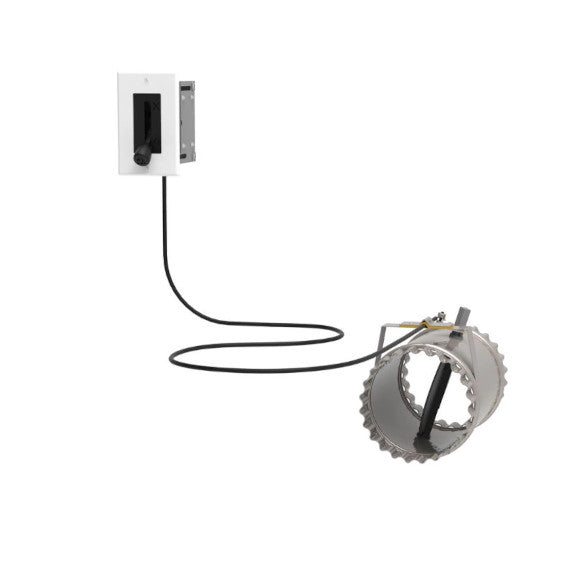

5" Fresh Air Intake Register with Airtight Damper

5" Fresh Air Intake Register with Airtight Damper opens and closes the fresh air supply to a wood stove insert. It's simple mechanism makes it possible to close the damper tightly when the wood stove insert is not in use. This will ensure the wood stove insert is not being cooled while the stove is not in use. Fresh Air Intake with Damper Installation Guide

Optional Chimney Liner Kit

Rock-Flex 316Ti stainless steel chimney liner kits are UL listed and the perfect choice to install for your new wood burning insert. Each kit includes the 316Ti Flexible Chimney Liner, Vertical Appliance Connector, 13 x 13 in. Premium Top Plate, and Round Rain Cap.

Tax Credit Information

Osburn 2000 Wood Fireplace Insert is EPA rated and has a HHV rating of 75% which qualifies for the wood and pellet stove tax credit through the end of 2032. From January 2023 through December 2032 you can receive up to a 30% tax credit for the installation and parts required, such as chimney liner and insulation. This is one of the largest tax credits the wood and pellet stove industry has ever had. If you are looking to update your old drafty fireplace consider the Osburn 2000 Wood Fireplace Insert.

Product Details:

With its 2.4 cubic foot firebox, the Osburn 2000 insert is 2020 EPA compliant and offers an alternative to the people who love its freestanding counterpart. The two models share the same high quality combustion properties and many of the same features. The Osburn 2000 fireplace insert comes with a standard high-power, heat-activated 144CFM fan strategically positioned to redistribute the heat from the firebox into the room. The 2000 insert is designed to receive an optional faceplate that can cover a masonry hearth up to 32 inches (81 cm) high and 50 inches (127 cm) wide. The door overlay is available in black or brushed nickel plated finishes. The faceplate trims are available in black or nickel.

Features:

  • High-efficiency appliance 2020 EPA approved
  • 144 CFM heat circulating blower
  • Recommended heating area : 500 -2,100 square feet
  • Maximum burn time : 8 hours
  • Maximum heat output : 75,000 BTU/h
  • Glass air-wash system
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless-steel secondary-air system improving gas combustion
  • Approved Chimney Liner: Rock-Flex Stainless Flexible Liner Kit

Measuring for Your Osburn 2000

​Fireplace Insert Calculator

Stove Insert Measurement Guides

​Chimney Liner Sizing Guide

Installing Your New Wood Fireplace Insert

Video of Installing a Wood Burning Fireplace Insert

Specifications:

Osburn 2000 Insert Specifications
Minimum fireplace opening (Height) 23 3/8"
Minimum fireplace opening (Width) 28 7/8"
Minimum fireplace opening (Depth) 15 3/4"
Firebox dimensions (Height) 11 7/8"
Firebox dimensions (Width) 21"
Firebox dimensions (Depth) 16 3/4"
Height - Overall 23 1/8"
Width - Overall 28 3/8"
Depth - Overall 26 3/8"
Door opening dimensions (Height) 9"
Door opening dimensions (Width) 17 1/2"
Type of Door Single, glass with cast iron frame
Recommended Heating Area (sq. ft.) 500-2100
Blower Included Yes
Firebox volume (cu. ft.) 2.4
Maximum log length 20"
Log positioning Over width
Glass Surface 10 1/4" X 17 1/8"
Glass Type Ceramic glass
Weight 407 lb (185 kg)
Type of Chimney (°F) Liner - ULC-S635, CAN/ULC-S640, UL1777
Type of Fuel Wood
Maximum heat output - seasoned cord wood 75,000 BTU/h
Maximum output - EPA test wood 28,600 BTU/h
Center line of flue outlet to the back 6 7/8"
Center line of flue outlet to the side 13 1/2"
Canadian Standard (emissions) CSA B415.1-10
USA standard (emissions) EPA 2020
Canadian Standard (safety) ULC S628
USA standard (safety) UL 1482 / UL737
Steel thickness (body) 3/16"
Steel thickness (top) 5/16"
Optimum efficiency 77 %
Emissions (grams/hour) 1.54 g/h
Recommended chimney diameter (inches) 6
Baffle High heat-resistant C-cast
Warranty Limited lifetime

Minimum Clearances to Combustibles

Osburn 2000 Insert Minimum Clearances to Combustibles*
Clearance – top (measured from the platform on which the appliance is installed)** 84"
Clearance – combustible side mantle to unit 9"
Clearance – combustible top mantle to unit 27"
Clearance – combustible side wall to unit 16"
Clearance – minimum floor protection in front of the appliance 16" US / 18" CA
Clearance – top shelf to unit 27"
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.

Help & Documents:

Manual

Osburn 2000 Wood Insert Manual

Osburn 2000 Wood Insert Dimensions

Tax Credit Information Osburn 2000

Click here to view more information about the tax credit

Osburn Tax Certificate

Osburn Efficiency Summary

Options:

Door Overlay & Faceplate Option Details

Door Overlay

The Door Overlay is required to complete the installation. The Door Overlay is available in either black or brushed nickel finish. The options for the Door Overlay allow you to tailor the look of the fireplace insert to your liking. The Black Door Overlay gives the fireplace insert more of a traditional style, while the Brushed Nickel Door Overlay gives the stove a more sleek and modern look. The Door Overlay easily installs to the stove with the included bolts.

Faceplate

The Faceplate is the component that flashes around the fireplace insert and covers the fireplace. The Faceplate is available in two sizes: 29" x 44" and 32" x 50". The size you choose should be based on the opening of your existing fireplace. Choose the 29" x 44" Faceplate size if the opening of your fireplace is less than 29" x 44". If your fireplace opening is greater than 29" x 44", you will want to select the 32" x 50" Faceplate size.

Cuttable Faceplate (18 gauge) 32" x 50"

If you have a nice arched fireplace and would like the Faceplate to conform to the shape to show the nice field stone keystone, then the Cuttable Faceplate is for you. Simply trace the shape onto the Faceplate and use metal cutting snips to cut the Faceplate to size and shape. Making a template is generally the easiest way to transfer the shape. The Cuttable Faceplate does not require a Faceplate Trim Kit.

Faceplate Trim

The Faceplate Trim is required for finishing the installation of the Regular or Large Faceplate and completes the wood insert installation. The Faceplate Trim is available in either black or brushed nickel. Choose the size for the Faceplate Trim based on the size of the Faceplate you chose. You have the option to match the Faceplate Trim to the same color as the door overlay. Or, you can mismatch to add dimension to the style of the fireplace insert. Note: The Faceplate Trim is not needed if you chose the Cuttable Faceplate.

Optional Accessories:

5" Fresh Air Intake Kit Oval

The 5" Fresh Air Oval Kit is required if you plan on connecting a fresh air intake pipe. The oval adapter kit comes with the oval adapter, 2 clamps and the fresh air intake register hood. The oval adapter is intended for 5" fresh air intake pipe. You will have to manually ovalize the flexible intake pipe to make the connection to the adapter. The oval adapter can be positioned on either side of the stove.

Rigid Fire Screen

The Rigid Fire Screen allows you to burn wood in the fireplace insert with the door open just like an old-time fireplace. Hear the crackle of the wood, watch the flames dance around in the firebox and relax around the wood insert on a cold winter's night. The Rigid Fire Screen is easy to install and easy to remove when you are ready to load more wood. The fireplace insert should not be burning with the door open without the firescreen.

Heat Shield For Surround / Shelf - 7 3/16" x 26"

The optional Heat Shield for Surround Shelf is the easiest way to lower a combustible mantel or shelf down closer to the fireplace insert. With the Heat Shield install, you can lower your combustible mantel to 21" above the stove. The combustible mantel must be wider than 12". The standard clearance for a combustible mantel is 27" above the stove. The Heat Shield will give you more freedom and flexibility when planning the layout of the room.

5" Fresh Air Intake Register with Airtight Damper

5" Fresh Air Intake Register with Airtight Damper opens and closes the fresh air supply to a wood stove insert. It's simple mechanism makes it possible to close the damper tightly when the wood stove insert is not in use. This will ensure the wood stove insert is not being cooled while the stove is not in use. Fresh Air Intake with Damper Installation Guide

Optional Chimney Liner Kit

Rock-Flex 316Ti stainless steel chimney liner kits are UL listed and the perfect choice to install for your new wood burning insert. Each kit includes the 316Ti Flexible Chimney Liner, Vertical Appliance Connector, 13 x 13 in. Premium Top Plate, and Round Rain Cap.

Tax Credit Information

Osburn 2000 Wood Fireplace Insert is EPA rated and has a HHV rating of 75% which qualifies for the wood and pellet stove tax credit through the end of 2032. From January 2023 through December 2032 you can receive up to a 30% tax credit for the installation and parts required, such as chimney liner and insulation. This is one of the largest tax credits the wood and pellet stove industry has ever had. If you are looking to update your old drafty fireplace consider the Osburn 2000 Wood Fireplace Insert.

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Joe
Great so far!

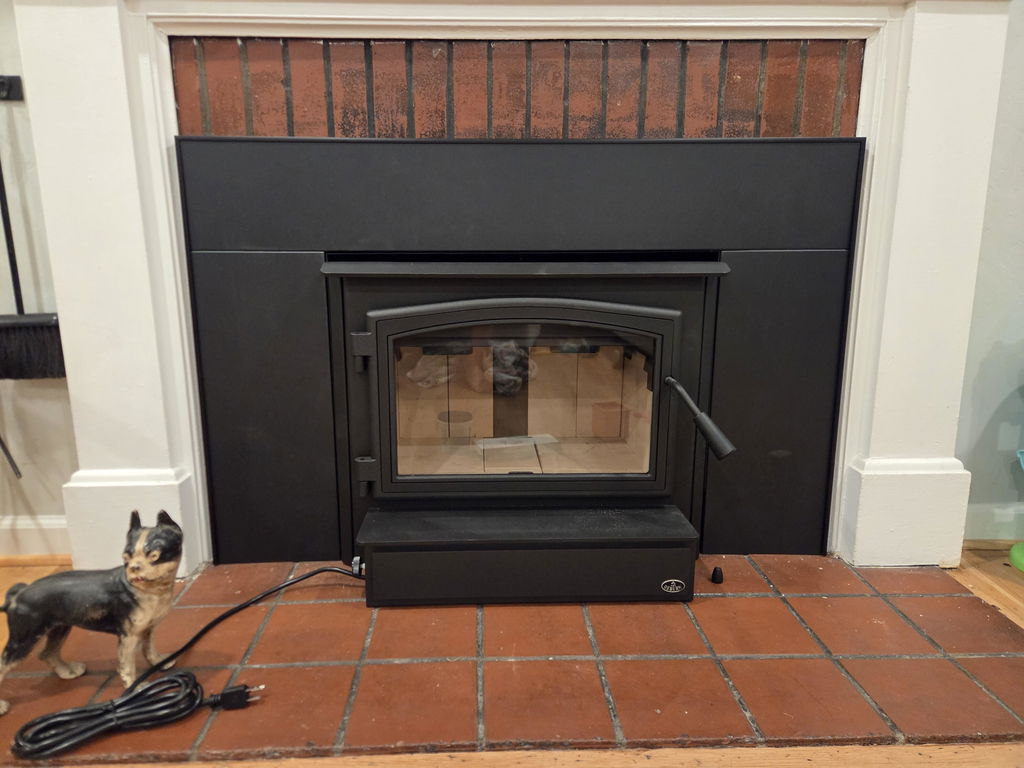

Only had it a few weeks, but so far it's been great! Delivery went smoothly and installed it myself.
