Osburn Matrix Wood Stove
Product Images
Osburn Matrix Wood Stove
Osburn Matrix, Black Side Panels, Steel Panel Top
Osburn Matrix Black Side Panels, Soap Stone Top
Osburn Matrix, Steel Panel Top, Soap Stone Side Panel

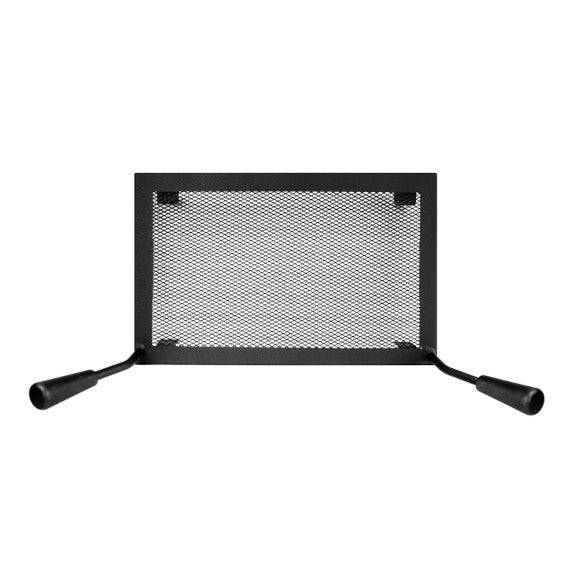

Rigid Fire Screen
Steel Panel Top
Soap Stone Panel Top (OA10703)
Black Side Panel Kit
Soap Stone Panel Kit

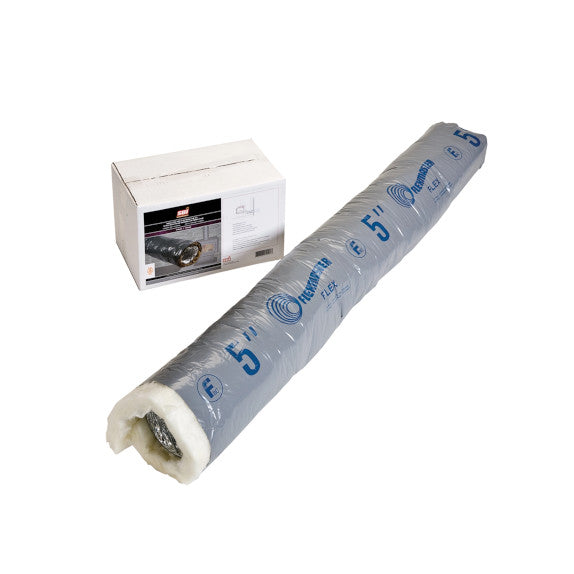

Fresh Air Intake Flexible Insul. Pipe (4 ft. length / 5 in. diameter

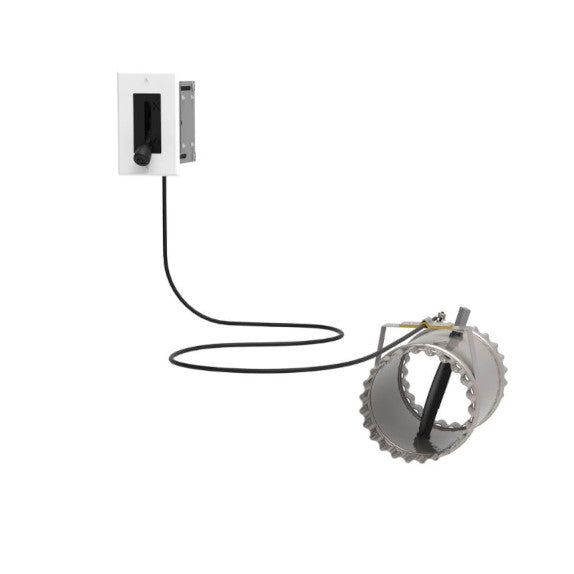

5 in. Fresh Air Intake Register with Airtight Damper
Product Details
Specifications
Help & Documents
Options
The Osburn Matrix wood stove has an impressive emissions rate at 1.54 g/h as well as a maximum heat output of 75,000 BTU/h. The Osburn Matrix draws attention with its clean and modern look which will add beauty and heat to your living space. The top of the stove is made of cast iron with the option to add two rich pieces of soapstone. You can customize the stove further by adding the optional soapstone side shields. Soapstone is a natural stone that holds in heat and radiates it to the space surrounding it. Logs can be conveniently placed underneath the large firebox, making the Matrix a practical and elegant heating machine.
Features
- High-efficiency appliance 2020 EPA approved
- Recommended heating area : 500 - 2,100 square feet
- Color: Black
- Maximum log length : 20"
- Overall firebox volume : 2.4
- Non-catalytic combustion technology
- Optimum efficiency : 77%
- Emissions (grams/hour) : 1.54 g/h
- 130 CFM Blower Included
- Baffle : High heat-resistant C-cast
- Maximum burn time : 8 hours
- Firebox lined with refractory bricks for better heat distribution
- Stainless-steel secondary-air system improving gas combustion
- Recommended chimney diameter : 6"
Measuring for Your Osburn Matrix
Stove Insert Measurement Guides
Installing Your New Wood Stove
Osburn Matrix Wood Stove Specifications |
|
| Depth - Overall | 25" |
| Height - Overall | 36 7/8" |
| Width - Overall | 27 1/8" |
| Firebox dimensions (Depth) | 16 1/2" |
| Firebox dimensions (Width) | 21" |
| Firebox dimensions (Height) | 11 7/8" |
| Type of Fuel | Wood |
| Maximum log length | 20" |
| Log positioning | Over width |
| Recommended Heating Area (sq. ft.) | 500-2,100 |
| Firebox volume (cu. ft.) | 2.4 |
| Door opening dimensions (Width) | 17 1/2" |
| Door opening dimensions (Height) | 8 3/4" |
| Type of Door | Single, glass with cast iron frame |
| Glass Surface | 19 5/8" X 11 7/8" |
| Glass Type | Ceramic glass |
| Weight | 506 lb (230 kg) |
| Recommended chimney diameter | 6" |
| Flue Outlet Diameter | 6" |
| Minimum chimney height (feet) | 12 |
| Type of Chimney (°F) | UL 103 HT |
| Center line of flue outlet to the back | 6 3/8" |
| Center line of flue outlet to the side | 13 1/2" |
| Maximum output - EPA test wood | 28,600 BTU/h |
| Maximum output - seasoned cord wood | 75,000 BTU/h |
| Steel thickness (body) | 3/16" |
| Steel thickness (top) | 5/16" |
| Optimum efficiency | 77% |
| Emissions (grams/hour) | 1.54 g/h |
| Baffle | High heat-resistant C-cast |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S627 |
| USA standard (safety) | UL 737, UL 1482 |
| Mobile Home Approved | Yes, with fresh air intake |
| Warranty | Limited lifetime |
Minimum Clearances to Combustibles
| Osburn Matrix Wood Stove Minimum Clearances to Combustibles* | ||
| Single Wall Stove Pipe | Double Wall Stove Pipe | |
| Clearance - back wall | 11" US / 14 1/2" CA | 6" US / 6" CA |
| Clearance - placed in a corner | 10" US / 10" CA | 7" US / 7" CA |
| Clearance - side wall | 16" US / 17" CA | 16" US / 17" CA |
| Clearance – top (measured from the platform on which the appliance is installed)** | 84" US / 84" CA | 84" US / 84" CA |
| Clearance - minimum floor protection in front of the fireplace | 16" US / 18" CA | 16" US / 18" CA |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||
Product Details:
The Osburn Matrix wood stove has an impressive emissions rate at 1.54 g/h as well as a maximum heat output of 75,000 BTU/h. The Osburn Matrix draws attention with its clean and modern look which will add beauty and heat to your living space. The top of the stove is made of cast iron with the option to add two rich pieces of soapstone. You can customize the stove further by adding the optional soapstone side shields. Soapstone is a natural stone that holds in heat and radiates it to the space surrounding it. Logs can be conveniently placed underneath the large firebox, making the Matrix a practical and elegant heating machine.
Features
- High-efficiency appliance 2020 EPA approved
- Recommended heating area : 500 - 2,100 square feet
- Color: Black
- Maximum log length : 20"
- Overall firebox volume : 2.4
- Non-catalytic combustion technology
- Optimum efficiency : 77%
- Emissions (grams/hour) : 1.54 g/h
- 130 CFM Blower Included
- Baffle : High heat-resistant C-cast
- Maximum burn time : 8 hours
- Firebox lined with refractory bricks for better heat distribution
- Stainless-steel secondary-air system improving gas combustion
- Recommended chimney diameter : 6"
Measuring for Your Osburn Matrix
Stove Insert Measurement Guides
Installing Your New Wood Stove
Specifications:
Osburn Matrix Wood Stove Specifications |
|
| Depth - Overall | 25" |
| Height - Overall | 36 7/8" |
| Width - Overall | 27 1/8" |
| Firebox dimensions (Depth) | 16 1/2" |
| Firebox dimensions (Width) | 21" |
| Firebox dimensions (Height) | 11 7/8" |
| Type of Fuel | Wood |
| Maximum log length | 20" |
| Log positioning | Over width |
| Recommended Heating Area (sq. ft.) | 500-2,100 |
| Firebox volume (cu. ft.) | 2.4 |
| Door opening dimensions (Width) | 17 1/2" |
| Door opening dimensions (Height) | 8 3/4" |
| Type of Door | Single, glass with cast iron frame |
| Glass Surface | 19 5/8" X 11 7/8" |
| Glass Type | Ceramic glass |
| Weight | 506 lb (230 kg) |
| Recommended chimney diameter | 6" |
| Flue Outlet Diameter | 6" |
| Minimum chimney height (feet) | 12 |
| Type of Chimney (°F) | UL 103 HT |
| Center line of flue outlet to the back | 6 3/8" |
| Center line of flue outlet to the side | 13 1/2" |
| Maximum output - EPA test wood | 28,600 BTU/h |
| Maximum output - seasoned cord wood | 75,000 BTU/h |
| Steel thickness (body) | 3/16" |
| Steel thickness (top) | 5/16" |
| Optimum efficiency | 77% |
| Emissions (grams/hour) | 1.54 g/h |
| Baffle | High heat-resistant C-cast |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S627 |
| USA standard (safety) | UL 737, UL 1482 |
| Mobile Home Approved | Yes, with fresh air intake |
| Warranty | Limited lifetime |
Minimum Clearances to Combustibles
| Osburn Matrix Wood Stove Minimum Clearances to Combustibles* | ||
| Single Wall Stove Pipe | Double Wall Stove Pipe | |
| Clearance - back wall | 11" US / 14 1/2" CA | 6" US / 6" CA |
| Clearance - placed in a corner | 10" US / 10" CA | 7" US / 7" CA |
| Clearance - side wall | 16" US / 17" CA | 16" US / 17" CA |
| Clearance – top (measured from the platform on which the appliance is installed)** | 84" US / 84" CA | 84" US / 84" CA |
| Clearance - minimum floor protection in front of the fireplace | 16" US / 18" CA | 16" US / 18" CA |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||
