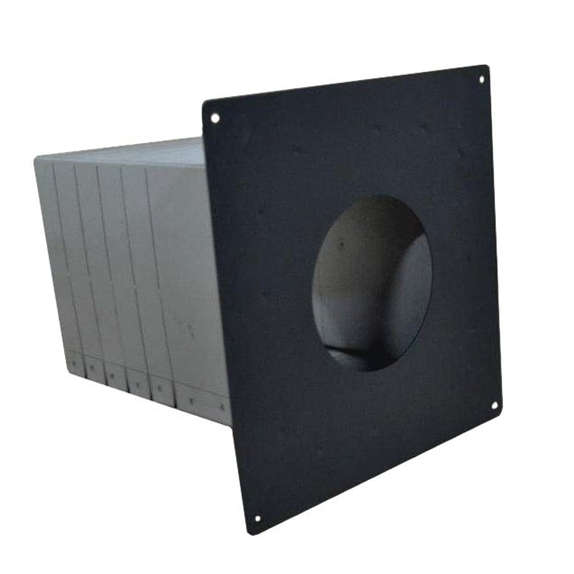

The Rock-Vent Pellet Pipe Wall Pass-Thru is used for through-the-wall installations. The Wall Pass-Thru is adjustable to accommodate various wall thicknesses ranging from 4 to 9 inches. The interior cover plate features a painted black surface for a professional & finished look inside the home. The exterior cover plate is galvalume. The Wall Pass-Thru is most commonly used with a tee connector when the pellet pipe needs to run up the exterior side of the home / structure.

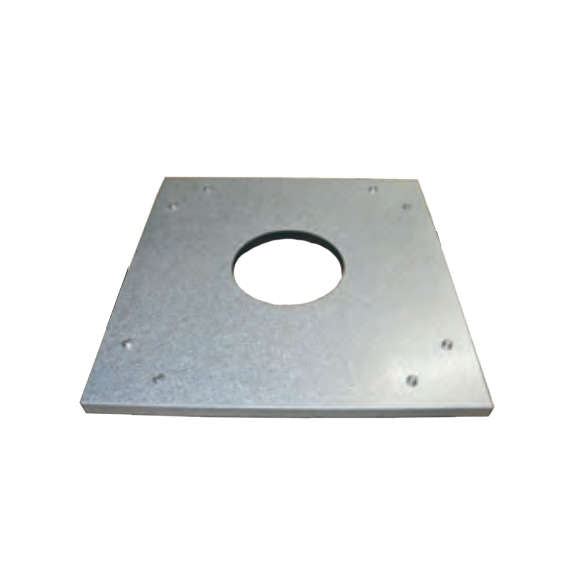

If the outside of the structure is aluminum or vinyl siding, you need to use the Siding Trim Kit along with the Wall Pass-Thru to ensure a leak-free pass thru.
Measurement Chart:
Pellet Vent Wall Pass Thru Thimble
| 3” | 4” | |
| YY | 4”-9” | 4”-9” |
| A | 5.75” | 6.75” |
| B | 3.9” | 4.9” |
| C | 9” | 10” |
| E | 10.5” | 11.5” |
*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
Product Details:
The Rock-Vent Pellet Pipe Wall Pass-Thru is used for through-the-wall installations. The Wall Pass-Thru is adjustable to accommodate various wall thicknesses ranging from 4 to 9 inches. The interior cover plate features a painted black surface for a professional & finished look inside the home. The exterior cover plate is galvalume. The Wall Pass-Thru is most commonly used with a tee connector when the pellet pipe needs to run up the exterior side of the home / structure.
If the outside of the structure is aluminum or vinyl siding, you need to use the Siding Trim Kit along with the Wall Pass-Thru to ensure a leak-free pass thru.
Measurement Chart:
Pellet Vent Wall Pass Thru Thimble
| 3” | 4” | |
| YY | 4”-9” | 4”-9” |
| A | 5.75” | 6.75” |
| B | 3.9” | 4.9” |
| C | 9” | 10” |
| E | 10.5” | 11.5” |
*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
