Rock-Vent Insulated Chimney Pipe Pitched Ceiling Kit
We offer a package that includes the common items needed to complete a Pitched ceiling installation for ease of ordering.

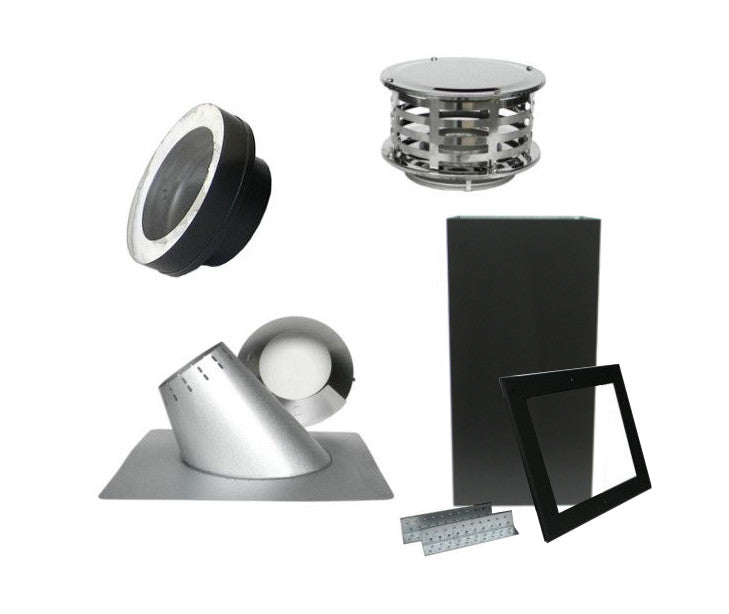

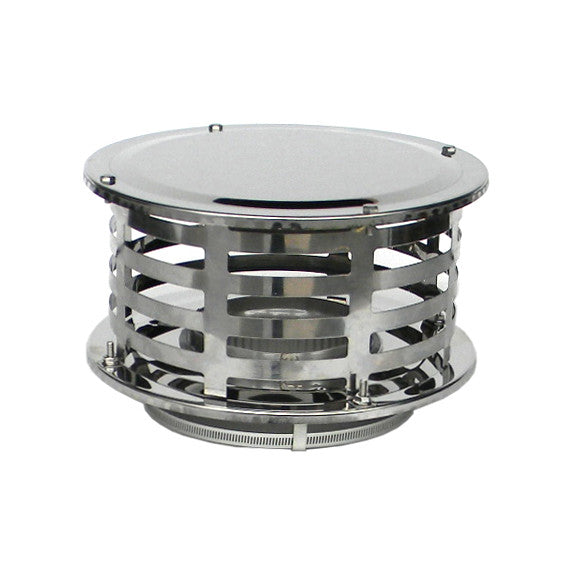

Included in the Pitched ceiling chimney pipe installation kit is the 24" square ceiling support, 0/12 to 6/12 or 7/12 to 12/12 vented roof flashing (galvalume), storm collar, universal male adapter (to connect to black single wall stove pipe(opens in a new tab)), and the chimney rain cap.
Choose the appropriate flashing & roof pitch for your installation: Standard Roof Flashing for shingled roofs or Metal Roof Flashing for metal roofs.
To order the chimney pipe you need to go along with this installation kit, please choose the Rock-Vent Class A chimney pipe(opens in a new tab) for your installation.

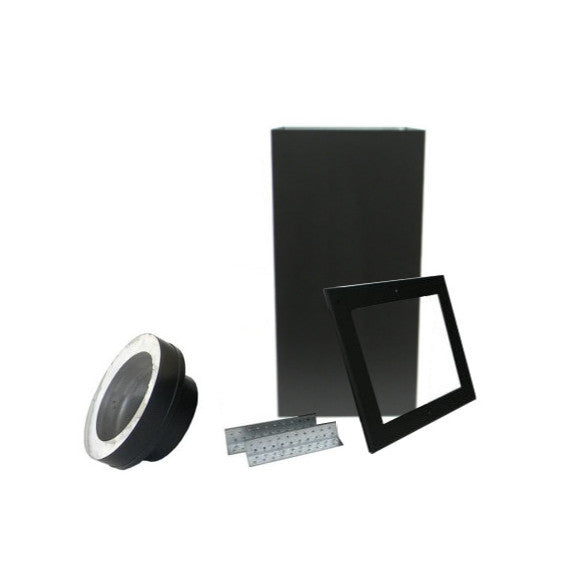

The ceiling support box needs to extend at least 3" lower than the lowest part of the ceiling.
Attic Insulation Shielding Overview:

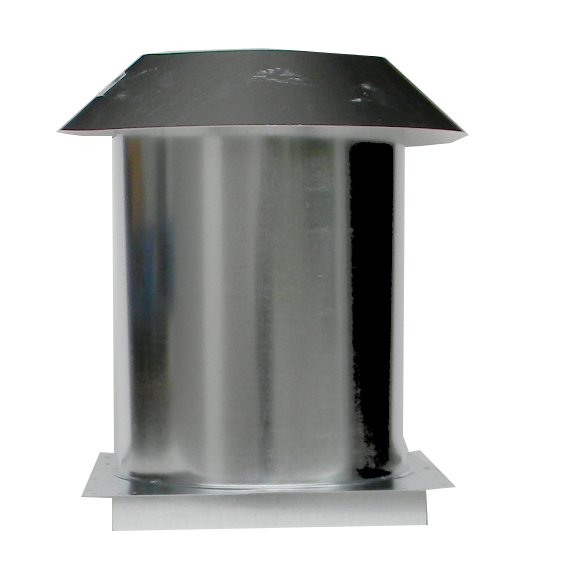

For pitched ceiling installations going through an attic space, if the support box does not protrude through the attic floor at least 10", you will need to install the attic insulation shield.
If the support box does protrude through the attic floor at least 10", you will need to purchase an additional storm collar to install around the chimney pipe and slide it down to fit against the ceiling support (this will act as your attic insulation shield).
Please see manual for more details (below).
Installation & Configuration
Example installation with the most common components needed for passing through a combustible roof / ceiling. Please note, some of the components displayed in this image are sold separately.
Rock-Vent Class A Installation Instructions(goes to new website)(opens in a new tab)
Watch How to install Rock-Vent chimney pipe(opens in a new tab).
