Selkirk SuperPro / SuperVent Tee and Tee Cap

Product Images

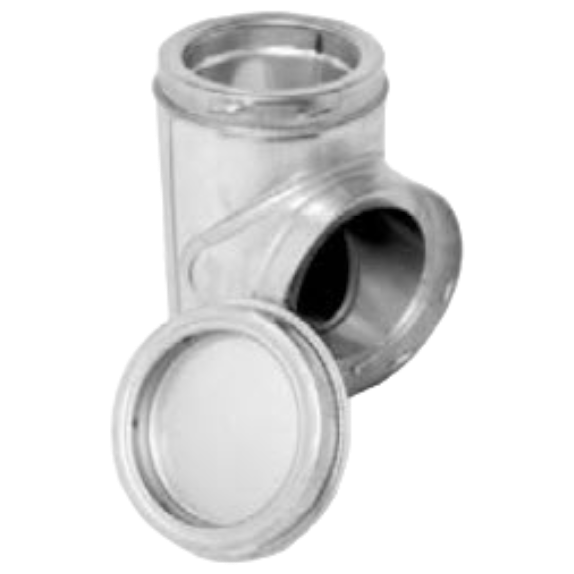

Selkirk SuperPro / SuperVent Tee and Tee Cap

Selkirk SuperPro / SuperVent Tee and Tee Cap

Description:
Use the Tee and Tee Cap for horizontal venting application when a pipe is passing through the wall and up...

Use the Tee and Tee Cap for horizontal venting application when a pipe is passing through the wall and up the side of the home. Removable tee cap is included.

As low as$488.72

Product Details

Help & Documents

The SuperPro / SuperVent Tee and Tee Cap is used for horizontal venting application when the pipe needs to pass through the wall and run up the side of the home. The Tee connection is what turns the pipe from horizontal to vertical. The Tee will need to be mounted to the SuperPro / SuperVent Tee Support which mounts to the side wall and supports the vertical weight of the chimney stack. A removable tee cap is included and will then get installed just under the tee support for easy access for maintenance and inspections. You will need a Wall Band above the Tee Connector & every 8 feet thereafter.

The horizontal snout of the tee will accept a section of SuperPro / SuperVent Tee Class A Chimney pipe to pass through the wall thimble.

SuperPro and SuperVent models are compatible with each other according to the manufacturer. The 6 in. & 8 in. diameters are the SuperPro model (compatible with SuperVent). The 7 in. diameter is the SuperVent model (compatible with SuperPro).

Measurement Chart:

Tee SuperPro

Selkirk SuperPro / SuperVent Tee and Tee Cap

Size 6" 7" 8"
A 8" 9" 10"
B 6" 7" 8"
C 11.5" 12.25" 13.375"
D 5.625" 6.125" 6.625"
E 5.75" 6 3/16" 6.5"


Product Details:

The SuperPro / SuperVent Tee and Tee Cap is used for horizontal venting application when the pipe needs to pass through the wall and run up the side of the home. The Tee connection is what turns the pipe from horizontal to vertical. The Tee will need to be mounted to the SuperPro / SuperVent Tee Support which mounts to the side wall and supports the vertical weight of the chimney stack. A removable tee cap is included and will then get installed just under the tee support for easy access for maintenance and inspections. You will need a Wall Band above the Tee Connector & every 8 feet thereafter.

The horizontal snout of the tee will accept a section of SuperPro / SuperVent Tee Class A Chimney pipe to pass through the wall thimble.

SuperPro and SuperVent models are compatible with each other according to the manufacturer. The 6 in. & 8 in. diameters are the SuperPro model (compatible with SuperVent). The 7 in. diameter is the SuperVent model (compatible with SuperPro).

Measurement Chart:

Tee SuperPro

Selkirk SuperPro / SuperVent Tee and Tee Cap

Size 6" 7" 8"
A 8" 9" 10"
B 6" 7" 8"
C 11.5" 12.25" 13.375"
D 5.625" 6.125" 6.625"
E 5.75" 6 3/16" 6.5"
