Flexible Chimney Liner Tee Dimensions
July 19, 2023
Our Flex Liner Tee Connectors feature the quick connect band clamp for a secure fit every time. If your installation is tight on space, we've included the chimney liner tee connector measurements below.
If you can't find a measurement, or aren't sure, give us a call! We'll be happy to assist you.

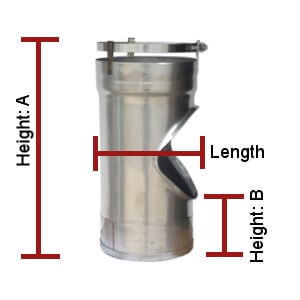

Rock-Flex Standard Tee Connector Dimensions
Standard Tee Size:
Length:
Height B:
Height A:
3"
3.25"
3.5"
10.5"
4"
4.25"
4"
11.5"
5"
5.25"
3.75"
13"
5.5"
6.25"
3.25"
13.5"
6"
6.25"
3.5"
13.5"
7"
7.25"
3.75"
14.5"
8"
8.25"
3.75"
15.5"
You can find Rock-Flex Chimney Liner Standard Tee Connectors on the following pages:
- Flexible Chimney Liner Standard Tee Connector w/ 10" Snout
- Flexible Chimney Liner Standard Tee Connector w/ 22" Snout
Rock-Flex Short Body Tee Connector Dimensions
Short Body Tee Size:
Length:
Height B:
Height A:
5"
5.25"
1"
10"
5.5"
6.25"
1"
11"
6"
6.25"
1"
11"
You can find Rock-Flex Chimney Liner Short Body Tee Connectors on the following pages:
- Flexible Chimney Liner Short Body Tee Connector w/ 10" Snout
- Flexible Chimney Liner Short Body Tee Connector w/ 22" Snout
